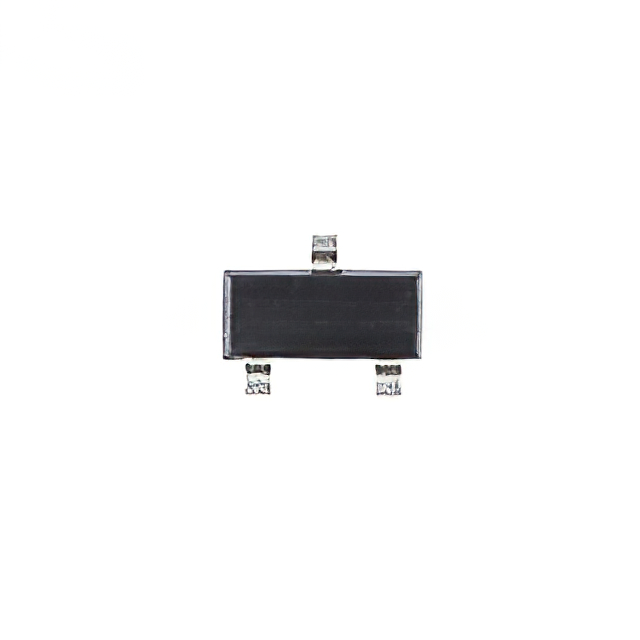

MAX809R

Active

UMW

2.63V LOWEFFECTIVE 1 SUPERVISOR

Search across all available documentation for this part.

Active

UMW

2.63V LOWEFFECTIVE 1 SUPERVISOR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Supervisor Push-Pull, Totem Pole 1 Channel SOT-23

Technical documentation and resources

Specification	MAX809R	MAX809 Series

Mounting Type	Surface Mount	Surface Mount
Number of Voltages Monitored	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output	Totem Pole, Push-Pull	Totem Pole, Push-Pull
Package / Case	SOT-23-3, TO-236-3, SC-59	SOT-23-3, TO-236-3, SC-59
Reset	Active Low	Active Low
Reset Timeout	150 ms	150 ms
Supplier Device Package	SOT-23	SOT-23
Type	Voltage Detector	Voltage Detector
Voltage - Threshold	2.63 V	2.63 - 3.08 V

Part	Supplier Device Package	Voltage - Threshold	Number of Voltages Monitored	Output	Reset Timeout	Package / Case	Type	Reset	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
UMW MAX809R	SOT-23	2.63 V	1	Push-Pull, Totem Pole	150 ms	SC-59, SOT-23-3, TO-236-3	Voltage Detector	Active Low	Surface Mount	85 °C	-40 °C
UMW MAX809T	SOT-23	3.08 V	1	Push-Pull, Totem Pole	150 ms	SC-59, SOT-23-3, TO-236-3	Voltage Detector	Active Low	Surface Mount	85 °C	-40 °C
