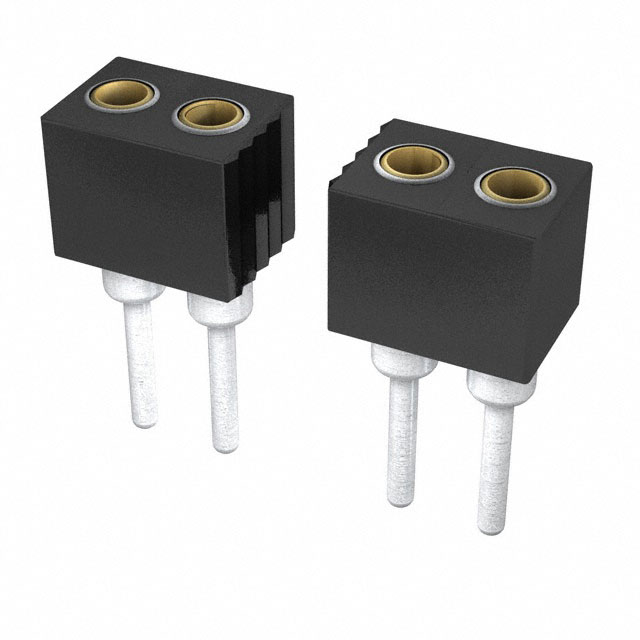

317-47-108-41-005000

Active

Mill-Max Manufacturing Corp.

CONN SOCKET SIP 8POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

317-47-108-41-005000

Active

Mill-Max Manufacturing Corp.

CONN SOCKET SIP 8POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	317-47-108-41-005000

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Current Rating (Amps)	3 A
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.07 in
Pitch - Mating	1.78 mm
Pitch - Post	0.07 in
Pitch - Post	1.78 mm
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	SIP

317-47 Series

Part	Mounting Type	Current Rating (Amps)	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Termination Post Length	Termination Post Length	Type	Contact Finish - Mating	Housing Material	Contact Finish - Post	Contact Finish Thickness - Mating	Termination	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Post	Pitch - Post	Contact Resistance	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Mating	Contact Material - Post	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 317-47-104-41-005000	Through Hole	3 A	4	1 x 4	3.18 mm	0.125 in	SIP	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	Flash	Solder	UL94 V-0	200 µin	5.08 µm	0.07 in	1.78 mm	10 mOhm	0.07 in	1.78 mm	-55 °C	125 °C	Beryllium Copper	Brass Alloy
Mill-Max Manufacturing Corp. 317-47-115-41-005000	Through Hole	3 A	15		3.18 mm	0.125 in	SIP	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	Flash	Solder	UL94 V-0	200 µin	5.08 µm	0.07 in	1.78 mm	10 mOhm	0.07 in	1.78 mm	-55 °C	125 °C	Beryllium Copper	Brass Alloy
Mill-Max Manufacturing Corp. 317-47-103-41-005000	Through Hole	3 A	3		3.18 mm	0.125 in	SIP	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	Flash	Solder	UL94 V-0	200 µin	5.08 µm	0.07 in	1.78 mm	10 mOhm	0.07 in	1.78 mm	-55 °C	125 °C	Beryllium Copper	Brass Alloy
Mill-Max Manufacturing Corp. 317-47-120-41-005000	Through Hole	3 A			3.18 mm	0.125 in	SIP	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	Flash	Solder	UL94 V-0	200 µin	5.08 µm	0.07 in	1.78 mm	10 mOhm	0.07 in	1.78 mm	-55 °C	125 °C	Beryllium Copper	Brass Alloy	20
Mill-Max Manufacturing Corp. 317-47-108-41-005000	Through Hole	3 A	8		3.18 mm	0.125 in	SIP	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	Flash	Solder		200 µin	5.08 µm	0.07 in	1.78 mm		0.07 in	1.78 mm	-55 °C	125 °C	Beryllium Copper	Brass Alloy
Mill-Max Manufacturing Corp. 317-47-105-41-005000	Through Hole	3 A	5		3.18 mm	0.125 in	SIP	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	Flash	Solder	UL94 V-0	200 µin	5.08 µm	0.07 in	1.78 mm	10 mOhm	0.07 in	1.78 mm	-55 °C	125 °C	Beryllium Copper	Brass Alloy
Mill-Max Manufacturing Corp. 317-47-112-41-005000	Through Hole	3 A	12	1 x 12	3.18 mm	0.125 in	SIP	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	Flash	Solder	UL94 V-0	200 µin	5.08 µm	0.07 in	1.78 mm	10 mOhm	0.07 in	1.78 mm	-55 °C	125 °C	Beryllium Copper	Brass Alloy
Mill-Max Manufacturing Corp. 317-47-107-41-005000	Through Hole	3 A	7		3.18 mm	0.125 in	SIP	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	Flash	Solder	UL94 V-0	200 µin	5.08 µm	0.07 in	1.78 mm	10 mOhm	0.07 in	1.78 mm	-55 °C	125 °C	Beryllium Copper	Brass Alloy
Mill-Max Manufacturing Corp. 317-47-118-41-005000	Through Hole	3 A		1 x 18	3.18 mm	0.125 in	SIP	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	Flash	Solder	UL94 V-0	200 µin	5.08 µm	0.07 in	1.78 mm	10 mOhm	0.07 in	1.78 mm	-55 °C	125 °C	Beryllium Copper	Brass Alloy		18

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.53
		10	$ 1.30
		35	$ 1.19
		70	$ 1.13
		105	$ 1.10
		280	$ 1.03
		525	$ 0.98
		1015	$ 0.94
		2520	$ 0.88

Description

General part information

317-47 Series

8 (1 x 8) Pos SIP Socket Gold Through Hole

Documents

Technical documentation and resources

No documents available
