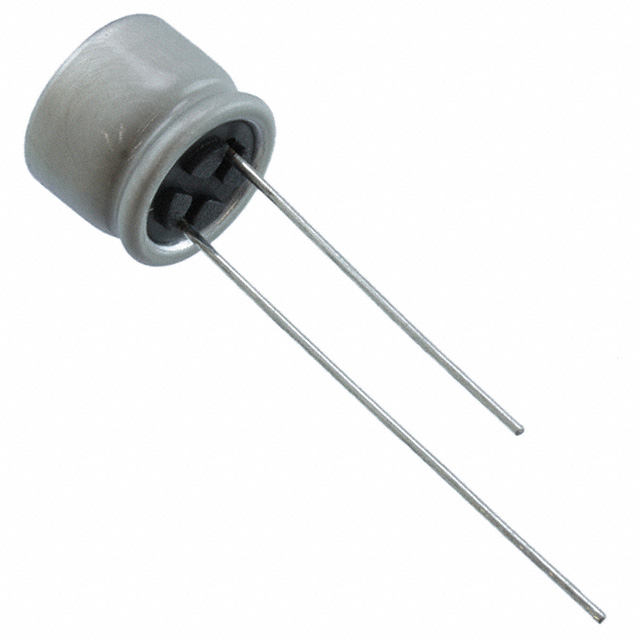

6SEP150M+TSS

NRND

CAP ALUM POLY 150UF 20% 6.3V TH

NRND

CAP ALUM POLY 150UF 20% 6.3V TH

Description

General part information

150 µF 6.3 V Aluminum - Polymer Capacitors Radial, Can 35mOhm 3000 Hrs @ 105°C

Parameters and characteristics for this part

Specification	6SEP150M+TSS

Applications	General Purpose
Capacitance	150 µF
ESR (Equivalent Series Resistance)	35 mOhm
Height - Seated (Max)	0.276 in
Lead Spacing	0.138 in
Lifetime	3000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	Can, Radial
Ripple Current	128 mA, 2.56 A
Size / Dimension Diameter	0.315 in
Tolerance	20 %
Type	Polymer
Voltage - Rated	6.3 V

Part	Tolerance	Mounting Type	Lead Spacing	Operating Temperature (Min)	Operating Temperature (Max)	Ripple Current	Height - Seated (Max)	ESR (Equivalent Series Resistance)	Applications	Voltage - Rated	Lifetime	Capacitance	Size / Dimension Diameter	Type	Package / Case
Panasonic Electronic Components 6SEP820M	20 %	Through Hole	0.197 in	-55 °C	105 °C	5.44 A 272 mA	0.512 in	12 mOhm	General Purpose	6.3 V	3000 Hrs	820 µF	0.394 in	Polymer	Can Radial
Panasonic Electronic Components 6SEP470M	20 %	Through Hole	0.138 in	-55 °C	105 °C	4.21 A 210.5 mA	0.472 in	15 mOhm	General Purpose	6.3 V	3000 Hrs	470 µF	0.315 in	Polymer	Can Radial
Panasonic Electronic Components 6SEP150M+TSS	20 %	Through Hole	0.138 in	-55 °C	105 °C	2.56 A 128 mA	0.276 in	35 mOhm	General Purpose	6.3 V	3000 Hrs	150 µF	0.315 in	Polymer	Can Radial
Panasonic Electronic Components 6SEP470M+TSS	20 %	Through Hole	0.138 in	-55 °C	105 °C	4.21 A 210.5 mA	0.472 in	15 mOhm	General Purpose	6.3 V	3000 Hrs	470 µF	0.315 in	Polymer	Can Radial
