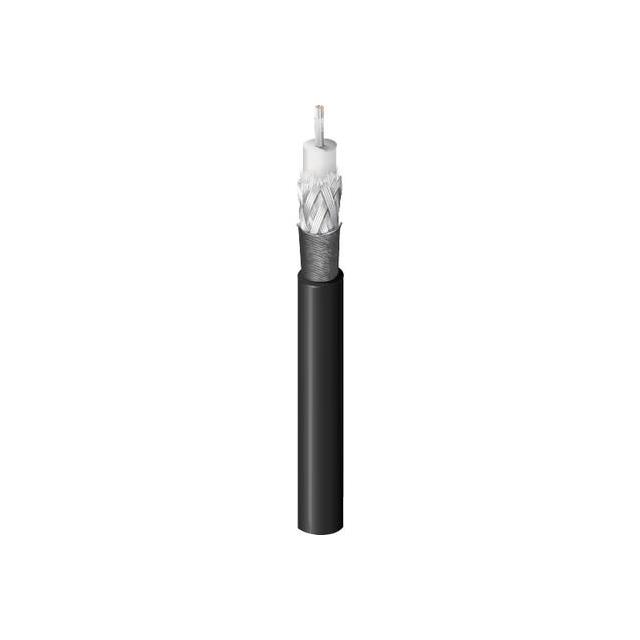

8410 010500

Active

Belden Inc.

#25 EPDM BRD EPDM

Search across all available documentation for this part.

Active

Belden Inc.

#25 EPDM BRD EPDM

Technical Specifications

Parameters and characteristics for this part

Specification	8410 010500

Cable Type	Coaxial
Conductor Material	Copper, Tinned, Steel, Copper Covered, Tin Coated
Conductor Strand [custom]	7
Conductor Strand [custom]	33 AWG
Dielectric Diameter [diameter]	3.91 mm
Dielectric Diameter [diameter]	0.154 in
Dielectric Material	Ethylene Propylene Terpolymer Rubber (EPDM)
Impedance	52 Ohms
Jacket (Insulation) Diameter [diameter]	6.22 mm
Jacket (Insulation) Diameter [diameter]	0.245 in
Jacket (Insulation) Material	Ethylene Propylene Terpolymer Rubber (EPDM)
Jacket Color	Black
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Shield Coverage	80 %
Shield Material	Copper, Tinned, Rayon®
Shield Type	Double Braid
Usage	Audio
Wire Gauge	25 AWG

Part	Dielectric Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Length	Length	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Cable Type	Impedance	Jacket (Insulation) Material	Wire Gauge	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Shield Type
Belden Inc. 8410 010500	Ethylene Propylene Terpolymer Rubber (EPDM)	3.91 mm	0.154 in	152.4 m	6000 in	Black	-30 ░C	60 °C	80 %	Coaxial	52 Ohms	Ethylene Propylene Terpolymer Rubber (EPDM)	25 AWG	Copper Tinned Steel Copper Covered Tin Coated	7	33 AWG	Copper Tinned Rayon®	6.22 mm	0.245 in	Audio	Double Braid

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial Cable 25 AWG 500.0' (152.40m) 52 Ohms
