A97002-037

Active

Omnetics

MICRO-D 37POS BACKSHELL KIT R/A

Search across all available documentation for this part.

Active

Omnetics

MICRO-D 37POS BACKSHELL KIT R/A

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Number of Positions	Compatible Shell Size	Accessory Type	Cable Exit	Cable Type	Material	Plating	Features	Primary Material	Compatible D-Sub Size	Color
Omnetics A97002-037	Shielded	37	C	One Piece Backshell	90 °	Flat	Aluminum Alloy	Electroless Nickel	Mating Screws 2-56	Metal	37pos HD62pos	Silver
Omnetics A97002-025	Shielded		B	One Piece Backshell	90 °	Flat	Aluminum Alloy	Electroless Nickel	Mating Screws 2-56	Metal	25pos HD44pos	Silver
Omnetics A97002-513	Shielded	51		One Piece Backshell	90 °	Flat	Aluminum Alloy	Electroless Nickel	Mating Screws 2-56	Metal		Silver
Omnetics A97002-021	Shielded	21		One Piece Backshell	90 °	Flat	Aluminum Alloy	Electroless Nickel	Mating Screws 2-56	Metal		Silver
Omnetics A97002-031	Shielded	31		One Piece Backshell	90 °	Flat	Aluminum Alloy	Electroless Nickel	Mating Screws 2-56	Metal		Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

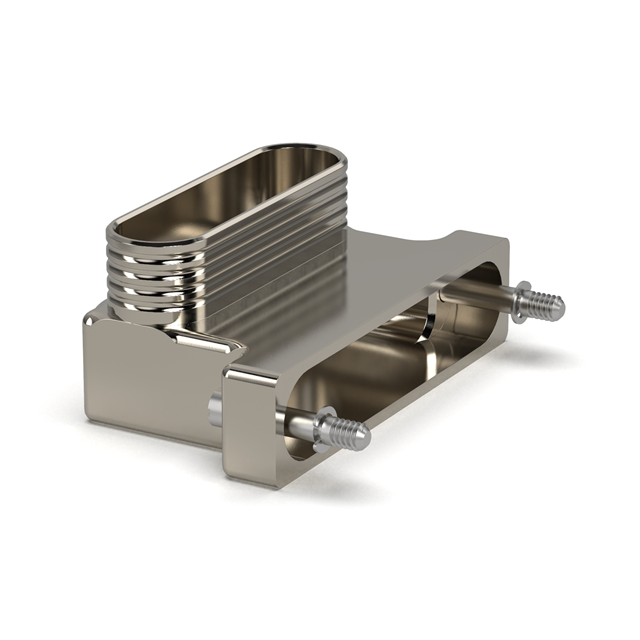

37 Position One Piece Backshell Connector Silver 90° Shielded

Technical documentation and resources

No documents available
