B-36-1

Active

Pomona Electronics

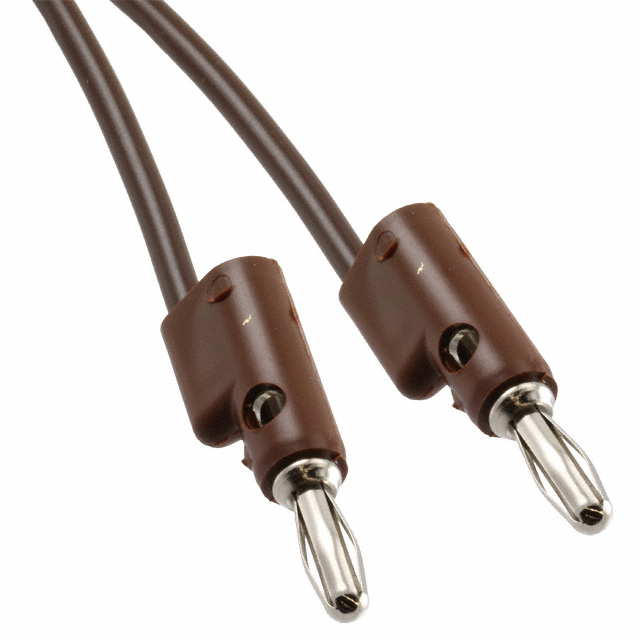

TEST LEAD BANANA TO BANANA 36"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

B-36-1

Active

Pomona Electronics

TEST LEAD BANANA TO BANANA 36"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	B-36-1

1st Connector	Single, Stackable, Banana Plug
2nd Connector	Banana Plug, Single, Stackable
Cable Length	36 in
Cable Length	914.4 mm
Configuration	Banana to Banana
Contents	Brown
Contents	1 Cable
Current Rating (Amps)	15 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Stacking Method	Multi-Stacking, Front and Vertical
Type	Patch Cord
Voltage - Rated	5 kV
Voltage - Rated	5 kV
Wire Gauge	18 AWG

B-36 Series

Part	Type	Contents [custom]	Contents	Configuration	Material - Insulation	Wire Gauge	Current Rating (Amps)	Stacking Method	Cable Length	Cable Length	2nd Connector	Voltage - Rated	Voltage - Rated	1st Connector	Contents	Contents [custom]
Pomona Electronics B-36-2#	Patch Cord	1	Red	Banana to Banana	Poly-Vinyl Chloride (PVC)	18 AWG	15 A	Multi-Stacking Front and Vertical	36 in	914.4 mm	Banana Plug Single Stackable	5 kV	5 kV	Banana Plug Single Stackable
Pomona Electronics B-36-1	Patch Cord		Brown	Banana to Banana	Poly-Vinyl Chloride (PVC)	18 AWG	15 A	Multi-Stacking Front and Vertical	36 in	914.4 mm	Banana Plug Single Stackable	5 kV	5 kV	Banana Plug Single Stackable	1 Cable
Pomona Electronics B-36-8	Patch Cord		Gray	Banana to Banana	Poly-Vinyl Chloride (PVC)	18 AWG	15 A	Multi-Stacking Front and Vertical	36 in	914.4 mm	Banana Plug Single Stackable	5 kV	5 kV	Banana Plug Single Stackable		1
Pomona Electronics B-36-7	Patch Cord		1 Lead Violet	Banana to Banana	Poly-Vinyl Chloride (PVC)	18 AWG	15 A	Multi-Stacking Front and Vertical	36 in	914.4 mm	Banana Plug Single Stackable	5 kV	5 kV	Banana Plug Single Stackable
Pomona Electronics B-36-9	Patch Cord		1 Lead White	Banana to Banana	Poly-Vinyl Chloride (PVC)	18 AWG	15 A	Multi-Stacking Front and Vertical	36 in	914.4 mm	Banana Plug Single Stackable	5 kV	5 kV	Banana Plug Single Stackable
Pomona Electronics B-36-5	Patch Cord			Banana to Banana	Poly-Vinyl Chloride (PVC)	18 AWG	15 A	Multi-Stacking Front and Vertical	36 in	914.4 mm	Banana Plug Single Stackable	5 kV	5 kV	Banana Plug Single Stackable
Pomona Electronics B-36-0#	Patch Cord		1 Lead Black	Banana to Banana	Poly-Vinyl Chloride (PVC)	18 AWG	15 A	Multi-Stacking Front and Vertical	36 in	914.4 mm	Banana Plug Single Stackable	5 kV	5 kV	Banana Plug Single Stackable
Pomona Electronics B-36-0	Patch Cord		1 Lead Black	Banana to Banana	Poly-Vinyl Chloride (PVC)	18 AWG	15 A	Multi-Stacking Front and Vertical	36 in	914.4 mm	Banana Plug Single Stackable	5 kV	5 kV	Banana Plug Single Stackable
Pomona Electronics B-36-3	Patch Cord		1 Lead Orange	Banana to Banana	Poly-Vinyl Chloride (PVC)	18 AWG	15 A	Multi-Stacking Front and Vertical	36 in	914.4 mm	Banana Plug Single Stackable	5 kV	5 kV	Banana Plug Single Stackable
Pomona Electronics B-36-6	Patch Cord		1 Lead Blue	Banana to Banana	Poly-Vinyl Chloride (PVC)	18 AWG	15 A	Multi-Stacking Front and Vertical	36 in	914.4 mm	Banana Plug Single Stackable	5 kV	5 kV	Banana Plug Single Stackable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.99
		25	$ 6.79

Description

General part information

B-36 Series

36.0" (914.40mm) Banana Plug, Single, Stackable To Banana Plug, Single, Stackable Patch Cord 5000VDC (5kV)
