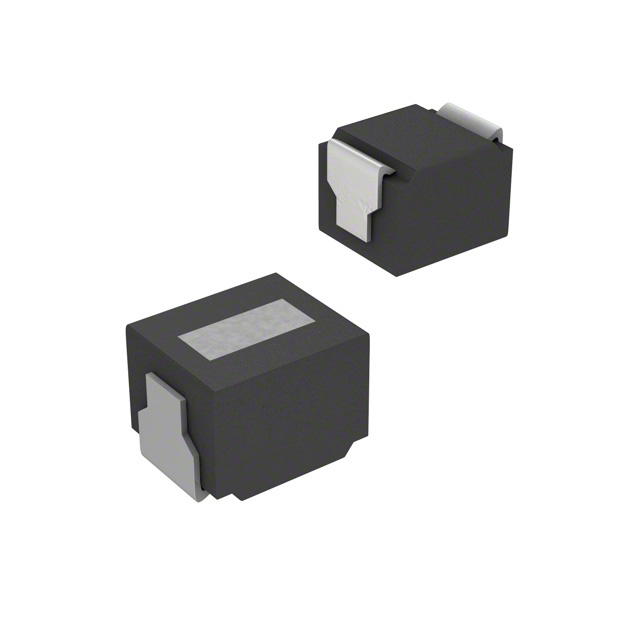

CM322522-180JL

Active

Bourns Inc.

FIXED IND 18UH 110MA 3.3 OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CM322522-180JL

Active

Bourns Inc.

FIXED IND 18UH 110MA 3.3 OHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CM322522-180JL

Current Rating (Amps)	110 mA
DC Resistance (DCR) [Max]	3.3 Ohm
Frequency - Self Resonant	27 MHz
Height - Seated (Max) [Max] [z]	0.087 in
Height - Seated (Max) [Max] [z]	2.2 mm
Inductance	18 µH
Inductance Frequency - Test	2.52 MHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	2.52 MHz, 30
Shielding	Unshielded
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	2.5 mm
Size / Dimension [y]	0.098 in
Tolerance	5 %
Type	Wirewound, Drum Core

CM322522 Series

Part	Current Rating (Amps)	Inductance	Type	Mounting Type	Tolerance	Q @ Freq	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Frequency - Self Resonant	Inductance Frequency - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Material - Core	DC Resistance (DCR) [Max]	Package / Case	DC Resistance (DCR)
Bourns Inc. CM322522-1R5JL	0.21 A	1.5 µH	Drum Core Wirewound	Surface Mount	5 %	7.96 MHz 30	3.2 mm	2.5 mm	0.126 in	0.098 in	125 °C	-40 °C	Unshielded	90 MHz	7.96 MHz	0.087 in	2.2 mm	Ferrite	750 mOhm	Nonstandard
Bourns Inc. CM322522-151JL	50 mA	150 µH	Drum Core Wirewound	Surface Mount	5 %	20 796 kHz	3.2 mm	2.5 mm	0.126 in	0.098 in	125 °C	-40 °C	Unshielded	8 MHz	796 kHz	0.087 in	2.2 mm	Ferrite		Nonstandard	15 Ohm
Bourns Inc. CM322522-5R6JL	160 mA	5.6 µH	Drum Core Wirewound	Surface Mount	5 %	7.96 MHz 30	3.2 mm	2.5 mm	0.126 in	0.098 in	125 °C	-40 °C	Unshielded	50 MHz	7.96 MHz	0.087 in	2.2 mm	Ferrite	1.6 Ohm	Nonstandard
Bourns Inc. CM322522-R82KL	0.245 A	820 nH	Drum Core Wirewound	Surface Mount	10 %	25 25.2 MHz	3.2 mm	2.5 mm	0.126 in	0.098 in	125 °C	-40 °C	Unshielded	125 MHz	25.2 MHz	0.087 in	2.2 mm	Ferrite	610 mOhm	Nonstandard
Bourns Inc. CM322522-R10ML	360 mA	100 nH	Drum Core Wirewound	Surface Mount	20 %	10 100 MHz	3.2 mm	2.5 mm	0.126 in	0.098 in	125 °C	-40 °C	Unshielded	450 MHz	100 MHz	0.087 in	2.2 mm	Ferrite	300 mOhm	Nonstandard
Bourns Inc. CM322522-151KL	50 mA	150 µH	Drum Core Wirewound	Surface Mount	10 %	20 796 kHz	3.2 mm	2.5 mm	0.126 in	0.098 in	125 °C	-40 °C	Unshielded	8 MHz	796 kHz	0.087 in	2.2 mm	Ferrite		Nonstandard	15 Ohm
Bourns Inc. CM322522-820JL	60 mA	82 µH	Drum Core Wirewound	Surface Mount	5 %	2.52 MHz 30	3.2 mm	2.5 mm	0.126 in	0.098 in	125 °C	-40 °C	Unshielded	11 MHz	2.52 MHz	0.087 in	2.2 mm	Ferrite	10 Ohm	Nonstandard
Bourns Inc. CM322522-560JL	70 mA	56 µH	Drum Core Wirewound	Surface Mount	5 %	2.52 MHz 30	3.2 mm	2.5 mm	0.126 in	0.098 in	125 °C	-40 °C	Unshielded	15 MHz	2.52 MHz	0.087 in	2.2 mm	Ferrite	8 Ohm	Nonstandard
Bourns Inc. CM322522-180JL	110 mA	18 µH	Drum Core Wirewound	Surface Mount	5 %	2.52 MHz 30	3.2 mm	2.5 mm	0.126 in	0.098 in	125 °C	-40 °C	Unshielded	27 MHz	2.52 MHz	0.087 in	2.2 mm	Ferrite	3.3 Ohm	Nonstandard
Bourns Inc. CM322522-R18ML	0.22 A	180 nH	Drum Core Wirewound	Surface Mount	20 %	10 25.2 MHz	3.2 mm	2.5 mm	0.126 in	0.098 in	125 °C	-40 °C	Unshielded	320 MHz	25.2 MHz	0.087 in	2.2 mm	Ferrite	810 mOhm	Nonstandard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.10

Description

General part information

CM322522 Series

18 µH Unshielded Drum Core, Wirewound Inductor 110 mA 3.3Ohm Max Nonstandard
