HQCD-090-06.00-TED-SED-1-B

Active

Samtec Inc.

CBL ASSM M-F 180POS 6" HDR

Search across all available documentation for this part.

Active

Samtec Inc.

CBL ASSM M-F 180POS 6" HDR

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Contact Finish	Length [x]	Length [x]	Pitch - Cable	Pitch - Cable	Number of Positions	Number of Rows	Connector Type	Pitch - Connector	Pitch - Connector	Color	Cable Termination	Length	Length	Length	Length
Samtec Inc. HQCD-090-40.00-TTR-TTR-1-F	Shielded	Gold	1.02 m	3.33 '	0.01 in	0.25 mm	180	2	Plug to Plug	0.02 in	0.5 mm	Blue Ribbon	IDC
Samtec Inc. HQCD-090-06.00-TEU-SEU-1	Shielded	Gold			0.01 in	0.25 mm	180	2	Card Edge to Card Edge	0.02 in	0.5 mm	Blue Ribbon	IDC	152.4 mm	6 "	0.5 '
Samtec Inc. HQCD-090-40.00-TED-SED-1	Shielded	Gold	1.02 m	3.33 '	0.01 in	0.25 mm	180	2	Card Edge to Card Edge	0.02 in	0.5 mm	Blue Ribbon	IDC
Samtec Inc. HQCD-090-12.00-TED-SED-1	Shielded	Gold			0.01 in	0.25 mm	180	2	Card Edge to Card Edge	0.02 in	0.5 mm	Blue Ribbon	IDC	304.8 mm			1 ft
Samtec Inc. HQCD-090-06.00-TED-SED-1-B	Shielded	Gold			0.01 in	0.25 mm	180	2	Card Edge to Card Edge	0.02 in	0.5 mm	Blue Ribbon	IDC	152.4 mm	6 "	0.5 '
Samtec Inc. HQCD-090-06.00-TEU-SEU-1-B	Shielded	Gold			0.01 in	0.25 mm	180	2	Card Edge to Card Edge	0.02 in	0.5 mm	Blue Ribbon	IDC	152.4 mm	6 "	0.5 '
Samtec Inc. HQCD-090-06.00-TED-SED-1	Shielded	Gold			0.01 in	0.25 mm	180	2	Card Edge to Card Edge	0.02 in	0.5 mm	Blue Ribbon	IDC	152.4 mm	6 "	0.5 '
Samtec Inc. HQCD-090-40.00-TEU-SEU-1-B	Shielded	Gold	1.02 m	3.33 '	0.01 in	0.25 mm	180	2	Card Edge to Card Edge	0.02 in	0.5 mm	Blue Ribbon	IDC
Samtec Inc. HQCD-090-24.00-TEU-SEU-1-B	Shielded	Gold	609.6 mm	2 '	0.01 in	0.25 mm	180	2	Card Edge to Card Edge	0.02 in	0.5 mm	Blue Ribbon	IDC
Samtec Inc. HQCD-090-12.00-TED-SED-1-B	Shielded	Gold			0.01 in	0.25 mm	180	2	Card Edge to Card Edge	0.02 in	0.5 mm	Blue Ribbon	IDC	304.8 mm			1 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 126.87

General part information

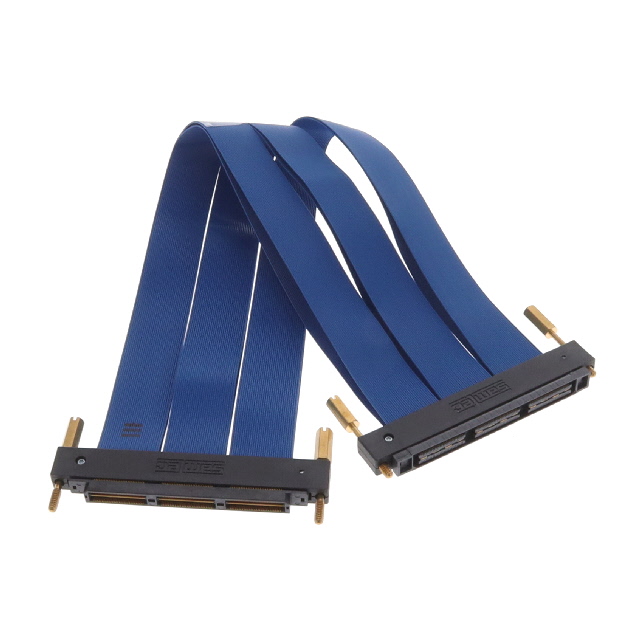

180 Position Cable Assembly Rectangular Card Edge to Card Edge 0.500' (152.40mm, 6.00")
