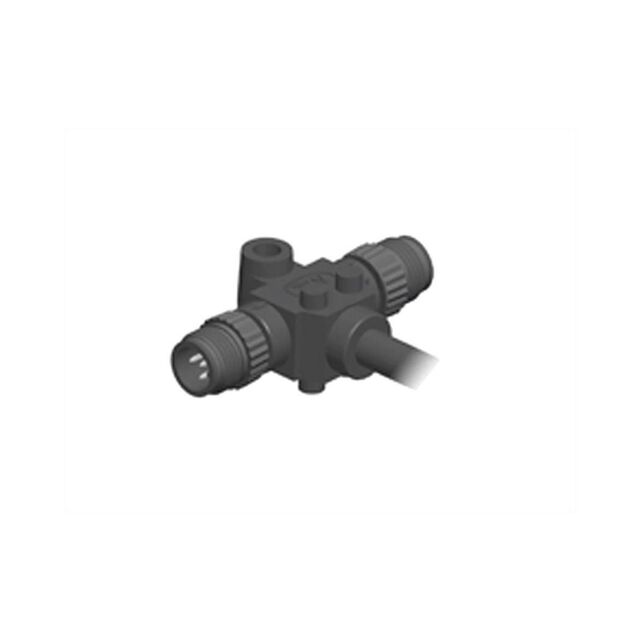

PC-050500-MM0-TSB01

Active

Amphenol LTW

NMEA 2000, T CABLE, PLASTIC, 4A, 05 PINS, SCREW THREAD, (END 1) MALE MALE, (END 2) MALE MALE, LENGTH 1000MM, IP68 ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PC-050500-MM0-TSB01

Active

Amphenol LTW

NMEA 2000, T CABLE, PLASTIC, 4A, 05 PINS, SCREW THREAD, (END 1) MALE MALE, (END 2) MALE MALE, LENGTH 1000MM, IP68 ROHS COMPLIANT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PC-050500-MM0-TSB01

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle, Right Angle (2)
2nd Connector Type	Wire Leads
Assembly Configuration	T-Adapter on One End
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof; NMEA 2000
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Shielded
Usage	Industrial Environments

PC-050500 Series

Part	Shielding	1st Connector Type	Assembly Configuration	1st Connector Number of Positions Loaded	Usage	2nd Connector Type	Color	Ingress Protection	1st Connector Mounting Type	Length [x]	Length [x]	1st Connector Number of Positions	1st Connector Gender	1st Connector Orientation [custom]	Cable Material	Cable Type	1st Connector Shell Size - Insert
Amphenol LTW PC-050500-FM0-TSB02	Shielded	Plug Right Angle Receptacle Right Angle	T-Adapter on One End	All	Industrial Environments	Wire Leads	Black	IP68 - Dust Tight Waterproof; NMEA 2000	Free Hanging (In-Line)	2 m	6.56 ft	5	Female Sockets Male Pins	Keyed	Polyvinyl Chloride (PVC)	Round	M12
Amphenol LTW PC-050500-FF0-TSB10	Shielded	Plug Right Angle (2)	T-Adapter on One End	All	Industrial Environments	Wire Leads	Black	IP68 - Dust Tight Waterproof; NMEA 2000	Free Hanging (In-Line)			5	Female Sockets	Keyed	Polyvinyl Chloride (PVC)	Round	M12
Amphenol LTW PC-050500-MM0-TSB10	Shielded	Receptacle Right Angle (2)	T-Adapter on One End	All	Industrial Environments	Wire Leads	Black	IP68 - Dust Tight Waterproof; NMEA 2000	Free Hanging (In-Line)			5	Male Pins	Keyed	Polyvinyl Chloride (PVC)	Round	M12
Amphenol LTW PC-050500-MM0-TSB01	Shielded	Receptacle Right Angle (2)	T-Adapter on One End	All	Industrial Environments	Wire Leads	Black	IP68 - Dust Tight Waterproof; NMEA 2000	Free Hanging (In-Line)	1 m	3.28 ft	5	Male Pins	Keyed	Polyvinyl Chloride (PVC)	Round	M12
Amphenol LTW PC-050500-FF0-TSB02	Shielded	Plug Right Angle (2)	T-Adapter on One End	All	Industrial Environments	Wire Leads	Black	IP68 - Dust Tight Waterproof; NMEA 2000	Free Hanging (In-Line)	2 m	6.56 ft	5	Female Sockets	Keyed	Polyvinyl Chloride (PVC)	Round	M12
Amphenol LTW PC-050500-FM0-TSB01	Shielded	Plug Right Angle Receptacle Right Angle	T-Adapter on One End	All	Industrial Environments	Wire Leads	Black	IP68 - Dust Tight Waterproof; NMEA 2000	Free Hanging (In-Line)	1 m	3.28 ft	5	Female Sockets Male Pins	Keyed	Polyvinyl Chloride (PVC)	Round	M12
Amphenol LTW PC-050500-FF0-TSB05	Shielded	Plug Right Angle (2)	T-Adapter on One End	All	Industrial Environments	Wire Leads	Black	IP68 - Dust Tight Waterproof; NMEA 2000	Free Hanging (In-Line)			5	Female Sockets	Keyed	Polyvinyl Chloride (PVC)	Round	M12

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.57
		10	$ 17.83
		30	$ 15.28
		50	$ 14.74
		100	$ 14.70
		250	$ 13.16
		500	$ 12.53
Newark	Each	10	$ 16.92
		25	$ 15.53
		50	$ 13.87
		100	$ 12.76
		250	$ 12.39

Description

General part information

PC-050500 Series

Circular Cable Assembly Shielded 3.28' (1.00m)
