Q-2101K000R.75M

Active

Amphenol Custom Cable

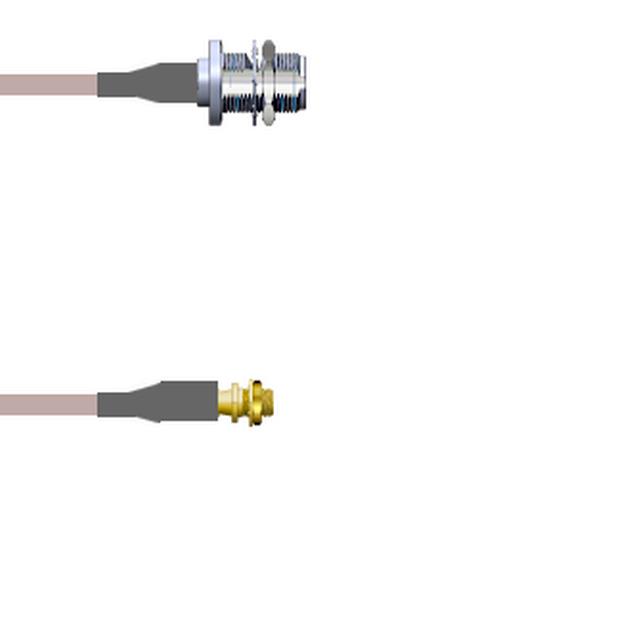

CBL ASSY MMCX-NTYPE JK-JK 29.53"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2101K000R.75M

Active

Amphenol Custom Cable

CBL ASSY MMCX-NTYPE JK-JK 29.53"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2101K000R.75M

1st Connector	MMCX Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	MMCX to N-Type

Q-2101K0 Series

Part	Overall Impedance	Cable Type	2nd Connector Mounting Type	Features	Style	Frequency - Max [Max]	2nd Connector Mounting Feature	1st Connector Mounting Type	2nd Contact Gender	Color	2nd Connector	Length	Length	1st Contact Gender	1st Connector Mounting Feature	1st Connector	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-2101K000R012i	50 Ohms	RG-316 DB	Panel Mount	Shielded	MMCX to N-Type	6000 MHz	Bulkhead - Front Side Nut	Panel Mount	Female	Copper	N-Type Jack	12 "	304.8 mm	Female	Bulkhead - Front Side Nut	MMCX Jack
Amphenol Custom Cable Q-2101K000R1.5M	50 Ohms	RG-316 DB	Panel Mount	Shielded	MMCX to N-Type	6000 MHz	Bulkhead - Front Side Nut	Panel Mount	Female	Copper	N-Type Jack	59.1 in	1.5 m	Female	Bulkhead - Front Side Nut	MMCX Jack	4.9 ft
Amphenol Custom Cable Q-2101K000R024i	50 Ohms	RG-316 DB	Panel Mount	Shielded	MMCX to N-Type	6000 MHz	Bulkhead - Front Side Nut	Panel Mount	Female	Copper	N-Type Jack	24 "	609.6 mm	Female	Bulkhead - Front Side Nut	MMCX Jack
Amphenol Custom Cable Q-2101K000R.25M	50 Ohms	RG-316 DB	Panel Mount	Shielded	MMCX to N-Type	6000 MHz	Bulkhead - Front Side Nut	Panel Mount	Female	Copper	N-Type Jack			Female	Bulkhead - Front Side Nut	MMCX Jack		9.843 "	250 mm
Amphenol Custom Cable Q-2101K000R002M	50 Ohms	RG-316 DB	Panel Mount	Shielded	MMCX to N-Type	6000 MHz	Bulkhead - Front Side Nut	Panel Mount	Female	Copper	N-Type Jack	78.7 in	2 m	Female	Bulkhead - Front Side Nut	MMCX Jack	6.6 ft
Amphenol Custom Cable Q-2101K000R072i	50 Ohms	RG-316 DB	Panel Mount	Shielded	MMCX to N-Type	6000 MHz	Bulkhead - Front Side Nut	Panel Mount	Female	Copper	N-Type Jack	72 in	1.8 m	Female	Bulkhead - Front Side Nut	MMCX Jack	6 ft
Amphenol Custom Cable Q-2101K000R009i	50 Ohms	RG-316 DB	Panel Mount	Shielded	MMCX to N-Type	6000 MHz	Bulkhead - Front Side Nut	Panel Mount	Female	Copper	N-Type Jack	9 "	228.6 mm	Female	Bulkhead - Front Side Nut	MMCX Jack
Amphenol Custom Cable Q-2101K000R.75M	50 Ohms	RG-316 DB	Panel Mount	Shielded	MMCX to N-Type	6000 MHz	Bulkhead - Front Side Nut	Panel Mount	Female	Copper	N-Type Jack	29.53 "	750 mm	Female	Bulkhead - Front Side Nut	MMCX Jack
Amphenol Custom Cable Q-2101K000R006i	50 Ohms	RG-316 DB	Panel Mount	Shielded	MMCX to N-Type	6000 MHz	Bulkhead - Front Side Nut	Panel Mount	Female	Copper	N-Type Jack	6 in	152.4 mm	Female	Bulkhead - Front Side Nut	MMCX Jack
Amphenol Custom Cable Q-2101K000R0.5M	50 Ohms	RG-316 DB	Panel Mount	Shielded	MMCX to N-Type	6000 MHz	Bulkhead - Front Side Nut	Panel Mount	Female	Copper	N-Type Jack	19.69 "	50 cm	Female	Bulkhead - Front Side Nut	MMCX Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 200.38
		25	$ 196.45
		50	$ 192.52
		100	$ 188.60
		250	$ 184.67

Description

General part information

Q-2101K0 Series

Cable Assembly Coaxial MMCX to N-Type RG-316 DB 29.53" (750.00mm)

Documents

Technical documentation and resources

No documents available
