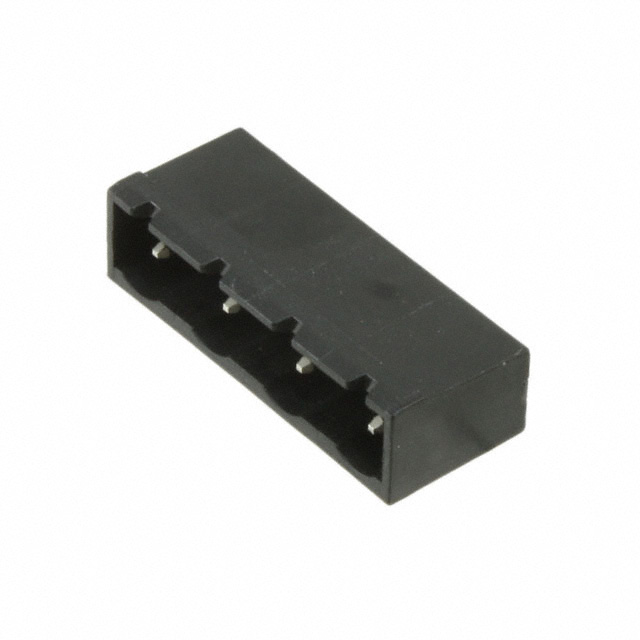

ELFH04410

Active

AMPHENOL PCD

TERM BLOCK HDR 4POS 90DEG 7.62MM

Search across all available documentation for this part.

Active

AMPHENOL PCD

TERM BLOCK HDR 4POS 90DEG 7.62MM

Technical Specifications

Parameters and characteristics for this part

Specification	ELFH04410

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	3.94 mm
Contact Tail Length	0.155 in
Header Orientation	90°, Right Angle
Insulation Height	8.1 mm
Insulation Height	0.319 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	4
Operating Temperature	105 C
Pitch [x]	0.3 in
Pitch [x]	7.62 mm
Positions Per Level	4
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

Part	Voltage - UL	Material Flammability Rating	Positions Per Level	Header Orientation	Mounting Type	Contact Material	Insulation Height	Insulation Height	Number of Positions	Color	Number of Levels	Pitch [x]	Pitch [x]	Type	Termination Style	Contact Mating Finish	Operating Temperature	Contact Tail Length	Contact Tail Length
AMPHENOL PCD ELFH04410	300 V	UL94 V-0	4	90° Right Angle	Through Hole	Brass	8.1 mm	0.319 in	4	Black	1	0.3 in	7.62 mm	Header Male Pins Shrouded (4 Side)	Solder	Tin	105 C	3.94 mm	0.155 in
AMPHENOL PCD ELFH0445GE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 0.94

General part information

4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.300" (7.62mm) 90°, Right Angle Through Hole
