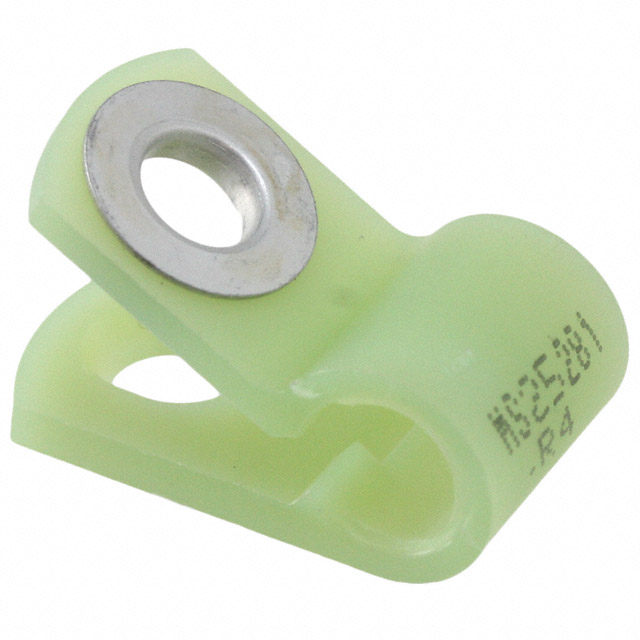

NM-4-R4
ActiveEssentra Access Solutions
CBL CLAMP P-TYPE GREEN FASTENER
Deep-Dive with AI
Search across all available documentation for this part.
NM-4-R4
ActiveEssentra Access Solutions
CBL CLAMP P-TYPE GREEN FASTENER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NM-4-R4 |
|---|---|
| Bundle Center to Mounting Center | 0.51 in |
| Bundle Center to Mounting Center | 12.95 mm |
| Color | Green |
| Features | Eyelet, Heat Stabilized |
| Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-2 |
| Material Thickness | 0.057 in |
| Material Thickness | 1.45 mm |
| Mounting Type | Fastener |
| Opening Size | 6.35 mm |
| Opening Size [diameter] | 0.25 in |
| Panel Hole Size [diameter] | 5.23 mm |
| Panel Hole Size [diameter] | 0.206 in |
| Screw Size | M5 |
| Screw Size | #10 |
| Type | Clamp, P-Type |
| Type Attributes | Ribbed |
| Width [y] | 12.78 mm |
| Width [y] | 0.503 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.87 | |
| 10 | $ 1.63 | |||
| 25 | $ 1.56 | |||
| 50 | $ 1.52 | |||
| 100 | $ 1.45 | |||
| 250 | $ 1.31 | |||
| 500 | $ 1.21 | |||
| 1000 | $ 1.04 | |||
| 2500 | $ 0.97 | |||
Description
General part information
NM-4 Series
Cable Clamp, P-Type Green Fastener 0.250" (6.35mm)
