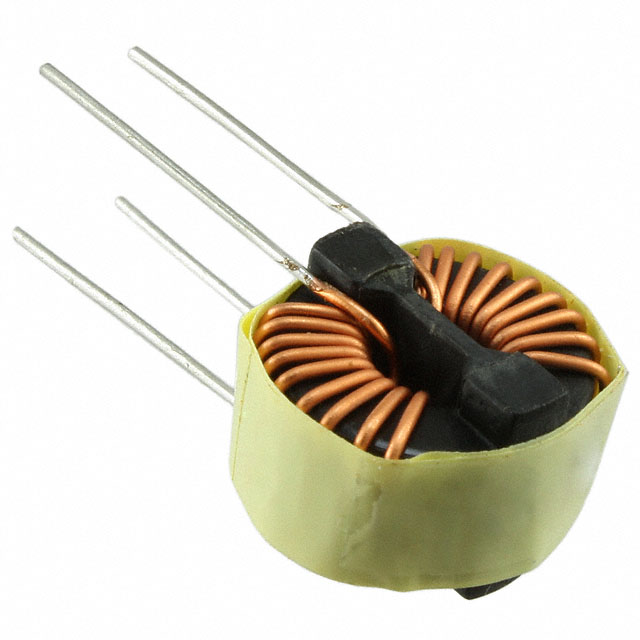

7111-RC
ActiveBourns Inc.
CMC 850UH 3A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7111-RC
ActiveBourns Inc.
CMC 850UH 3A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7111-RC |
|---|---|
| Current Rating (Max) [Max] | 3 A |
| DC Resistance (DCR) (Max) [Max] | 30 mOhm |
| Height (Max) | 17.78 mm |
| Height (Max) [Max] | 0.7 in |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | No Base, Vertical, 4 PC Pin |
| Size / Dimension [diameter] | 0.7 in, 17.78 mm |
| Size / Dimension [y] | 0.55 ", 13.97 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.60 | |
| 10 | $ 3.85 | |||
| 25 | $ 3.51 | |||
| 50 | $ 3.01 | |||
| 143 | $ 2.76 | |||
| 286 | $ 2.68 | |||
| 572 | $ 2.59 | |||
| 1001 | $ 2.42 | |||
| 2574 | $ 2.34 | |||
Description
General part information
7111 Series
850 µH @ 1 kHz 2 Line Common Mode Choke Through Hole 3A DCR 30mOhm
Documents
Technical documentation and resources
