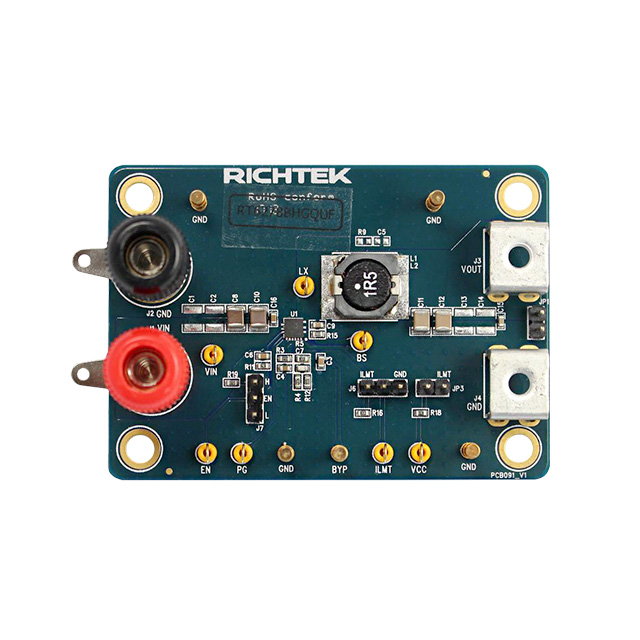

EVB_RT6278BHGQUF

Active

Richtek USA Inc.

EVAL MODULE FOR RT6278BHGQUF

Search across all available documentation for this part.

Active

Richtek USA Inc.

EVAL MODULE FOR RT6278BHGQUF

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output	Supplied Contents	Main Purpose	Voltage - Input [Max]	Voltage - Input [Min]	Board Type	Outputs and Type	Outputs and Type	Voltage - Output [Max]	Voltage - Output [Min]	Frequency - Switching	Utilized IC / Part	Regulator Topology	Output Type	Voltage - Input (Min) [Min]	Output Configuration	Topology	Voltage - Output (Min/Fixed)	Synchronous Rectifier	Number of Outputs	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Package / Case	Voltage - Output (Max) [Max]	Voltage - Input (Max) [Max]	Function
Richtek USA Inc. EVB_RT6278BHGQUF	8 A	Board(s)	DC/DC Step Down	23 V	4.5 V	Fully Populated	Non-Isolated	1	5.1 V	0.6 V	500 kHz	RT6278B	Buck
Richtek USA Inc. RT6278BHGQUF	8 A										500 kHz			Adjustable	4.5 V	Positive	Buck	0.6 V		1	Surface Mount	85 °C	-40 °C	12-UQFN-HL	12-UFQFN	5.1 V	23 V	Step-Down

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.90

General part information

RT6278B ACOT® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
