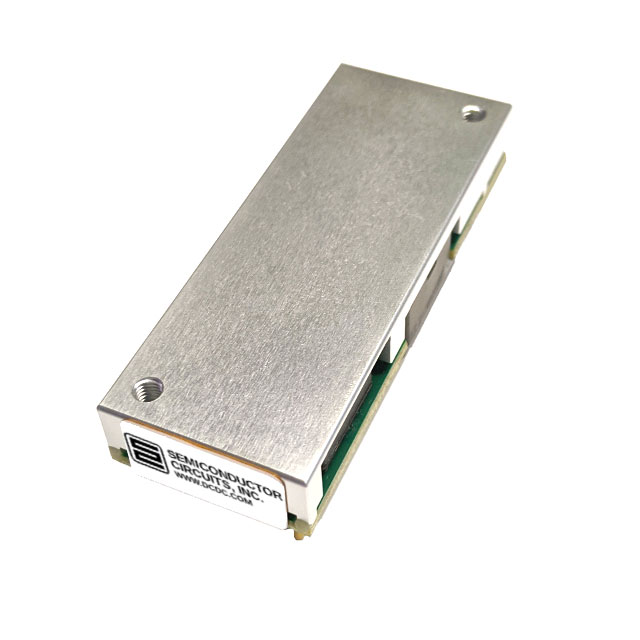

CPE14B24NB

Active

Semiconductor Circuits, Inc.

DC DC CONVERTER 12V 168W

Search across all available documentation for this part.

Active

Semiconductor Circuits, Inc.

DC DC CONVERTER 12V 168W

Technical Specifications

Parameters and characteristics for this part

Specification	CPE14B24NB

Applications	ITE (Commercial)
Approval Agency	CSA, TUV, UL
Control Features	Active Low, Enable
Current - Output (Max) [Max]	14 A
Efficiency	94 %
Features	Remote On/Off, Adjustable Output, Baseplate, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Eighth Brick
Power (Watts)	168 W
Size / Dimension [x]	58.4 mm
Size / Dimension [x]	2.3 in
Size / Dimension [y]	22.9 mm
Size / Dimension [y]	0.9 "
Size / Dimension [z]	12.7 mm
Size / Dimension [z]	0.5 in
Supplier Device Package	Eighth Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	12 V

DC DC CONVERTER 12V 168W

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Voltage - Output 1	Voltage - Input (Max) [Max]	Applications	Package / Case	Power (Watts)	Current - Output (Max) [Max]	Mounting Type	Efficiency	Voltage - Input (Min) [Min]	Voltage - Isolation	Control Features	Type	Features
Semiconductor Circuits, Inc. CPE14B24NB	Eighth Brick	85 °C	-40 °C	1	22.9 mm	58.4 mm	12.7 mm	0.5 in	2.3 in	0.9 "	CSA, TUV, UL	12 V	36 V	ITE (Commercial)	Eighth Brick	168 W	14 A	Through Hole	94 %	18 V	2250 VDC	Active Low, Enable	Isolated Module	Adjustable Output, Baseplate, Remote On/Off, Remote Sense

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 12V 14A 18V - 36V Input
