395-063-521-607
ActiveEDAC Inc.

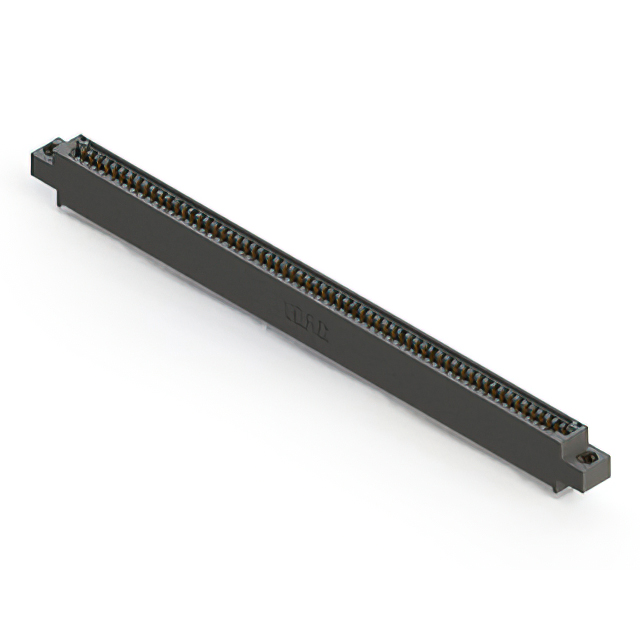

2.54MM STRAIGHT 63P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-063-521-607
ActiveEDAC Inc.
2.54MM STRAIGHT 63P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-063-521-607 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | M3, Threaded Insert, Top Mount Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 63 |
| Number of Positions/Bay/Row [custom] | 63 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
395-063 Series
...
| Part | Read Out | Contact Finish | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Material - Insulation | Number of Positions/Bay/Row [custom] | Termination Rows | Number of Rows | Card Type | Number of Positions | Gender | Pitch [x] | Pitch [x] | Flange Feature | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Color | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Single | Gold | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | 63 | 1 | 1 | Non Specified - Single Edge | 63 | Female | 2.54 mm | 0.1 in | 3.25 mm | 0.128 in | 10 Áin | 0.25 Ám | Copper Alloy | Black | Cantilever | -40 °C | 105 ░C | ||||
EDAC Inc. | Single | Gold | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | 63 | 1 | 1 | Non Specified - Single Edge | 63 | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | Black | Cantilever | -40 °C | 105 ░C | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Single | Gold | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | 63 | 1 | 1 | Non Specified - Single Edge | 63 | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | Black | Cantilever | -40 °C | 105 ░C | M3 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Single | Gold | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | 63 | 1 | 1 | Non Specified - Single Edge | 63 | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | Black | Cantilever | -40 °C | 105 ░C | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 in | |||
EDAC Inc. | Single | Gold | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | 63 | 1 | 1 | Non Specified - Single Edge | 63 | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | Black | Cantilever | -40 °C | 105 ░C | M3 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Single | Gold | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Polyester Thermoplastic | 63 | 1 | 1 | Non Specified - Single Edge | 63 | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | Black | Cantilever | -40 °C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | |||||
EDAC Inc. | Single | Gold | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | 63 | 1 | 1 | Non Specified - Single Edge | 63 | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | Black | Cantilever | -40 °C | 105 ░C | M3 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Single | Gold | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Polyester Thermoplastic | 63 | 1 | 1 | Non Specified - Single Edge | 63 | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | Black | Cantilever | -40 °C | 105 ░C | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 in | |||
EDAC Inc. | Single | Gold | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | 63 | 1 | 1 | Non Specified - Single Edge | 63 | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | Black | Cantilever | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||||
EDAC Inc. | Single | Gold | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | 63 | 1 | 1 | Non Specified - Single Edge | 63 | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | Black | Cantilever | -40 °C | 105 ░C | Top Mount Opening Unthreaded | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
395-063 Series
63 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
Documents
Technical documentation and resources
