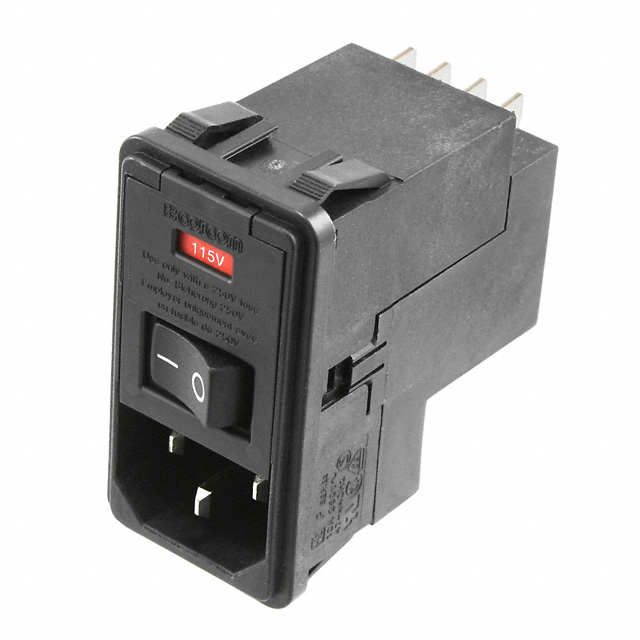

PS0SXSSX0

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Corcom EMI/RFI Filter Selector Chart

PS0SXSSX0

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

DocumentsDatasheet Corcom EMI/RFI Filter Selector Chart

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.41
		10	$ 22.27

Description

General part information

PS0S Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In

Documents

Technical documentation and resources

Datasheet

Corcom EMI/RFI Filter Selector Chart

Related Document

Specification	PS0SXSSX0	PS0S Series

Accomodates a Fuse	True	True
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	3 - 10 A
Current Rating - Filter	10 A	3 - 10 A
Features	Voltage Selector, Conversion Clip	Conversion Clip, Shielded, Voltage Selector, Interconnection Block
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial, Medical, Filtered (EMI, RFI) - Commercial, Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder	Fuse Holder, Fuse Holder, Twin Fused
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions	Variable Size	Variable Size
Panel Thickness [Max]	2.9 mm	2.11 - 2.9 mm
Panel Thickness [Max]	0.114 in	0.083 - 0.114 in
Panel Thickness [Min]	0.79 mm	0.79 mm
Panel Thickness [Min]	0.031 "	0.031 "
Switch Features	Switch On-Off	Switch On-Off
Termination	0.187 "	0.187 "
Termination	4.7 mm	4.7 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	120 VAC	120 VAC

Part

Approval Agency

Fuse Holder, Drawer

Voltage Rating - Appliance Inlet

Connector Type

Panel Thickness [Max]

Panel Thickness [Min]

Switch Features

Accomodates a Fuse

Connector Style

Panel Cutout Dimensions

Mounting Type

Termination

Filter Type

Current Rating - Appliance Inlet

Features

Current Rating - Filter

TE Connectivity Corcom Filters

PS0SSSH3A

CSA, UL, VDE

Fuse Holder

120 VAC

Receptacle, Male Blades - Module

2.9 mm

0.114 in

0.79 mm

0.031 "

Switch On-Off

IEC 320-C14

Variable Size

Panel Mount, Snap-In

0.187 "

4.7 mm

Quick Connect

Filtered (EMI, RFI) - Commercial, Medical

3 A

Conversion Clip, Shielded, Voltage Selector

3 A

TE Connectivity Corcom Filters

PS0S0SSX0

CSA, UL, VDE

Fuse Holder

120 VAC

Receptacle, Male Blades - Module

2.9 mm

0.114 in

0.79 mm

0.031 "

Switch On-Off

IEC 320-C14

Variable Size

Panel Mount, Snap-In

0.187 "

4.7 mm

Quick Connect

Filtered (EMI, RFI) - Commercial

10 A

Conversion Clip

10 A

TE Connectivity Corcom Filters

PS0S0SM3E

CSA, UL, VDE

Fuse Holder

120 VAC

Receptacle, Male Blades - Module

2.9 mm

0.114 in

0.79 mm

0.031 "

Switch On-Off

IEC 320-C14

Variable Size

Panel Mount, Snap-In

0.187 "

4.7 mm

Quick Connect

Filtered (EMI, RFI) - Commercial

3 A

Conversion Clip, Shielded

3 A

TE Connectivity Corcom Filters

PS0SSDH6A

CSA, UL, VDE

Fuse Holder, Twin Fused

120 VAC

Receptacle, Male Blades - Module

2.9 mm

0.114 in

0.79 mm

0.031 "

Switch On-Off

IEC 320-C14

Variable Size

Panel Mount, Snap-In

0.187 "

4.7 mm

Quick Connect

Filtered (EMI, RFI) - Commercial, Medical

6 A

Shielded, Voltage Selector

6 A

TE Connectivity Corcom Filters

PS0SXDS3B

CSA, UL, VDE

Fuse Holder, Twin Fused

120 VAC

Receptacle, Male Blades - Module

2.9 mm

0.114 in

0.79 mm

0.031 "

Switch On-Off

IEC 320-C14

Variable Size

Panel Mount, Snap-In

0.187 "

4.7 mm

Quick Connect

Filtered (EMI, RFI) - Commercial

3 A

Shielded, Voltage Selector

3 A

TE Connectivity Corcom Filters

PS0S0DHX0

CSA, UL, VDE

Fuse Holder, Twin Fused

120 VAC

Receptacle, Male Blades - Module

2.9 mm

0.114 in

0.79 mm

0.031 "

Switch On-Off

IEC 320-C14

Variable Size

Panel Mount, Snap-In

0.187 "

4.7 mm

Quick Connect

Filtered (EMI, RFI) - Commercial, Medical

10 A

TE Connectivity Corcom Filters

PS0SXSSX0

CSA, UL, VDE

Fuse Holder

120 VAC

Receptacle, Male Blades - Module

2.9 mm

0.114 in

0.79 mm

0.031 "

Switch On-Off

IEC 320-C14

Variable Size

Panel Mount, Snap-In

0.187 "

4.7 mm

Quick Connect

Filtered (EMI, RFI) - Commercial

10 A

Conversion Clip, Voltage Selector

10 A

TE Connectivity Corcom Filters

PS0S0SBX0

CSA, UL, VDE

Fuse Holder

120 VAC

Receptacle, Male Blades - Module

2.11 mm

0.083 "

0.79 mm

0.031 "

Switch On-Off

IEC 320-C14

Variable Size

Panel Mount, Snap-In

0.187 "

4.7 mm

Quick Connect

Filtered (EMI, RFI) - Commercial

10 A

Conversion Clip, Interconnection Block

10 A

TE Connectivity Corcom Filters

PS0SXDH60

CSA, UL, VDE

Fuse Holder, Twin Fused

120 VAC

Receptacle, Male Blades - Module

2.9 mm

0.114 in

0.79 mm

0.031 "

Switch On-Off

IEC 320-C14

Variable Size

Panel Mount, Snap-In

0.187 "

4.7 mm

Quick Connect

Filtered (EMI, RFI) - Commercial, Medical

6 A

Voltage Selector

6 A

TE Connectivity Corcom Filters

PS0SSSS6A

CSA, UL, VDE

Fuse Holder

120 VAC

Receptacle, Male Blades - Module

2.9 mm

0.114 in

0.79 mm

0.031 "

Switch On-Off

IEC 320-C14

Variable Size

Panel Mount, Snap-In

0.187 "

4.7 mm

Quick Connect

Filtered (EMI, RFI) - Commercial

6 A

Conversion Clip, Shielded, Voltage Selector

6 A

Part	Approval Agency	Fuse Holder, Drawer	Voltage Rating - Appliance Inlet	Connector Type	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Switch Features	Connector Style	Panel Cutout Dimensions	Mounting Type	Termination	Termination	Termination	Filter Type	Current Rating - Appliance Inlet	Features	Current Rating - Filter
TE Connectivity Corcom Filters PS0SSSH3A	CSA, UL, VDE	Fuse Holder	120 VAC	Receptacle, Male Blades - Module	2.9 mm	0.114 in	0.79 mm	0.031 "	Switch On-Off	IEC 320-C14	Variable Size	Panel Mount, Snap-In	0.187 "	4.7 mm	Quick Connect	Filtered (EMI, RFI) - Commercial, Medical	3 A	Conversion Clip, Shielded, Voltage Selector	3 A
TE Connectivity Corcom Filters PS0S0SSX0	CSA, UL, VDE	Fuse Holder	120 VAC	Receptacle, Male Blades - Module	2.9 mm	0.114 in	0.79 mm	0.031 "	Switch On-Off	IEC 320-C14	Variable Size	Panel Mount, Snap-In	0.187 "	4.7 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	10 A	Conversion Clip	10 A
TE Connectivity Corcom Filters PS0S0SM3E	CSA, UL, VDE	Fuse Holder	120 VAC	Receptacle, Male Blades - Module	2.9 mm	0.114 in	0.79 mm	0.031 "	Switch On-Off	IEC 320-C14	Variable Size	Panel Mount, Snap-In	0.187 "	4.7 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	3 A	Conversion Clip, Shielded	3 A
TE Connectivity Corcom Filters PS0SSDH6A	CSA, UL, VDE	Fuse Holder, Twin Fused	120 VAC	Receptacle, Male Blades - Module	2.9 mm	0.114 in	0.79 mm	0.031 "	Switch On-Off	IEC 320-C14	Variable Size	Panel Mount, Snap-In	0.187 "	4.7 mm	Quick Connect	Filtered (EMI, RFI) - Commercial, Medical	6 A	Shielded, Voltage Selector	6 A
TE Connectivity Corcom Filters PS0SXDS3B	CSA, UL, VDE	Fuse Holder, Twin Fused	120 VAC	Receptacle, Male Blades - Module	2.9 mm	0.114 in	0.79 mm	0.031 "	Switch On-Off	IEC 320-C14	Variable Size	Panel Mount, Snap-In	0.187 "	4.7 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	3 A	Shielded, Voltage Selector	3 A
TE Connectivity Corcom Filters PS0S0DHX0	CSA, UL, VDE	Fuse Holder, Twin Fused	120 VAC	Receptacle, Male Blades - Module	2.9 mm	0.114 in	0.79 mm	0.031 "	Switch On-Off	IEC 320-C14	Variable Size	Panel Mount, Snap-In	0.187 "	4.7 mm	Quick Connect	Filtered (EMI, RFI) - Commercial, Medical	10 A		10 A
TE Connectivity Corcom Filters PS0SXSSX0	CSA, UL, VDE	Fuse Holder	120 VAC	Receptacle, Male Blades - Module	2.9 mm	0.114 in	0.79 mm	0.031 "	Switch On-Off	IEC 320-C14	Variable Size	Panel Mount, Snap-In	0.187 "	4.7 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	10 A	Conversion Clip, Voltage Selector	10 A
TE Connectivity Corcom Filters PS0S0SBX0	CSA, UL, VDE	Fuse Holder	120 VAC	Receptacle, Male Blades - Module	2.11 mm	0.083 "	0.79 mm	0.031 "	Switch On-Off	IEC 320-C14	Variable Size	Panel Mount, Snap-In	0.187 "	4.7 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	10 A	Conversion Clip, Interconnection Block	10 A
TE Connectivity Corcom Filters PS0SXDH60	CSA, UL, VDE	Fuse Holder, Twin Fused	120 VAC	Receptacle, Male Blades - Module	2.9 mm	0.114 in	0.79 mm	0.031 "	Switch On-Off	IEC 320-C14	Variable Size	Panel Mount, Snap-In	0.187 "	4.7 mm	Quick Connect	Filtered (EMI, RFI) - Commercial, Medical	6 A	Voltage Selector	6 A
TE Connectivity Corcom Filters PS0SSSS6A	CSA, UL, VDE	Fuse Holder	120 VAC	Receptacle, Male Blades - Module	2.9 mm	0.114 in	0.79 mm	0.031 "	Switch On-Off	IEC 320-C14	Variable Size	Panel Mount, Snap-In	0.187 "	4.7 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	6 A	Conversion Clip, Shielded, Voltage Selector	6 A
