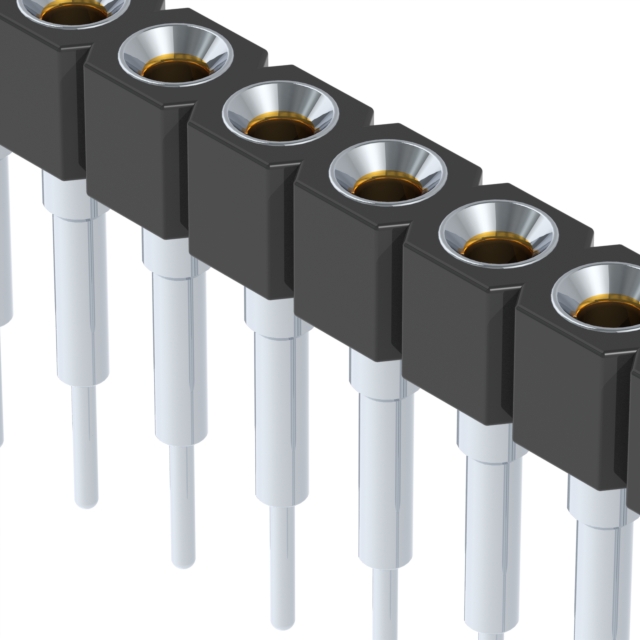

316-41-127-41-003000
ActiveMill-Max Manufacturing Corp.
CONN SOCKET 27POS 0.1 GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
316-41-127-41-003000
ActiveMill-Max Manufacturing Corp.
CONN SOCKET 27POS 0.1 GOLD PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 316-41-127-41-003000 |
|---|---|
| Connector Type | Elevated Socket |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Beryllium Copper |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.315 in |
| Insulation Height | 8 mm |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 27 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Termination | Solder |
316-41 Series
...
| Part | Contact Finish - Post | Insulation Color | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Material Flammability Rating | Insulation Material | Contact Shape | Fastening Type | Insulation Height | Insulation Height | Current Rating (Amps) | Number of Positions Loaded | Mounting Type | Contact Finish - Mating | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post | Pitch - Mating | Pitch - Mating | Termination | Number of Rows | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mill-Max Manufacturing Corp. | Tin | Black | 200 µin | 5.08 µm | Elevated Socket | 10 çin | 0.25 çm | 27 | UL94 V-0 | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Push-Pull | 0.315 in | 8 mm | 3 A | All | Through Hole | Gold | Female Socket | -55 °C | 125 °C | 0.118 in | 3 mm | 0.1 in | 2.54 mm | Solder | 1 | Beryllium Copper |
Mill-Max Manufacturing Corp. | Tin | Black | 200 µin | 5.08 µm | Elevated Socket | 10 çin | 0.25 çm | 52 | UL94 V-0 | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Push-Pull | 0.236 in | 6 mm | 3 A | All | Through Hole | Gold | Female Socket | -55 °C | 125 °C | 0.118 in | 3 mm | 0.1 in | 2.54 mm | Solder | 1 | Beryllium Copper |
Mill-Max Manufacturing Corp. | Tin | Black | 200 µin | 5.08 µm | Elevated Socket | 10 çin | 0.25 çm | 12 | UL94 V-0 | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Push-Pull | 0.402 in | 10.2 mm | 3 A | All | Through Hole | Gold | Female Socket | -55 °C | 125 °C | 0.118 in | 3 mm | 0.1 in | 2.54 mm | Solder | 1 | Beryllium Copper |
Mill-Max Manufacturing Corp. | Tin | Black | 200 µin | 5.08 µm | Elevated Socket | 10 çin | 0.25 çm | 11 | UL94 V-0 | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Push-Pull | 0.236 in | 6 mm | 3 A | All | Through Hole | Gold | Female Socket | -55 °C | 125 °C | 0.118 in | 3 mm | 0.1 in | 2.54 mm | Solder | 1 | Beryllium Copper |
Mill-Max Manufacturing Corp. | Tin | Black | 200 µin | 5.08 µm | Elevated Socket | 10 çin | 0.25 çm | 48 | UL94 V-0 | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Push-Pull | 0.402 in | 10.2 mm | 3 A | All | Through Hole | Gold | Female Socket | -55 °C | 125 °C | 0.118 in | 3 mm | 0.1 in | 2.54 mm | Solder | 1 | Beryllium Copper |
Mill-Max Manufacturing Corp. | Tin | Black | 200 µin | 5.08 µm | Elevated Socket | 10 çin | 0.25 çm | 18 | UL94 V-0 | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Push-Pull | 0.402 in | 10.2 mm | 3 A | All | Through Hole | Gold | Female Socket | -55 °C | 125 °C | 0.118 in | 3 mm | 0.1 in | 2.54 mm | Solder | 1 | Beryllium Copper |
Mill-Max Manufacturing Corp. | Tin | Black | 200 µin | 5.08 µm | Elevated Socket | 10 çin | 0.25 çm | 21 | UL94 V-0 | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Push-Pull | 0.236 in | 6 mm | 3 A | All | Through Hole | Gold | Female Socket | -55 °C | 125 °C | 0.118 in | 3 mm | 0.1 in | 2.54 mm | Solder | 1 | Beryllium Copper |
Mill-Max Manufacturing Corp. | Tin | Black | 200 µin | 5.08 µm | Elevated Socket | 10 çin | 0.25 çm | 48 | UL94 V-0 | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Push-Pull | 0.236 in | 6 mm | 3 A | All | Through Hole | Gold | Female Socket | -55 °C | 125 °C | 0.118 in | 3 mm | 0.1 in | 2.54 mm | Solder | 1 | Beryllium Copper |
Mill-Max Manufacturing Corp. | Tin | Black | 200 µin | 5.08 µm | Elevated Socket | 10 çin | 0.25 çm | 39 | UL94 V-0 | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Push-Pull | 0.236 in | 6 mm | 3 A | All | Through Hole | Gold | Female Socket | -55 °C | 125 °C | 0.118 in | 3 mm | 0.1 in | 2.54 mm | Solder | 1 | Beryllium Copper |
Mill-Max Manufacturing Corp. | Tin | Black | 200 µin | 5.08 µm | Elevated Socket | 10 çin | 0.25 çm | 19 | UL94 V-0 | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Push-Pull | 0.472 in | 12 mm | 3 A | All | Through Hole | Gold | Female Socket | -55 °C | 125 °C | 0.118 in | 3 mm | 0.1 in | 2.54 mm | Solder | 1 | Beryllium Copper |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 16.23 | |
Description
General part information
316-41 Series
27 Position Elevated Socket Connector 0.100" (2.54mm) Through Hole Gold
Documents
Technical documentation and resources
No documents available
