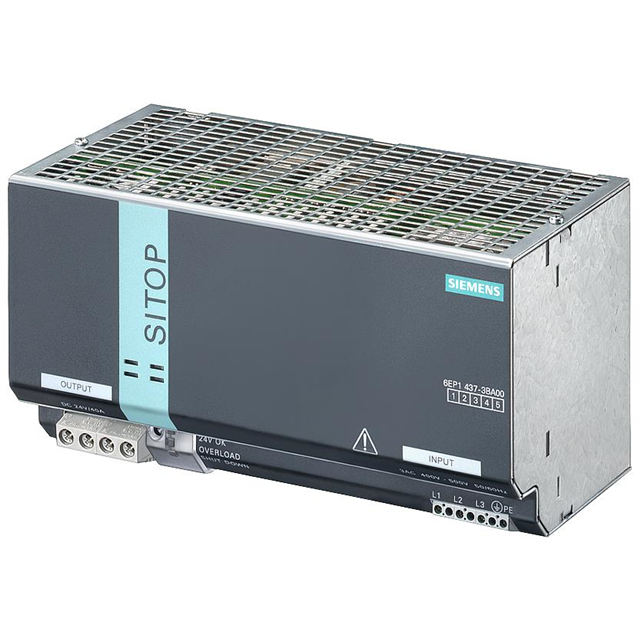

6EP14373BA00
ActiveSiemens
AC/DC DIN RAIL SUPPLY 24V
Deep-Dive with AI
Search across all available documentation for this part.
6EP14373BA00
ActiveSiemens
AC/DC DIN RAIL SUPPLY 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6EP14373BA00 |
|---|---|
| AC Voltage - Input [Max] | 550 VAC |
| AC Voltage - Input [Min] | 320 VAC |
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | UL, CSA, CE |
| Current - Output (Max) [Max] | 40 A |
| Efficiency | 90 % |
| Features | Adjustable Output, IP20 |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Size / Dimension [x] | 125 mm |
| Size / Dimension [x] | 4.92 in |
| Size / Dimension [y] | 9.45 " |
| Size / Dimension [y] | 240 mm |
| Size / Dimension [z] | 4.92 in |
| Size / Dimension [z] | 125 mm |
| Standard Number | 60950-1, UL 508 |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 832.26 | |
| 10 | $ 805.02 | |||
Description
General part information
6EP14373 Series
AC/DC DIN RAIL SUPPLY 24V
Documents
Technical documentation and resources
