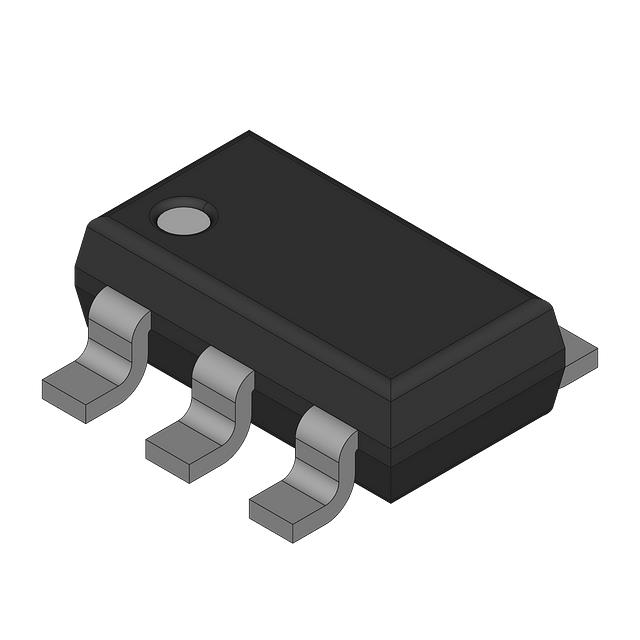

EL7630IWTZ-T7A

Active

Intersil

IC LED DRVR RGLTR PWM TSOT23-5

Search across all available documentation for this part.

Active

Intersil

IC LED DRVR RGLTR PWM TSOT23-5

Technical Specifications

Parameters and characteristics for this part

IC LED DRVR RGLTR PWM TSOT23-5

Part	Voltage - Output	Applications	Package / Case	Topology	Frequency	Mounting Type	Number of Outputs	Current - Output / Channel	Voltage - Supply (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Dimming	Type	Internal Switch(s)
Intersil EL7630IWTZ-T7A	27 V	Backlight	SOT-23-5 Thin, TSOT-23-5	Step-Up (Boost)	1.35 MHz	Surface Mount	1	350 mA	5.5 V	85 °C	-40 °C	Analog, PWM	DC DC Regulator

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	107	$ 2.83

General part information

LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) Analog, PWM Dimming 350mA (Switch) TSOT-23-5

Technical documentation and resources

No documents available
