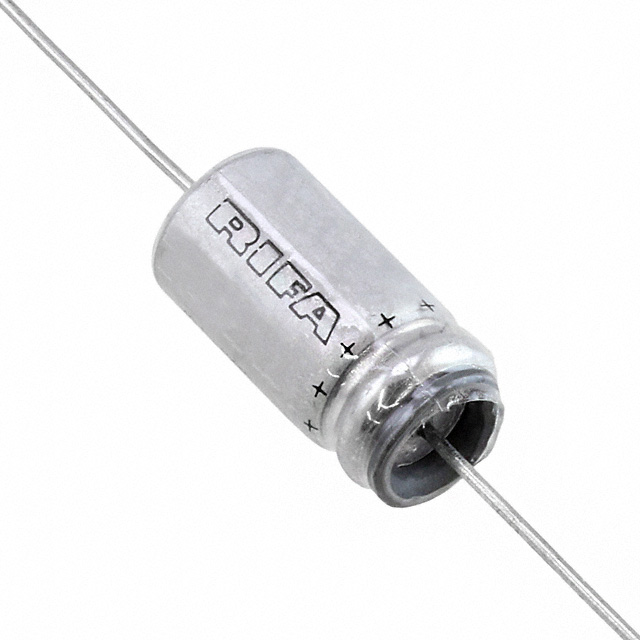

PEG124MA2220QL1

Unknown

KEMET

CAP ALUM 22UF 63V AXIAL TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet PEG124 Series Datasheet

PEG124MA2220QL1

Unknown

KEMET

CAP ALUM 22UF 63V AXIAL TH

Deep-Dive with AI

DocumentsDatasheet PEG124 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEG124MA2220QL1

Applications	General Purpose
Capacitance	22 µF
ESR (Equivalent Series Resistance)	3.4 Ohm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Can, Axial
Polarization	Polar
Ripple Current @ Low Frequency	134 mA
Size / Dimension [diameter]	0.394 in
Size / Dimension [diameter]	10 mm
Size / Dimension [x]	0.787 in
Size / Dimension [x]	20 mm
Tolerance [Max]	30 %
Tolerance [Min]	-10 %
Voltage - Rated	63 V

PEG124M Series

Part	Mounting Type	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Polarization	Lifetime @ Temp.	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Voltage - Rated	Ripple Current @ Low Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Capacitance	Tolerance	Tolerance [Min]	Tolerance [Max]	Size / Dimension [x]	Size / Dimension [x]
KEMET PEG124MA2100QL1	Through Hole	5.9 Ohm	20 mm	0.787 "	Polar	2000 Hrs	79.04 mA	10 mm	0.394 in	General Purpose	63 V	76 mA	125 °C	-40 °C	Axial Can	10 µF	20 %
KEMET PEG124MC310AQT1	Through Hole	730 mOhm	20 mm	0.787 "	Polar	2000 Hrs		13 mm	0.512 in	General Purpose	63 V	328 mA	125 °C	-40 °C	Axial Can	100 µF		-10 %	30 %
KEMET PEG124MB2470QT1	Through Hole	1.6 Ohm			Polar	2000 Hrs	1.6 A	10 mm	0.394 in	General Purpose	63 V	190 mA	125 °C	-40 °C	Axial Can	47 µF		-10 %	30 %	1.142 inches	29 mm
KEMET PEG124MA2100QT1	Through Hole	5.9 Ohm	20 mm	0.787 "	Polar	2000 Hrs	79.04 mA	10 mm	0.394 in	General Purpose	63 V	76 mA	125 °C	-40 °C	Axial Can	10 µF	20 %
KEMET PEG124MF322VQL1	Through Hole	290 mOhm	29 mm	1.142 in	Polar	2000 Hrs	6.1 A	16 mm	0.63 in	General Purpose	63 V		125 °C	-40 °C	Axial Can	220 µF		-10 %	30 %
KEMET PEG124MB2330QL1	Through Hole	2.2 Ohm			Polar	2000 Hrs	1.4 A	10 mm	0.394 in	General Purpose	63 V	158 mA	125 °C	-40 °C	Axial Can	33 ÁF		-10 %	30 %	1.142 inches	29 mm
KEMET PEG124MA2220QL1	Through Hole	3.4 Ohm			Polar	2000 Hrs		10 mm	0.394 in	General Purpose	63 V	134 mA	125 °C	-40 °C	Axial Can	22 µF		-10 %	30 %	0.787 in	20 mm
KEMET PEG124MA2150QT1	Through Hole	4.3 Ohm			Polar	2000 Hrs	1 A	10 mm	0.394 in	General Purpose	63 V	113 mA	125 °C	-40 °C	Axial Can	15 µF		-10 %	30 %	0.787 in	20 mm
KEMET PEG124MB2470QL1	Through Hole	1.6 Ohm	29 mm	1.142 in	Polar	2000 Hrs	197.6 mA	10 mm	0.394 in	General Purpose	63 V	190 mA	125 °C	-40 °C	Axial Can	47 µF		-10 %	30 %
KEMET PEG124MB2330QT1	Through Hole	2.2 Ohm			Polar	2000 Hrs	1.4 A	10 mm	0.394 in	General Purpose	63 V	158 mA	125 °C	-40 °C	Axial Can	33 ÁF		-10 %	30 %	1.142 inches	29 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Each	100	$ 3.05
		500	$ 2.78
		1000	$ 2.45
		2500	$ 2.28

Description

General part information

PEG124M Series

22 µF 63 V Aluminum Electrolytic Capacitors Axial, Can 3.4Ohm @ 100Hz 2000 Hrs @ 125°C
