IL13-EU1-H05-3100-200

Active

TE Connectivity Raychem Cable Protection

CRD 18AWG CEE7/7 RA - C13 6.67'

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CRD 18AWG CEE7/7 RA - C13 6.67'

Technical Specifications

Parameters and characteristics for this part

Specification	IL13-EU1-H05-3100-200

1st Connector	CEE 7/7, Right Angle
Approval Agency Marking	SAA, KEMA, CB, KC
Approved Countries	New Zealand, Australia, Korea, Netherlands
Color	Black
Cord Type	H05VV-F
Current Rating (Amps)	10 A
Features	Locking
Length [x]	2.03 m
Length [x]	6.67 ft
Number of Conductors	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Style	Male Pins, Female Sockets
Voltage Rating	250 VAC
Wire Gauge	18 AWG

Part	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency Marking	Shielding	Style	Voltage Rating	1st Connector	Current Rating (Amps)	Color	Length [x]	Length [x]	Approved Countries	Features	Wire Gauge	Cord Type	Number of Conductors
TE Connectivity Raychem Cable Protection IL13-EU1-H05-3100-200	70 °C	-25 °C	CB KC KEMA SAA	Unshielded	Female Sockets Male Pins	250 VAC	CEE 7/7 Right Angle	10 A	Black	2.03 m	6.67 ft	Australia Korea Netherlands New Zealand	Locking	18 AWG	H05VV-F	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

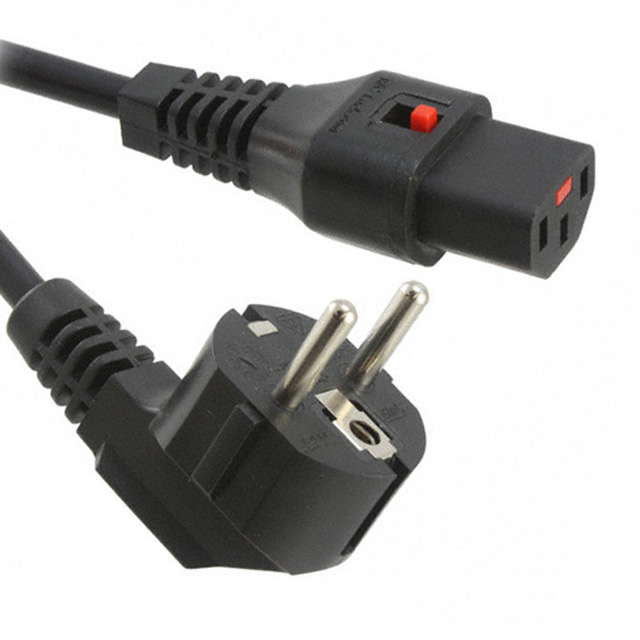

6.67' (2.03m) Power Cord Black CEE 7/7, Right Angle To IEC 320-C13 H05VV-F
