1116186

Active

Phoenix Contact

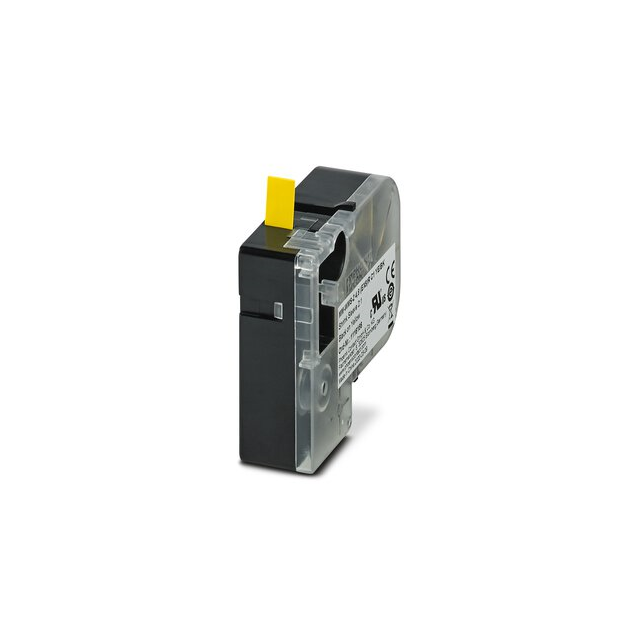

SHRINK SLEEVE, ROLL, YELLOW/BLAC

Search across all available documentation for this part.

Active

Phoenix Contact

SHRINK SLEEVE, ROLL, YELLOW/BLAC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1116186	MM-WMS-2 Series

Color	-	White
For Use With/Related Products	-	Thermal Transfer Printer
Label Size	-	0.2 - 16.5 in
Label Size	-	0.25 in
Label Size	-	1 - 70.87 "
Label Size	-	0.13 in
Label Size	-	0.19 - 4.8 mm
Label Size [Max]	4.8 mm	0.13 - 9.5 mm
Label Size [Max]	0.19 "	0.13 - 0.37 "
Label Size [Min]	0.09 "	0.06 - 0.19 in
Label Size [Min]	2.4 mm	0.06 - 4.8 in
Label Size [x]	0.36 ", 9.1 mm	0.26 - 9.1 in
Label Size [y]	0.04 ", 1 mm	0.04 - 1 "
Label Type	Heat Shrinkable	Continuous, Heat Shrinkable
Material	Polyolefin (PO)	Halogen Free, Polyolefin (PO)
Operating Temperature [Max]	125 °C	125 - 135 °C
Operating Temperature [Min]	-55 °C	-55 °C

LABEL HEAT SHRINKABLE CONTIN WHT

Part	Label Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	For Use With/Related Products	Material	Label Size [x]	Label Size [Max] [diameter]	Label Size [y]	Label Size [Min] [diameter]	Label Size [Min]	Label Size [Max]	Label Size [Max]	Label Size [y]	Label Size [Min]	Label Size [x]	Label Size [Max]
Phoenix Contact 0803929	Continuous, Heat Shrinkable	135 °C	-55 °C	White	Thermal Transfer Printer	Halogen Free, Polyolefin (PO)	0.39 in	0.25 in	70.87 "	0.13 in
Phoenix Contact 0803928	Continuous, Heat Shrinkable	135 °C	-55 °C	White	Thermal Transfer Printer	Halogen Free, Polyolefin (PO)	0.35 in, 9 mm		1.8 m, 70.87 "		0.09 in, 2.4 mm	0.19 in, 4.8 mm
Phoenix Contact 1116176	Heat Shrinkable	125 °C	-55 °C			Polyolefin (PO)	6.7 mm		1 mm		1.6 mm		3.2 mm	0.04 "	0.06 in	0.26 in	0.13 "
Phoenix Contact 1116186	Heat Shrinkable	125 °C	-55 °C			Polyolefin (PO)					2.4 mm		4.8 mm	0.04 ", 1 mm	0.09 "	0.36 ", 9.1 mm	0.19 "
Phoenix Contact 0803927	Continuous, Heat Shrinkable	135 °C	-55 °C	White	Thermal Transfer Printer	Halogen Free, Polyolefin (PO)	0.2 ", 5 mm		1.8 m, 70.87 "		0.06 ", 1.6 mm		0.13 ", 3.2 mm
Phoenix Contact 0803930	Continuous, Heat Shrinkable	135 °C	-55 °C	White	Thermal Transfer Printer	Halogen Free, Polyolefin (PO)	0.63 ", 16 mm		1.8 m, 70.87 "		0.19 ", 4.8 mm		0.37 ", 9.5 mm
Phoenix Contact 1116189	Heat Shrinkable	125 °C	-55 °C			Polyolefin (PO)	16.5 mm		1 mm		4.8 mm		9.5 mm	0.04 "	0.19 "	0.65 in	0.37 "
Phoenix Contact 1116187	Heat Shrinkable	125 °C	-55 °C			Polyolefin (PO)	11.5 mm		1 mm		3.2 mm		6.4 mm	0.04 "	0.13 in	0.45 in	0.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black, Yellow Heat Shrinkable Label 0.36" x 0.04" (9.1mm x 1.0mm); Cable O.D. 0.09" ~ 0.19" (2.4mm ~ 4.8mm)
