0803927

Active

Phoenix Contact

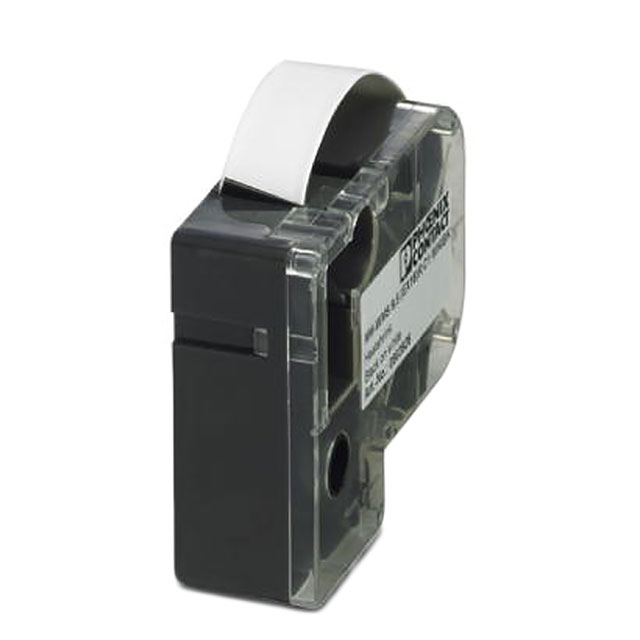

LABEL HEAT SHRINKABLE CONTIN WHT

Search across all available documentation for this part.

Active

Phoenix Contact

LABEL HEAT SHRINKABLE CONTIN WHT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0803927	MM-WMS-2 Series

Color	White	White
For Use With/Related Products	Thermal Transfer Printer	Thermal Transfer Printer
Label Size	-	0.25 in
Label Size	-	0.13 in
Label Size	-	0.19 - 4.8 mm
Label Size	-	0.04 - 1 "
Label Size	-	0.06 - 0.19 in
Label Size	-	0.26 - 9.1 in
Label Size	-	0.13 - 0.37 "
Label Size [Max]	3.2 mm, 0.13 "	0.13 - 9.5 mm
Label Size [Min]	1.6 mm, 0.06 "	0.06 - 4.8 in
Label Size [x]	5 mm, 0.2 "	0.2 - 16.5 in
Label Size [y]	1.8 m, 70.87 "	1 - 70.87 "
Label Type	Continuous, Heat Shrinkable	Continuous, Heat Shrinkable
Material	Halogen Free, Polyolefin (PO)	Halogen Free, Polyolefin (PO)
Operating Temperature [Max]	135 °C	125 - 135 °C
Operating Temperature [Min]	-55 °C	-55 °C

LABEL HEAT SHRINKABLE CONTIN WHT

Part	Label Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	For Use With/Related Products	Material	Label Size [x]	Label Size [Max] [diameter]	Label Size [y]	Label Size [Min] [diameter]	Label Size [Min]	Label Size [Max]	Label Size [Max]	Label Size [y]	Label Size [Min]	Label Size [x]	Label Size [Max]
Phoenix Contact 0803929	Continuous, Heat Shrinkable	135 °C	-55 °C	White	Thermal Transfer Printer	Halogen Free, Polyolefin (PO)	0.39 in	0.25 in	70.87 "	0.13 in
Phoenix Contact 0803928	Continuous, Heat Shrinkable	135 °C	-55 °C	White	Thermal Transfer Printer	Halogen Free, Polyolefin (PO)	0.35 in, 9 mm		1.8 m, 70.87 "		0.09 in, 2.4 mm	0.19 in, 4.8 mm
Phoenix Contact 1116176	Heat Shrinkable	125 °C	-55 °C			Polyolefin (PO)	6.7 mm		1 mm		1.6 mm		3.2 mm	0.04 "	0.06 in	0.26 in	0.13 "
Phoenix Contact 1116186	Heat Shrinkable	125 °C	-55 °C			Polyolefin (PO)					2.4 mm		4.8 mm	0.04 ", 1 mm	0.09 "	0.36 ", 9.1 mm	0.19 "
Phoenix Contact 0803927	Continuous, Heat Shrinkable	135 °C	-55 °C	White	Thermal Transfer Printer	Halogen Free, Polyolefin (PO)	0.2 ", 5 mm		1.8 m, 70.87 "		0.06 ", 1.6 mm		0.13 ", 3.2 mm
Phoenix Contact 0803930	Continuous, Heat Shrinkable	135 °C	-55 °C	White	Thermal Transfer Printer	Halogen Free, Polyolefin (PO)	0.63 ", 16 mm		1.8 m, 70.87 "		0.19 ", 4.8 mm		0.37 ", 9.5 mm
Phoenix Contact 1116189	Heat Shrinkable	125 °C	-55 °C			Polyolefin (PO)	16.5 mm		1 mm		4.8 mm		9.5 mm	0.04 "	0.19 "	0.65 in	0.37 "
Phoenix Contact 1116187	Heat Shrinkable	125 °C	-55 °C			Polyolefin (PO)	11.5 mm		1 mm		3.2 mm		6.4 mm	0.04 "	0.13 in	0.45 in	0.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.80

General part information

White Heat Shrinkable, Continuous Label 0.20" W x 70.87" L (5.0mm x 1.8m); Cable O.D. 0.06" ~ 0.13" (1.6mm ~ 3.2mm)

Technical documentation and resources

No documents available
