89696 0101000

Active

Belden Inc.

MULTI-PAIR 4COND 22AWG BLK

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4COND 22AWG BLK

Technical Specifications

Parameters and characteristics for this part

Specification	89696 0101000

Cable Type	Multi-Pair
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	6.65 mm
Jacket (Insulation) Diameter [diameter]	0.262 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Ratings	UL Style CMP
Shield Coverage	100 %, 55 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Voltage	300 V
Wire Gauge	22 AWG

Part	Length	Length	Conductor Material	Jacket (Insulation) Material	Shield Material	Conductor Insulation	Voltage	Features	Conductor Strand	Ratings	Jacket Color	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Usage	Shield Type	Shield Coverage
Belden Inc. 89696 0101000	1000 ft	304.8 m	Copper Bare	Fluorinated Ethylene-Propylene (FEP) Plenum	Aluminum Copper Tinned	Fluorinated Ethylene-Propylene (FEP)	300 V	Drain Wire	Solid	UL Style CMP	Black	22 AWG	6.65 mm	0.262 in	4	200 °C	-70 °C	Multi-Pair	Computer	Braid Foil	55 % 100 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 10.84

General part information

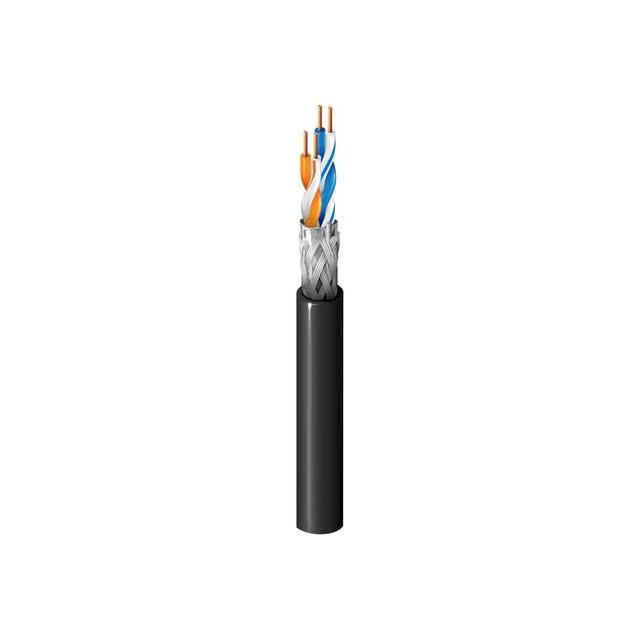

4 (2 Pair Twisted) Conductor Multi-Pair Cable Black 22 AWG Foil, Braid 1000.0' (304.8m)
