BT2S-M4

Active

Panduit Corp

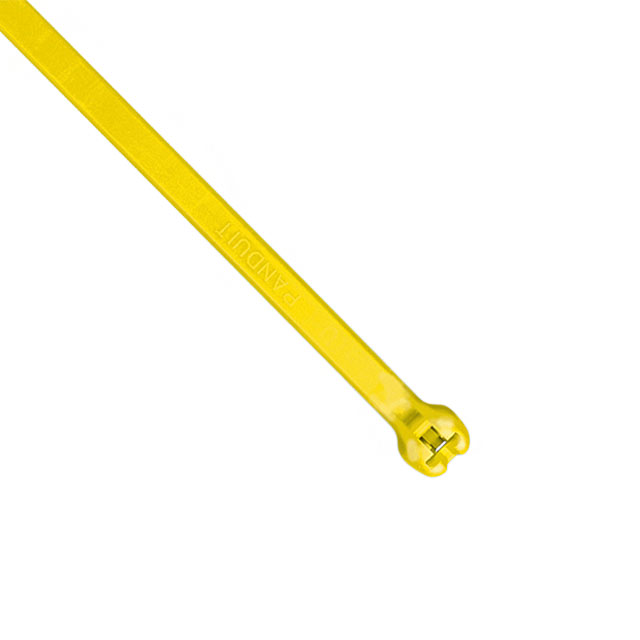

CBL TIE LOCKING YELLOW 50LBS 8"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BT2S-M4

Active

Panduit Corp

CBL TIE LOCKING YELLOW 50LBS 8"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BT2S Series

Standard, Locking Yellow 2.00" (50.80mm) 0.185" (4.70mm) 50 lbs (22.68 kg)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BT2S-M4	BT2S Series

	-	-
Bundle Diameter [diameter]	50.8 mm	50.8 mm
Bundle Diameter [diameter]	2 in	2 in
Color	Yellow	Natural, White, Red, Yellow, Gray, Blue, Brown, Black
Features	-	Weather Resistant
Length - Actual [x]	8 in	8 in
Length - Actual [x]	0.667 ft	0.667 ft
Length - Actual [x]	203.2 mm	203.2 mm
Length - Approximate	8 in	8 in
Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tensile Strength	22.68 kg	22.68 kg
Tensile Strength	50 lbs	50 lbs
Width [x]	4.7 mm	4.7 mm
Width [x]	0.185 in	0.185 in
Wire/Cable Tie Type	Standard, Locking	Standard, Locking

BT2S Series

CBL TIE LOCKING NATURAL 50LBS 8"

Part	Wire/Cable Tie Type	Tensile Strength	Tensile Strength	Length - Approximate	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Color	Material	Width [x]	Width [x]	Mounting Type	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Features
Panduit Corp BT2S-C	Locking, Standard	22.68 kg	50 lbs	8 in	50.8 mm	2 in	Natural	Polyamide (PA66), Nylon 6/6	4.7 mm	0.185 in	Free Hanging (In-Line)	8 in	0.667 ft	203.2 mm
Panduit Corp BT2S-M10	Locking, Standard	22.68 kg	50 lbs	8 in	50.8 mm	2 in	White	Polyamide (PA66), Nylon 6/6	4.7 mm	0.185 in	Free Hanging (In-Line)	8 in	0.667 ft	203.2 mm
Panduit Corp BT2S-M2	Locking, Standard	22.68 kg	50 lbs	8 in	50.8 mm	2 in	Red	Polyamide (PA66), Nylon 6/6	4.7 mm	0.185 in	Free Hanging (In-Line)	8 in	0.667 ft	203.2 mm
Panduit Corp BT2S-M4	Locking, Standard	22.68 kg	50 lbs	8 in	50.8 mm	2 in	Yellow	Polyamide (PA66), Nylon 6/6	4.7 mm	0.185 in	Free Hanging (In-Line)	8 in	0.667 ft	203.2 mm
Panduit Corp BT2S-M4Y	Locking, Standard	22.68 kg	50 lbs	8 in	50.8 mm	2 in	Yellow	Polyamide (PA66), Nylon 6/6	4.7 mm	0.185 in	Free Hanging (In-Line)	8 in	0.667 ft	203.2 mm
Panduit Corp BT2S-M8	Locking, Standard	22.68 kg	50 lbs	8 in	50.8 mm	2 in	Gray	Polyamide (PA66), Nylon 6/6	4.7 mm	0.185 in	Free Hanging (In-Line)	8 in	0.667 ft	203.2 mm
Panduit Corp BT2S-M6	Locking, Standard	22.68 kg	50 lbs	8 in	50.8 mm	2 in	Blue	Polyamide (PA66), Nylon 6/6	4.7 mm	0.185 in	Free Hanging (In-Line)	8 in	0.667 ft	203.2 mm
Panduit Corp BT2S-M54/N
Panduit Corp BT2S-M1	Locking, Standard	22.68 kg	50 lbs	8 in	50.8 mm	2 in	Brown	Polyamide (PA66), Nylon 6/6	4.7 mm	0.185 in	Free Hanging (In-Line)	8 in	0.667 ft	203.2 mm
Panduit Corp BT2S-M0	Locking, Standard	22.68 kg	50 lbs	8 in	50.8 mm	2 in	Black	Polyamide (PA66), Nylon 6/6	4.7 mm	0.185 in	Free Hanging (In-Line)	8 in	0.667 ft	203.2 mm	Weather Resistant
