Q-7004R000M084I

Active

Amphenol Custom Cable

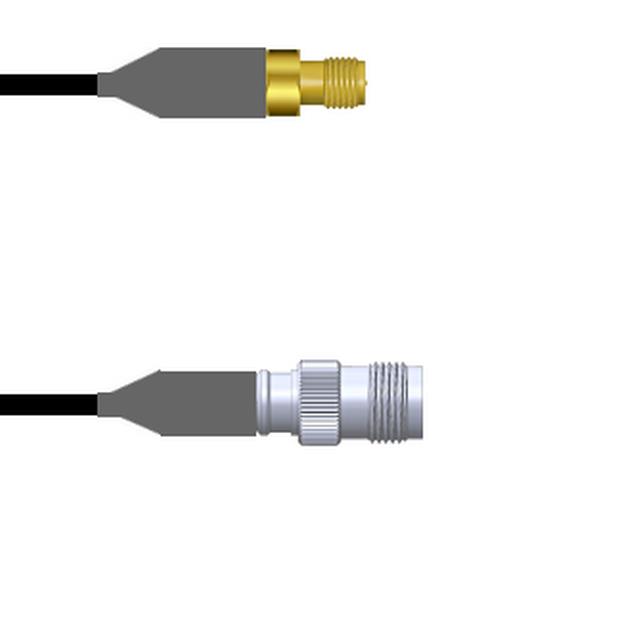

CBL ASSY RPSMA-TNC JACK-JACK 7'

Deep-Dive with AI

Search across all available documentation for this part.

Q-7004R000M084I

Active

Amphenol Custom Cable

CBL ASSY RPSMA-TNC JACK-JACK 7'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q-7004R000M084I	Q-7004R0 Series

1st Connector	RP-SMA Jack	RP-SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Male	Male
2nd Connector	TNC Jack	TNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Female	Female
Cable Impedance	50 Ohms	50 Ohms
Cable Type	LMR 240	LMR 240
Color	Black	Black
Connector Impedance	50 Ohms	50 Ohms
Features	Shielded	Shielded
Frequency - Max [Max]	6000 MHz	6000 MHz
Length	84 in	5 - 118.1 in
Length	2.1 m	1 - 750 m
Length	7 ft	3.3 - 9.8 ft
Length	-	457.2 mm
Length	-	457.2 mm
Overall Impedance	50 Ohms	50 Ohms
Style	RP-SMA to TNC	RP-SMA to TNC

Q-7004R0 Series

CBL ASSY RPSMA-TNC JACK-JACK 9'

Part	Connector Impedance	2nd Connector	Cable Impedance	Length	Length	Length	2nd Connector Mounting Type	Features	Style	1st Connector	Frequency - Max [Max]	1st Connector Mounting Type	Color	Cable Type	1st Contact Gender	2nd Contact Gender	Overall Impedance	Length [x]	Length [x]
Amphenol Custom Cable Q-7004R000M108I	50 Ohms	TNC Jack	50 Ohms	2.7 m	9 ft	108 in	Free Hanging (In-Line)	Shielded	RP-SMA to TNC	RP-SMA Jack	6000 MHz	Free Hanging (In-Line)	Black	LMR 240	Male	Female	50 Ohms
Amphenol Custom Cable Q-7004R000M036I	50 Ohms	TNC Jack	50 Ohms	91.44 cm		36 in	Free Hanging (In-Line)	Shielded	RP-SMA to TNC	RP-SMA Jack	6000 MHz	Free Hanging (In-Line)	Black	LMR 240	Male	Female	50 Ohms
Amphenol Custom Cable Q-7004R000M018I	50 Ohms	TNC Jack	50 Ohms				Free Hanging (In-Line)	Shielded	RP-SMA to TNC	RP-SMA Jack	6000 MHz	Free Hanging (In-Line)	Black	LMR 240	Male	Female	50 Ohms	457.2 mm	457.2 mm
Amphenol Custom Cable Q-7004R000M084I	50 Ohms	TNC Jack	50 Ohms	2.1 m	7 ft	84 in	Free Hanging (In-Line)	Shielded	RP-SMA to TNC	RP-SMA Jack	6000 MHz	Free Hanging (In-Line)	Black	LMR 240	Male	Female	50 Ohms
Amphenol Custom Cable Q-7004R000M012I	50 Ohms	TNC Jack	50 Ohms	304.8 mm		12 "	Free Hanging (In-Line)	Shielded	RP-SMA to TNC	RP-SMA Jack	6000 MHz	Free Hanging (In-Line)	Black	LMR 240	Male	Female	50 Ohms
Amphenol Custom Cable Q-7004R000M060I	50 Ohms	TNC Jack	50 Ohms	1.5 m	5 ft	5 '	Free Hanging (In-Line)	Shielded	RP-SMA to TNC	RP-SMA Jack	6000 MHz	Free Hanging (In-Line)	Black	LMR 240	Male	Female	50 Ohms
Amphenol Custom Cable Q-7004R000M001M	50 Ohms	TNC Jack	50 Ohms	1 m	3.3 ft	39.4 in	Free Hanging (In-Line)	Shielded	RP-SMA to TNC	RP-SMA Jack	6000 MHz	Free Hanging (In-Line)	Black	LMR 240	Male	Female	50 Ohms
Amphenol Custom Cable Q-7004R000M002M	50 Ohms	TNC Jack	50 Ohms	2 m	6.6 ft	78.7 in	Free Hanging (In-Line)	Shielded	RP-SMA to TNC	RP-SMA Jack	6000 MHz	Free Hanging (In-Line)	Black	LMR 240	Male	Female	50 Ohms
Amphenol Custom Cable Q-7004R000M.75M	50 Ohms	TNC Jack	50 Ohms	750 mm		29.53 "	Free Hanging (In-Line)	Shielded	RP-SMA to TNC	RP-SMA Jack	6000 MHz	Free Hanging (In-Line)	Black	LMR 240	Male	Female	50 Ohms
Amphenol Custom Cable Q-7004R000M003M	50 Ohms	TNC Jack	50 Ohms	3 m	9.8 '	118.1 in	Free Hanging (In-Line)	Shielded	RP-SMA to TNC	RP-SMA Jack	6000 MHz	Free Hanging (In-Line)	Black	LMR 240	Male	Female	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 106.91
		25	$ 104.84
		50	$ 102.76
		100	$ 100.69
		250	$ 98.62

Description

General part information

Q-7004R0 Series

Cable Assembly Coaxial RP-SMA to TNC LMR 240 84.0" (2.1m) 7.0'

Documents

Technical documentation and resources

No documents available
