4009-256-SS
ActiveRAF Electronic Hardware
3/16 RD X 3/4 LENGTH
Deep-Dive with AI
Search across all available documentation for this part.
4009-256-SS
ActiveRAF Electronic Hardware
3/16 RD X 3/4 LENGTH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4009-256-SS |
|---|---|
| Between Board Height | 0.75 in |
| Between Board Height | 0.75 in |
| Between Board Height | 19.05 mm |
| Diameter - Outside [diameter] | 4.76 mm |
| Diameter - Outside [diameter] | 0.188 " |
| Gender | Female |
| Length - Overall [x] | 0.75 in |
| Length - Overall [x] | 19.05 mm |
| Length - Overall [x] | 0.75 in |
| Material | Stainless Steel |
| Screw, Thread Size | #2-56 |
| Threaded/Unthreaded | Threaded |
| Type | Round Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.58 | |
| 5 | $ 3.40 | |||
| 10 | $ 3.31 | |||
| 25 | $ 3.22 | |||
| 50 | $ 3.13 | |||
| 100 | $ 2.95 | |||
Description
General part information
4009-256 Series

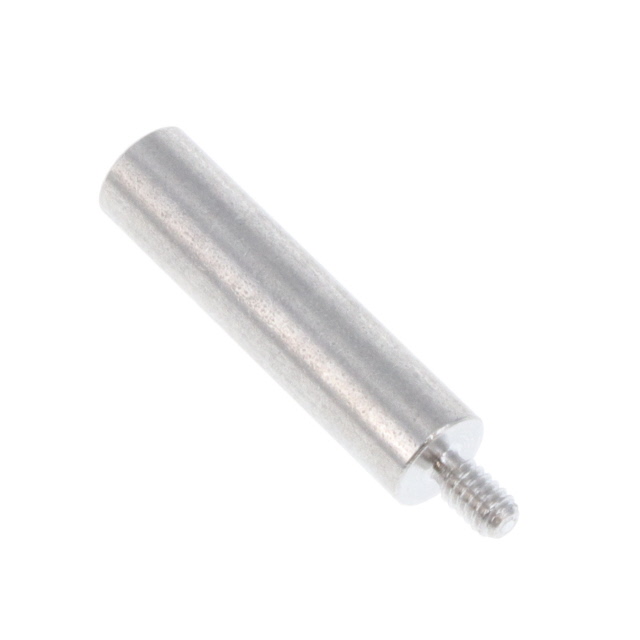

Round Standoff Threaded #2-56 Stainless Steel 0.750" (19.05mm) 3/4"
Documents
Technical documentation and resources
No documents available
