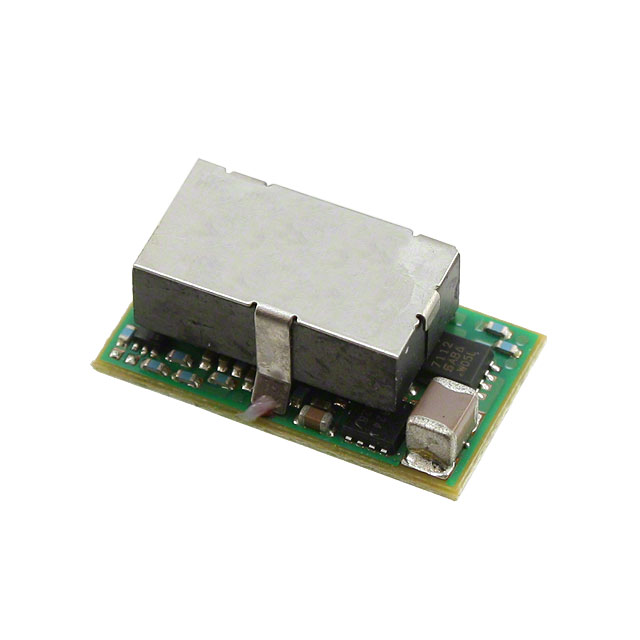

APTH012A0X3-SRZ

Active

OmniOn Power™

DC DC CONVERTER 0.6-3.6V 44W

Search across all available documentation for this part.

Active

OmniOn Power™

DC DC CONVERTER 0.6-3.6V 44W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	250	$ 14.71

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 3.6V 12A 2.4V - 5.5V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	APTH012A0X3-SRZ	APTH012 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active Low, Enable	Active Low, Enable, Active High
Current - Output (Max) [Max]	12 A	12 A
Efficiency	94 %	94 - 94.6 %
Features	Remote On/Off, UVLO, OCP, OTP	Remote On/Off, UVLO, OCP, OTP
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	10-SMD Module	10-SMD Module, Module
Power (Watts)	44 W	44 W
Size / Dimension [x]	20.3 mm	20.3 mm
Size / Dimension [x]	0.8 "	0.8 "
Size / Dimension [y]	0.45 in	0.45 in
Size / Dimension [y]	11.4 mm	11.4 mm
Size / Dimension [z]	8.5 mm	8.5 mm
Size / Dimension [z]	0.33 in	0.33 in
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	5.5 V	5.5 V
Voltage - Input (Min) [Min]	2.4 V	2.4 V
Voltage - Output 1 [Max]	3.6 V	3.6 - 3.63 V
Voltage - Output 1 [Min]	0.6 V	0.6 V

DC DC CONVERTER 0.6-3.6V 44W

Part	Control Features	Voltage - Input (Min) [Min]	Mounting Type	Features	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Current - Output (Max) [Max]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Package / Case	Power (Watts)	Type	Applications
OmniOn Power™ APTH012A0X3-SRZ	Active Low, Enable	2.4 V	Surface Mount	OCP, OTP, Remote On/Off, UVLO	5.5 V	20.3 mm	8.5 mm	0.33 in	0.8 "	0.45 in	11.4 mm	94 %	12 A	0.6 V	3.6 V	85 °C	-40 °C	1	10-SMD Module	44 W	Non-Isolated PoL Module	ITE (Commercial)
OmniOn Power™ APTH012A0X43-SRZ	Active High, Enable	2.4 V	Surface Mount	OCP, OTP, Remote On/Off, UVLO	5.5 V	20.3 mm	8.5 mm	0.33 in	0.8 "	0.45 in	11.4 mm	94.6 %	12 A	0.6 V	3.63 V	85 °C	-40 °C	1	Module	44 W	Non-Isolated PoL Module	ITE (Commercial)
OmniOn Power™ APTH012A0X43-SRZ	Active High, Enable	2.4 V	Surface Mount	OCP, OTP, Remote On/Off, UVLO	5.5 V	20.3 mm	8.5 mm	0.33 in	0.8 "	0.45 in	11.4 mm	94.6 %	12 A	0.6 V	3.63 V	85 °C	-40 °C	1	Module	44 W	Non-Isolated PoL Module	ITE (Commercial)
