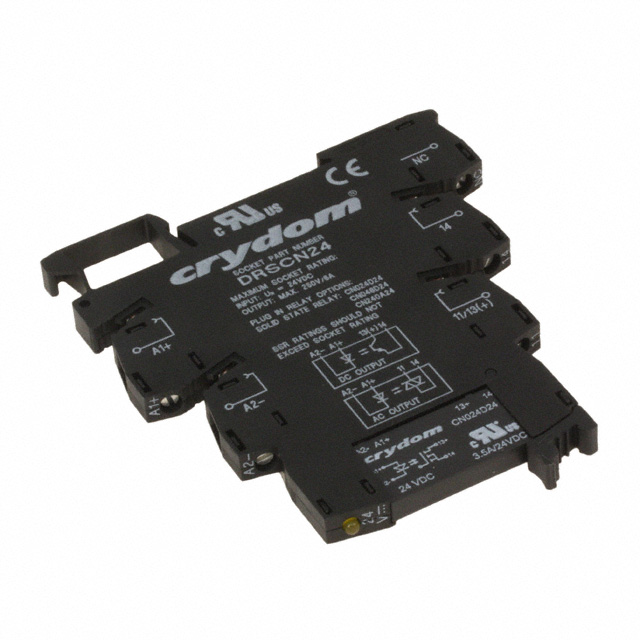

DRA-CN240A05
ActiveSensata-Crydom
SSR RELAY SPST-NO 2A 24-250V
Deep-Dive with AI
Search across all available documentation for this part.
DRA-CN240A05
ActiveSensata-Crydom
SSR RELAY SPST-NO 2A 24-250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DRA-CN240A05 |
|---|---|
| Approval Agency | CE, cURus, UR |
| Load Current | 2 A |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | AC, Zero Cross |
| Package / Case | Module |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 12 V |
| Voltage - Input [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 56.27 | |
| 10 | $ 53.59 | |||
| 50 | $ 51.15 | |||
| 100 | $ 49.65 | |||
Description
General part information
DRA-CN24 Series
Solid State SPST-NO (1 Form A) Module
