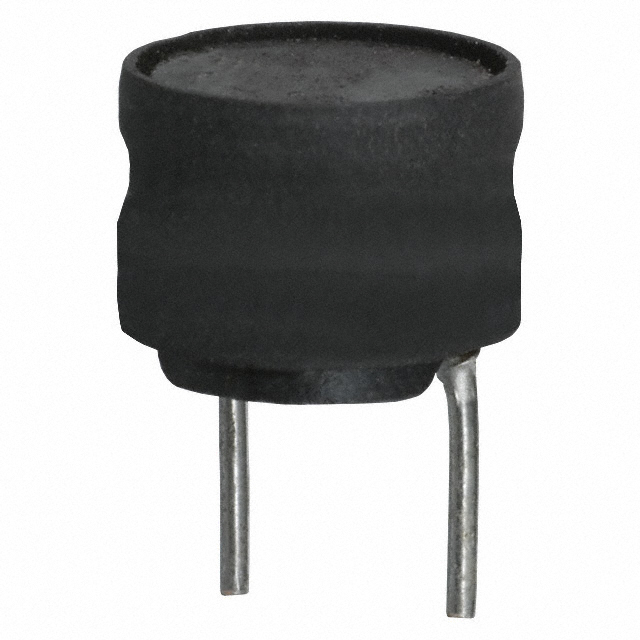

RL262-153J-RC

Obsolete

FIXED IND 15MH 20MA 80 OHM TH

Obsolete

FIXED IND 15MH 20MA 80 OHM TH

Description

General part information

15 mH Unshielded Drum Core, Wirewound Inductor 20 mA 80Ohm Max Radial, Vertical Cylinder

Parameters and characteristics for this part

Part	Mounting Type	Size / Dimension Diameter	Material - Core	Height - Seated (Max)	Type	Tolerance	Shielding	DC Resistance (DCR) (Max)	Q	Current Rating	Frequency - Self Resonant	Package / Case	Inductance Frequency - Test	Inductance	Operating Temperature (Min)	Operating Temperature (Max)
Bourns Inc. RL262-103J-RC	Through Hole	0.315 in	Ferrite	0.244 in	Drum Core Wirewound	5 %	Unshielded	55 Ohm	60	0.02 A	600 kHz	Radial Vertical Cylinder	79.6 kHz	10 mH	-55 °C	105 °C
Bourns Inc. RL262-682J-RC	Through Hole	0.315 in	Ferrite	0.244 in	Drum Core Wirewound	5 %	Unshielded	40 Ohm	80	30 mA	700 kHz	Radial Vertical Cylinder	252 kHz	6.8 mH	-55 °C	105 °C
Bourns Inc. RL262-822J-RC	Through Hole	0.315 in	Ferrite	0.244 in	Drum Core Wirewound	5 %	Unshielded	45 Ohm	80	30 mA	600 kHz	Radial Vertical Cylinder	252 kHz	8.2 mH	-55 °C	105 °C
Bourns Inc. RL262-681J-RC	Through Hole	0.315 in	Ferrite	0.244 in	Drum Core Wirewound	5 %	Unshielded	6 Ohm	60	100 mA	2.7 MHz	Radial Vertical Cylinder	796 kHz	680 µH	-55 °C	105 °C
Bourns Inc. RL262-153J-RC	Through Hole	0.315 in	Ferrite	0.244 in	Drum Core Wirewound	5 %	Unshielded	80 Ohm	60	0.02 A	500 kHz	Radial Vertical Cylinder	79.6 kHz	15 mH	-55 °C	105 °C
Bourns Inc. RL262-222J-RC	Through Hole	0.315 in	Ferrite	0.244 in	Drum Core Wirewound	5 %	Unshielded	14 Ohm	80	50 mA	1.5 MHz	Radial Vertical Cylinder	252 kHz	2.2 mH	-55 °C	105 °C
Bourns Inc. RL262-472J-RC	Through Hole	0.315 in	Ferrite	0.244 in	Drum Core Wirewound	5 %	Unshielded	32 Ohm	80	40 mA	800 kHz	Radial Vertical Cylinder	252 kHz	4.7 mH	-55 °C	105 °C
