20011957-00
ActiveTE Connectivity Measurement Specialties

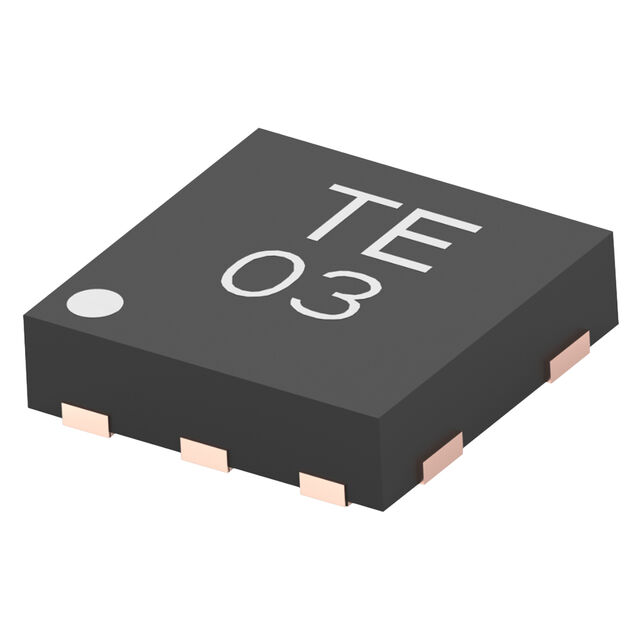

TSYS03 TEMP SENSOR TDFN8 2.5X2.5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
20011957-00
ActiveTE Connectivity Measurement Specialties
TSYS03 TEMP SENSOR TDFN8 2.5X2.5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 20011957-00 |
|---|---|
| Features | Standby Mode |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | I2C |
| Package / Case | 8-WFDFN Exposed Pad |
| Resolution | 16 b |
| Sensing Temperature - Local [Max] | 125 °C |
| Sensing Temperature - Local [Min] | -40 °C |
| Sensor Type | Digital, Local |
| Supplier Device Package | 8-TDFN (2.5x2.5) |
| Test Condition | 0°C ~ 60°C (-40°C ~ 125°C) |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.38 | |
| 5 | $ 1.16 | |||
| 10 | $ 1.08 | |||
| 25 | $ 0.98 | |||
| 50 | $ 0.91 | |||
| 100 | $ 0.84 | |||
| 500 | $ 0.71 | |||
| 1000 | $ 0.66 | |||
| Tape & Reel (TR) | 3000 | $ 0.58 | ||
| 6000 | $ 0.54 | |||
| 9000 | $ 0.51 | |||
| 15000 | $ 0.49 | |||
| 21000 | $ 0.47 | |||
Description
General part information
2001 Series
Temperature Sensor Digital, Local -40°C ~ 125°C 16 b 8-TDFN (2.5x2.5)
