Q-0J04G0005018i

Active

Amphenol Custom Cable

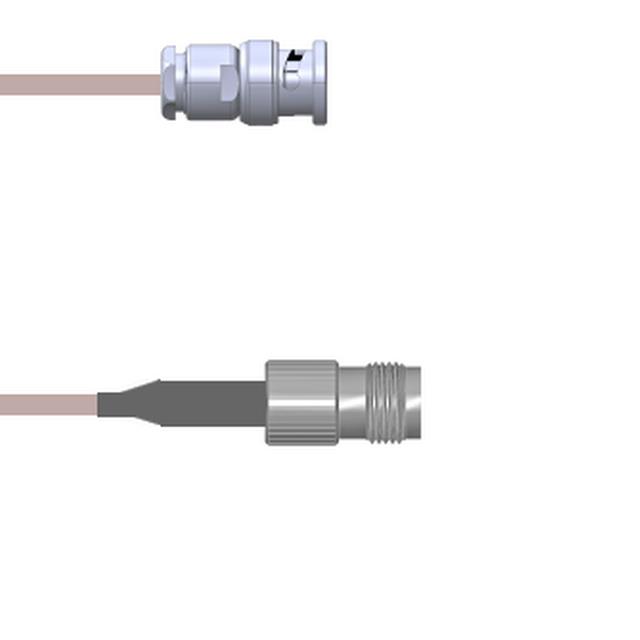

CBL ASSY BNC-TNC PLUG-JACK 18"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC PLUG-JACK 18"

Technical Specifications

Parameters and characteristics for this part

Part	2nd Contact Gender	2nd Connector	Cable Type	Features	Length	Length	Style	1st Contact Gender	Frequency - Max [Max]	1st Connector	1st Connector Mounting Type	Overall Impedance	Color	2nd Connector Mounting Type	Length [x]	Length [x]	Length
Amphenol Custom Cable Q-0J04G0005024i	Female	TNC Jack	RG-316	Shielded	24 "	609.6 mm	BNC to TNC	Male	4 GHz	BNC Plug	Free Hanging (In-Line)	50 Ohms	Copper	Free Hanging (In-Line)
Amphenol Custom Cable Q-0J04G0003009i	Female	TNC Jack	RG-174	Shielded	9 "	228.6 mm	BNC to TNC	Male	4 GHz	BNC Plug	Free Hanging (In-Line)	50 Ohms	Black	Free Hanging (In-Line)
Amphenol Custom Cable Q-0J04G0005018i	Female	TNC Jack	RG-316	Shielded			BNC to TNC	Male	4 GHz	BNC Plug	Free Hanging (In-Line)	50 Ohms	Copper	Free Hanging (In-Line)	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0J04G0005072i	Female	TNC Jack	RG-316	Shielded	72 in	1.8 m	BNC to TNC	Male	4 GHz	BNC Plug	Free Hanging (In-Line)	50 Ohms	Copper	Free Hanging (In-Line)			6 ft
Amphenol Custom Cable Q-0J04G00051.5M	Female	TNC Jack	RG-316	Shielded	59.1 in	1.5 m	BNC to TNC	Male	4 GHz	BNC Plug	Free Hanging (In-Line)	50 Ohms	Copper	Free Hanging (In-Line)			4.9 ft
Amphenol Custom Cable Q-0J04G0005060i	Female	TNC Jack	RG-316	Shielded	5 '	1.5 m	BNC to TNC	Male	4 GHz	BNC Plug	Free Hanging (In-Line)	50 Ohms	Copper	Free Hanging (In-Line)			5 ft
Amphenol Custom Cable Q-0J04G0003003i	Female	TNC Jack	RG-174	Shielded	3 in	76.2 mm	BNC to TNC	Male	4 GHz	BNC Plug	Free Hanging (In-Line)	50 Ohms	Black	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to TNC RG-316 18.00" (457.20mm)

Technical documentation and resources

No documents available
