SSF-LXH305SGD

Active

Lumex Opto/Components Inc.

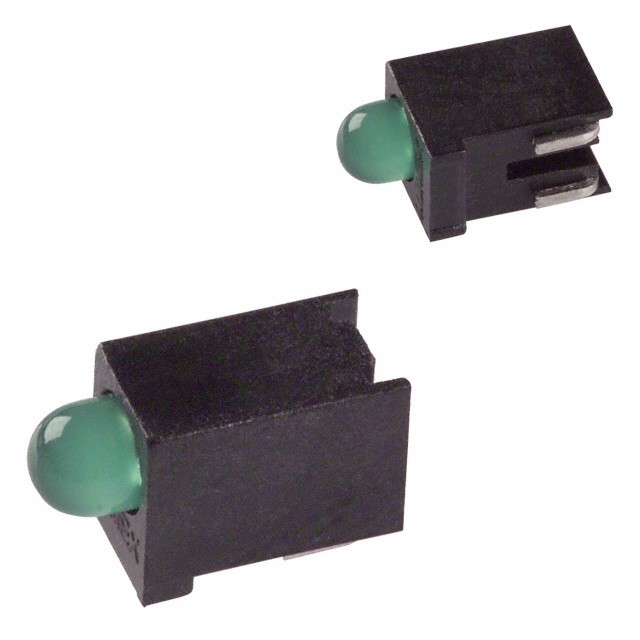

LED CBI T-3MM GRN DIFF SMD RA

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED CBI T-3MM GRN DIFF SMD RA

Technical Specifications

Parameters and characteristics commom to parts in this series

LED CBI 3MM YELLOW SMD RA

Part	Color	Lens Type	Voltage Rating	Wavelength - Peak	Mounting Type	Configuration	Lens Style	Millicandela Rating	Lens Size	Lens Size	Viewing Angle
Lumex Opto/Components Inc. SSF-LXH305YD-TR	Yellow	Diffused, Tinted	2.1 V	585 nm	Surface Mount, Right Angle	Single	Round with Domed Top	30 mcd	3 mm	T-1	60 °
Lumex Opto/Components Inc. SSF-LXH305SID-TR	Red	Diffused, Tinted	2 V	636 nm	Surface Mount, Right Angle	Single	Round with Domed Top	100 mcd	3 mm	T-1	60 °
Lumex Opto/Components Inc. SSF-LXH305GD-TR	Green	Diffused, Tinted		565 nm	Surface Mount, Right Angle	Single	Round with Domed Top	30 mcd	3 mm	T-1	60 °
Lumex Opto/Components Inc. SSF-LXH305SYD	Yellow	Diffused, Tinted	2.1 V	590 nm	Surface Mount, Right Angle	Single		250 mcd			60 °
Lumex Opto/Components Inc. SSF-LXH305GD	Green	Diffused, Tinted		565 nm	Surface Mount, Right Angle	Single		30 mcd			60 °
Lumex Opto/Components Inc. SSF-LXH305SRD-TR	Red	Diffused, Tinted	1.7 V	660 nm	Surface Mount, Right Angle	Single	Round with Domed Top	80 mcd	3 mm	T-1	60 °
Lumex Opto/Components Inc. SSF-LXH305SGD-TR	Green	Diffused, Tinted		565 nm	Surface Mount, Right Angle	Single	Round with Domed Top	150 mcd	3 mm	T-1	60 °
Lumex Opto/Components Inc. SSF-LXH305ID	Red	Diffused, Tinted	2 V	635 nm	Surface Mount, Right Angle	Single		40 mcd			60 °
Lumex Opto/Components Inc. SSF-LXH305SOD-TR		Diffused, Tinted	2.1 V	610 nm	Surface Mount, Right Angle	Single	Round with Domed Top	100 mcd	3 mm	T-1	60 °
Lumex Opto/Components Inc. SSF-LXH305USBD-TR	Blue	Diffused, Tinted			Surface Mount, Right Angle	Single	Round with Domed Top	80 mcd	3 mm	T-1	60 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.40

General part information

LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused, Tinted 2.2V 20mA Surface Mount, Right Angle

Technical documentation and resources

No documents available
