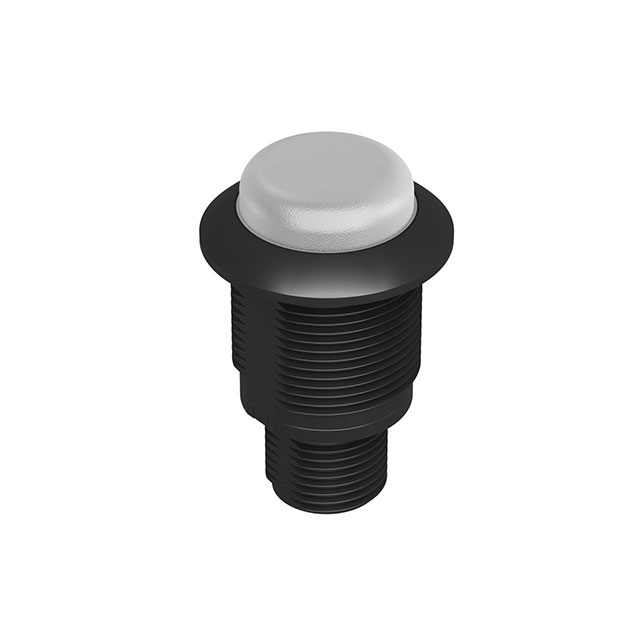

S18LGRXPQ

Active

BANNER ENGINEERING

LED PANEL MOUNT INDICATORS S18 EZ-LIGHT - 18 MM - IP67; TWO COLOR: GREEN RED; 10-30 V DC PNP INPUT; 4-PIN M12 QD

Search across all available documentation for this part.

Active

BANNER ENGINEERING

LED PANEL MOUNT INDICATORS S18 EZ-LIGHT - 18 MM - IP67; TWO COLOR: GREEN RED; 10-30 V DC PNP INPUT; 4-PIN M12 QD

Technical Specifications

Parameters and characteristics for this part

Part	Lamp Color	Voltage [Max]	Voltage [Min]	Panel Cutout Shape	Termination Style	Ingress Protection	Viewing Angle	Current	Type	Lens Size [diameter]	Ratings	Lens Transparency	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Panel Cutout Dimensions	Panel Cutout Dimensions	Millicandela Rating
BANNER ENGINEERING S18LGRXPQP-807856	Green Red	30 V	10 V	Round	Quick Connect	IP67 IP69K	180 °	25 mA	LED	16 mm	DC
BANNER ENGINEERING S18LGYXNQ	Green Yellow	30 V	10 V	Round	Quick Connect	IP67 IP69K	180 °	25 mA	LED	16 mm	DC
BANNER ENGINEERING S18LGRYPQ	Green Red Yellow	30 V	10 V	Round	Quick Connect	IP67 IP69K NEMA 4X		25 mA	LED		DC	Diffused	4.1 mcd	0.8 mcd	1.1 mcd	0.709 in	18 mm
BANNER ENGINEERING S18LGROPQ	Green Orange Red	30 V	10 V	Round	Quick Connect	IP67 IP69K	180 °	25 mA	LED	16 mm	DC
BANNER ENGINEERING S18LGXXPQ	Green	30 V	10 V	Round	Quick Connect	IP67 IP69K NEMA 4X		25 mA	LED		DC	Diffused				0.709 in	18 mm	4.1 mcd
BANNER ENGINEERING S18LGRXPQ	Green Red	30 V	10 V	Round	Quick Connect	IP67 IP69K NEMA 4X		25 mA	LED		DC	Diffused	4.1 mcd		1.1 mcd	0.709 in	18 mm
BANNER ENGINEERING S18LGRYNT	Green Red Yellow	30 V	10 V	Round	Screw Terminal	IP67 IP69K	180 °	25 mA	LED	16 mm	DC
BANNER ENGINEERING S18LGXRPQ	Green Red	30 V	10 V	Round	Quick Connect	IP67 IP69K NEMA 4X		25 mA	LED		DC	Clear	4.1 mcd		1.1 mcd	0.71 "	18 mm
BANNER ENGINEERING S18LGRYPQP	Green Red Yellow	30 V	10 V	Round	Wire Leads	IP67 IP69K NEMA 4X		25 mA	LED		DC	Clear	4.1 mcd	0.8 mcd	1.1 mcd	0.71 "	18 mm
BANNER ENGINEERING S18LGWBPQ	Blue Green White	30 V	10 V	Round	Quick Connect	IP67 IP69K	180 °	25 mA	LED	16 mm	DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 41.00
Newark	Each	1	$ 42.00

General part information

LED Panel Indicator Green, Red Diffused 10V ~ 30V 25mA Quick Connect
