14AP-L1-03-R

Active

Grayhill Inc.

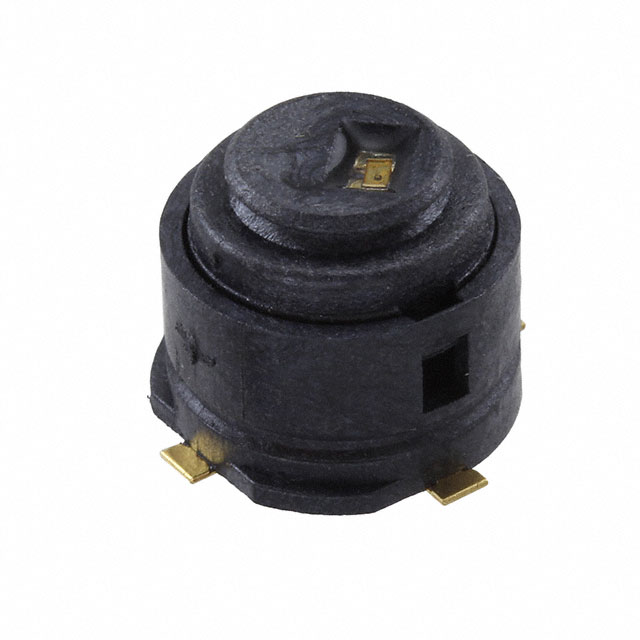

SWITCH PUSH SPST-NO .1A 30V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH PUSH SPST-NO .1A 30V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	14AP-L1-03-R	14AP-L1 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button
Circuit	SPST-NO	SPST-NO
Color - Actuator/Cap	Clear	Clear
Current Rating (Amps)	100 mA	100 mA
Electrical Life	100000 Cycles	100000 - 200000 Cycles
Features	Board Guide	Board Guide
Illumination Type, Color	Red, LED	White, LED, Red, Yellow, Blue
Illumination Voltage (Nominal)	2 VDC	2 - 2.85 VDC
Mechanical Life	100000 Cycles	100000 - 200000 Cycles
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Switch Function	Off-Mom	Off-Mom
Termination Style	SMD (SMT) Tab	SMD (SMT) Tab
Type	Keyswitch, Illuminated	Keyswitch, Illuminated
Voltage Rating - DC	30 V	30 V

SWITCH PUSH SPST-NO .1A 30V

Part	Actuator Marking	Mounting Type	Illumination Type, Color	Switch Function	Circuit	Actuator Type	Illumination Voltage (Nominal)	Color - Actuator/Cap	Current Rating (Amps)	Electrical Life	Features	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Type	Termination Style	Voltage Rating - DC
Grayhill Inc. 14AP-L1-03-W	No Marking	Surface Mount	LED, White	Off-Mom	SPST-NO	Button, Round	2.85 VDC	Clear	100 mA	100000 Cycles	Board Guide	100000 Cycles	85 °C	-40 °C	Keyswitch, Illuminated	SMD (SMT) Tab	30 V
Grayhill Inc. 14AP-L1-03-R	No Marking	Surface Mount	LED, Red	Off-Mom	SPST-NO	Button, Round	2 VDC	Clear	100 mA	100000 Cycles	Board Guide	100000 Cycles	85 °C	-40 °C	Keyswitch, Illuminated	SMD (SMT) Tab	30 V
Grayhill Inc. 14AP-L1-02-R	No Marking	Surface Mount	LED, Red	Off-Mom	SPST-NO	Button, Round	2 VDC	Clear	100 mA	200000 Cycles	Board Guide	200000 Cycles	85 °C	-40 °C	Keyswitch, Illuminated	SMD (SMT) Tab	30 V
Grayhill Inc. 14AP-L1-03-Y	No Marking	Surface Mount	LED, Yellow	Off-Mom	SPST-NO	Button, Round	2 VDC	Clear	100 mA	100000 Cycles	Board Guide	100000 Cycles	85 °C	-40 °C	Keyswitch, Illuminated	SMD (SMT) Tab	30 V
Grayhill Inc. 14AP-L1-03-B	No Marking	Surface Mount	Blue, LED	Off-Mom	SPST-NO	Button, Round	2.85 VDC	Clear	100 mA	100000 Cycles	Board Guide	100000 Cycles	85 °C	-40 °C	Keyswitch, Illuminated	SMD (SMT) Tab	30 V
