2004-1291

Active

WAGO Corporation

END COVER, FOR USE WITH DIN RAIL TOPJOB S TERMINAL BLOCKS, GREY

Search across all available documentation for this part.

Active

WAGO Corporation

END COVER, FOR USE WITH DIN RAIL TOPJOB S TERMINAL BLOCKS, GREY

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2004-1291	2004-12 Series

Color	Gray	Gray, Green, Yellow, Blue
Current - IEC	-	41 A
Current - UL	-	30 A
For Use With/Related Products	TOPJOB®S Series	TOPJOB®S Series
Material - Insulation	-	Polyamide (PA66), Nylon 6/6
Number of Levels	-	1
Number of Positions	-	2
Stripping Length	-	13 mm
Stripping Length	-	11 mm
Terminal - Width	-	6.2 mm
Termination Style	-	Push In, Spring
Type	End Plate	Feed Through, End Plate, Ground, Earth
Voltage - IEC	-	800 V
Voltage - UL	-	600 V
Wire Gauge or Range - AWG	-	14 AWG
Wire Gauge or Range - AWG	-	10 AWG
Wire Gauge or Range - mm²	-	6 mm²
Wire Gauge or Range - mm²	-	1.5 mm²

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 10 AWG, 4 MM², CLAMP, 32 A

Part	Number of Levels	Current - IEC	Color	Terminal - Width [y]	Voltage - UL	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Termination Style	Current - UL	Stripping Length [Max]	Stripping Length [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Material - Insulation	Voltage - IEC	Number of Positions	For Use With/Related Products
WAGO Corporation 2004-1201	1	41 A	Gray	6.2 mm	600 V	Feed Through	14 AWG	10 AWG	Push In, Spring	30 A	13 mm	11 mm	6 mm²	1.5 mm²	Polyamide (PA66), Nylon 6/6	800 V	2
WAGO Corporation 2004-1291			Gray			End Plate												TOPJOB®S Series
WAGO Corporation 2004-1207	1		Green, Yellow	6.2 mm		Ground, Earth	14 AWG	10 AWG	Push In, Spring		13 mm	11 mm	6 mm²	1.5 mm²	Polyamide (PA66), Nylon 6/6		2
WAGO Corporation 2004-1292						End Plate												TOPJOB®S Series
WAGO Corporation 2004-1204	1	41 A	Blue	6.2 mm	600 V	Feed Through	14 AWG	10 AWG	Push In, Spring	30 A	13 mm	11 mm	6 mm²	1.5 mm²	Polyamide (PA66), Nylon 6/6	800 V	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

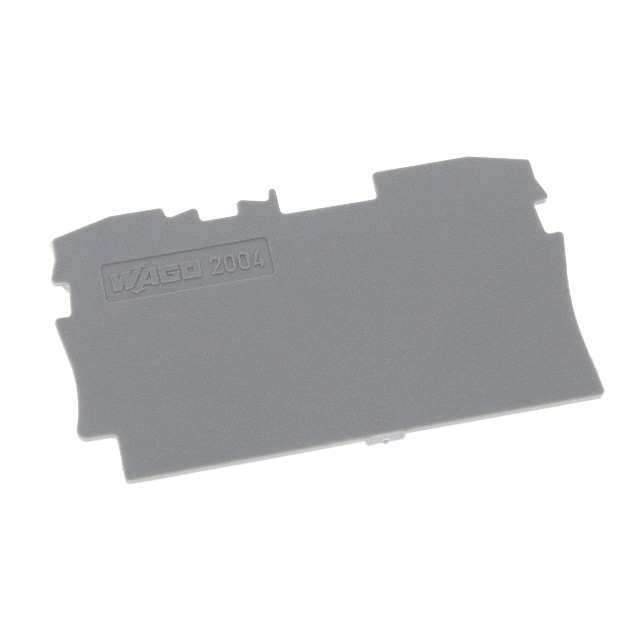

The 2004-1291 is a 1mm gray End and Intermediate Plate suitable for use with the TOPJOB® S rail-mounted terminal blocks.
