YHDP24-24-18PEL024
ActiveTE Connectivity Deutsch Connectors

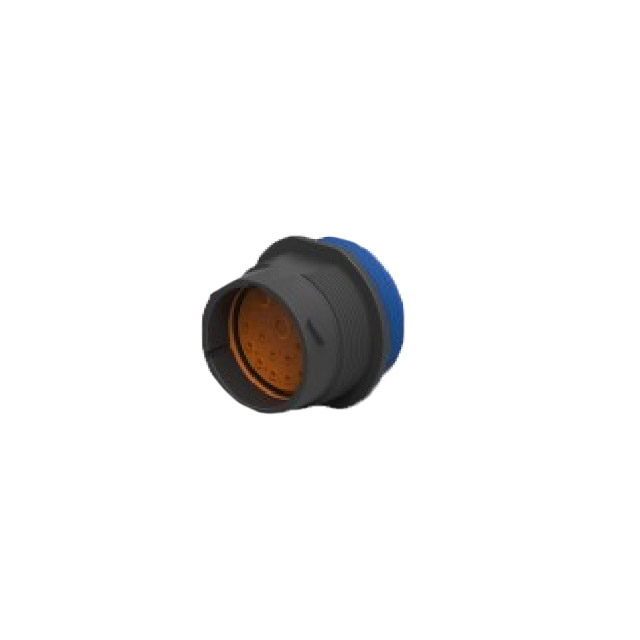

RCPT, SIZE 24, HDP, -L024
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
YHDP24-24-18PEL024
ActiveTE Connectivity Deutsch Connectors
RCPT, SIZE 24, HDP, -L024
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | YHDP24-24-18PEL024 | YHDP24 Series |
|---|---|---|
| Connector Type | Receptacle Housing | Receptacle Housing |
| Contact Shape | Circular | Circular |
| Contact Size | 12 (3), 8 (1), 16 (14) | 12 (3), 8 (1), 16 (14) |
| Contact Size | - | 12 - 20 |
| Contact Size | - | 6 - 13 |
| Contact Type | Crimp | Crimp |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Threading Adapter | Threading Adapter, Adapter, Dust Cap |
| Housing Color | Black | Black |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetherimide (PEI) | Polyetherimide (PEI) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0, UL94 V-1 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Note | Contacts Not Included, Jam Nut Not Included | Contacts Not Included, Jam Nut Not Included |
| Number of Positions | 18 | 14 - 31 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shell Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Shell Size - Insert | - | 24 |
| Shell Size - Insert | - | 29 |
| Shell Size - Insert | - | 24-19, 18-14 |
| Shell Size - Insert [Max] | 18 | 18 - 31 |
| Shell Size - Insert [Min] | 24 | 24 |
| Shielding | Unshielded | Unshielded |
| Type | For Male Pins | For Male Pins |
YHDP24 Series
RCPT, SIZE 24, HDP, -L024
| Part | Housing Color | Contact Size | Connector Type | Fastening Type | Shielding | Primary Material | Insert Material | Mounting Feature | Number of Positions | Orientation | Features | Type | Shell Material | Shell Size - Insert [Min] [diameter] | Shell Size - Insert [Max] [diameter] | Ingress Protection | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Contact Type | Note | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Shell Size - Insert | Contact Size | Contact Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Deutsch Connectors YHDP24-24-29PEL024 | Black | 12, 16, 20 | Receptacle Housing | Bayonet Lock | Unshielded | Plastic | Polyetherimide (PEI) | Bulkhead - Front Side Nut | 29 | Keyed | Threading Adapter | For Male Pins | Polyamide (PA66), Nylon 6/6, Glass Filled | 24 | 29 | IP68 - Dust Tight, Waterproof | UL94 V-0 | -55 °C | 125 °C | Circular | Crimp | Contacts Not Included, Jam Nut Not Included | |||||
TE Connectivity Deutsch Connectors YHDP24-24-31PEL024 | Black | 16 | Receptacle Housing | Bayonet Lock | Unshielded | Polyetherimide (PEI) | Bulkhead - Front Side Nut | 31 | Keyed | Adapter, Dust Cap | For Male Pins | Polyamide (PA66), Nylon 6/6, Glass Filled | IP68 - Dust Tight, Waterproof | UL94 V-1 | -55 °C | 125 °C | Circular | Crimp | Contacts Not Included, Jam Nut Not Included | 31 | 24 | ||||||
TE Connectivity Deutsch Connectors YHDP24-24-19PEL024 | Black | 12, 16 | Receptacle Housing | Bayonet Lock | Unshielded | Plastic | Polyetherimide (PEI) | Bulkhead - Front Side Nut | 19 | Keyed | Threading Adapter | For Male Pins | Polyamide (PA66), Nylon 6/6, Glass Filled | IP68 - Dust Tight, Waterproof | UL94 V-0 | -55 °C | 125 °C | Circular | Crimp | Contacts Not Included, Jam Nut Not Included | 24-19 | 6, 13 | |||||
TE Connectivity Deutsch Connectors YHDP24-24-18PEL024 | Black | Receptacle Housing | Bayonet Lock | Unshielded | Plastic | Polyetherimide (PEI) | Bulkhead - Front Side Nut | 18 | Keyed | Threading Adapter | For Male Pins | Polyamide (PA66), Nylon 6/6, Glass Filled | IP68 - Dust Tight, Waterproof | UL94 V-0 | -55 °C | 125 °C | Circular | Crimp | Contacts Not Included, Jam Nut Not Included | 18 | 24 | 12 (3), 16 (14), 8 (1) | |||||
TE Connectivity Deutsch Connectors YHDP24-18-14PEC041 | Black | 16 | Receptacle Housing | Bayonet Lock | Unshielded | Plastic | Polyetherimide (PEI) | Bulkhead - Front Side Nut | 14 | Keyed | For Male Pins | Polyamide (PA66), Nylon 6/6, Glass Filled | IP68 - Dust Tight, Waterproof | UL94 V-0 | -55 °C | 125 °C | Circular | Crimp | Contacts Not Included, Jam Nut Not Included | 18-14 | |||||||
TE Connectivity Deutsch Connectors YHDP24-18-14PEL024 | Black | 16 | Receptacle Housing | Bayonet Lock | Unshielded | Plastic | Polyetherimide (PEI) | Bulkhead - Front Side Nut | 14 | Keyed | Threading Adapter | For Male Pins | Polyamide (PA66), Nylon 6/6, Glass Filled | IP68 - Dust Tight, Waterproof | UL94 V-0 | -55 °C | 125 °C | Circular | Crimp | Contacts Not Included, Jam Nut Not Included | 18-14 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 13.67 | |
| 10 | $ 13.01 | |||
Description
General part information
YHDP24 Series
18 Position Circular Connector Receptacle Housing Panel Mount Threading Adapter
