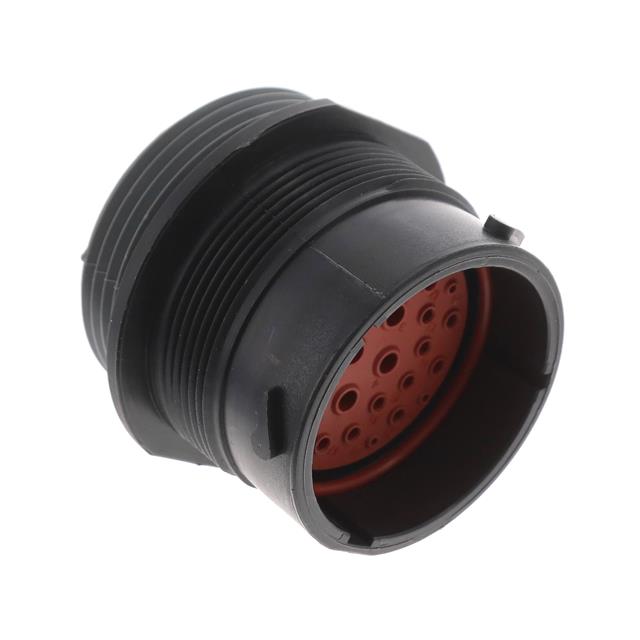

YHDP24-24-29PEL024

Active

TE Connectivity Deutsch Connectors

RCPT, SIZE 24, HDP, -L024

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YHDP24-24-29PEL024

Active

TE Connectivity Deutsch Connectors

RCPT, SIZE 24, HDP, -L024

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YHDP24-24-29PEL024	YHDP24 Series

Connector Type	Receptacle Housing	Receptacle Housing
Contact Shape	Circular	Circular
Contact Size	20, 16, 12	12 - 20
Contact Size	-	6 - 13
Contact Size	-	12 (3), 8 (1), 16 (14)
Contact Type	Crimp	Crimp
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Threading Adapter	Threading Adapter, Adapter, Dust Cap
Housing Color	Black	Black
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetherimide (PEI)	Polyetherimide (PEI)
Material Flammability Rating	UL94 V-0	UL94 V-0, UL94 V-1
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Note	Contacts Not Included, Jam Nut Not Included	Contacts Not Included, Jam Nut Not Included
Number of Positions	29	14 - 31
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled
Shell Size - Insert	-	18 - 31
Shell Size - Insert	-	24
Shell Size - Insert	-	24-19, 18-14
Shell Size - Insert [Max] [diameter]	29	29
Shell Size - Insert [Min] [diameter]	24	24
Shielding	Unshielded	Unshielded
Type	For Male Pins	For Male Pins

YHDP24 Series

RCPT, SIZE 24, HDP, -L024

Part	Housing Color	Contact Size	Connector Type	Fastening Type	Shielding	Primary Material	Insert Material	Mounting Feature	Number of Positions	Orientation	Features	Type	Shell Material	Shell Size - Insert [Min] [diameter]	Shell Size - Insert [Max] [diameter]	Ingress Protection	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Type	Note	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shell Size - Insert	Contact Size	Contact Size
TE Connectivity Deutsch Connectors YHDP24-24-29PEL024	Black	12, 16, 20	Receptacle Housing	Bayonet Lock	Unshielded	Plastic	Polyetherimide (PEI)	Bulkhead - Front Side Nut	29	Keyed	Threading Adapter	For Male Pins	Polyamide (PA66), Nylon 6/6, Glass Filled	24	29	IP68 - Dust Tight, Waterproof	UL94 V-0	-55 °C	125 °C	Circular	Crimp	Contacts Not Included, Jam Nut Not Included
TE Connectivity Deutsch Connectors YHDP24-24-31PEL024	Black	16	Receptacle Housing	Bayonet Lock	Unshielded		Polyetherimide (PEI)	Bulkhead - Front Side Nut	31	Keyed	Adapter, Dust Cap	For Male Pins	Polyamide (PA66), Nylon 6/6, Glass Filled			IP68 - Dust Tight, Waterproof	UL94 V-1	-55 °C	125 °C	Circular	Crimp	Contacts Not Included, Jam Nut Not Included	31	24
TE Connectivity Deutsch Connectors YHDP24-24-19PEL024	Black	12, 16	Receptacle Housing	Bayonet Lock	Unshielded	Plastic	Polyetherimide (PEI)	Bulkhead - Front Side Nut	19	Keyed	Threading Adapter	For Male Pins	Polyamide (PA66), Nylon 6/6, Glass Filled			IP68 - Dust Tight, Waterproof	UL94 V-0	-55 °C	125 °C	Circular	Crimp	Contacts Not Included, Jam Nut Not Included			24-19	6, 13
TE Connectivity Deutsch Connectors YHDP24-24-18PEL024	Black		Receptacle Housing	Bayonet Lock	Unshielded	Plastic	Polyetherimide (PEI)	Bulkhead - Front Side Nut	18	Keyed	Threading Adapter	For Male Pins	Polyamide (PA66), Nylon 6/6, Glass Filled			IP68 - Dust Tight, Waterproof	UL94 V-0	-55 °C	125 °C	Circular	Crimp	Contacts Not Included, Jam Nut Not Included	18	24			12 (3), 16 (14), 8 (1)
TE Connectivity Deutsch Connectors YHDP24-18-14PEC041	Black	16	Receptacle Housing	Bayonet Lock	Unshielded	Plastic	Polyetherimide (PEI)	Bulkhead - Front Side Nut	14	Keyed		For Male Pins	Polyamide (PA66), Nylon 6/6, Glass Filled			IP68 - Dust Tight, Waterproof	UL94 V-0	-55 °C	125 °C	Circular	Crimp	Contacts Not Included, Jam Nut Not Included			18-14
TE Connectivity Deutsch Connectors YHDP24-18-14PEL024	Black	16	Receptacle Housing	Bayonet Lock	Unshielded	Plastic	Polyetherimide (PEI)	Bulkhead - Front Side Nut	14	Keyed	Threading Adapter	For Male Pins	Polyamide (PA66), Nylon 6/6, Glass Filled			IP68 - Dust Tight, Waterproof	UL94 V-0	-55 °C	125 °C	Circular	Crimp	Contacts Not Included, Jam Nut Not Included			18-14

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.68
		10	$ 10.13
		30	$ 9.79

Description

General part information

YHDP24 Series

29 Position Circular Connector Receptacle Housing Panel Mount Threading Adapter
