62074-1
ActiveTE Connectivity AMP Connectors
125 DIA PIN 24-20 016BR ROHS COMPLIANT: YES
62074-1
ActiveTE Connectivity AMP Connectors
125 DIA PIN 24-20 016BR ROHS COMPLIANT: YES
Description
General part information
62074 Series

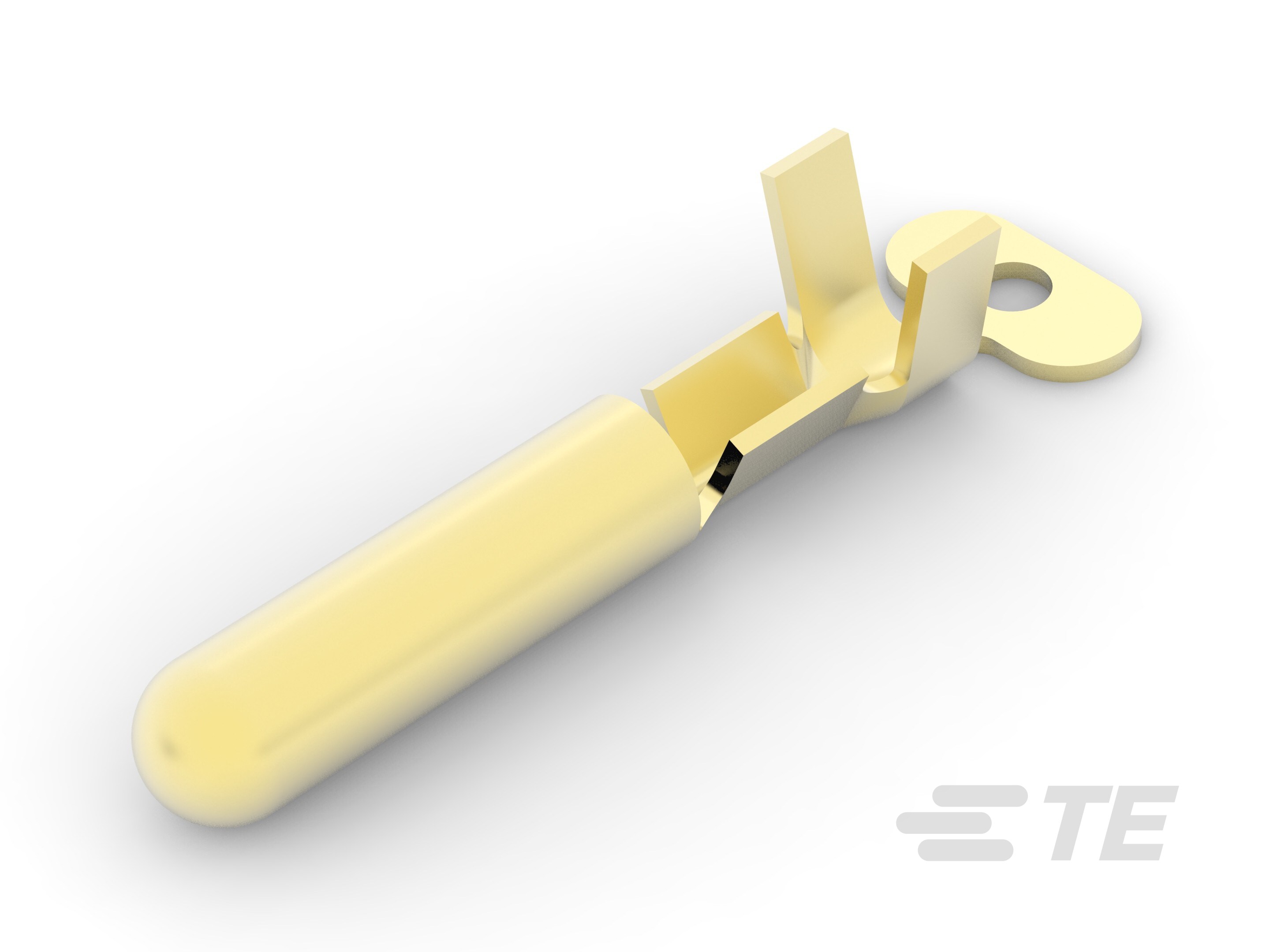

Pin, 3.17 mm [.125 in] Pin Diameter, 24 – 20 AWG, .2 – .6 mm² Wire, 404 – 1021 CMA, Open Barrel, Unplated Plating, 17.51 mm [.705 in] Length, Reel
Technical Specifications
Parameters and characteristics for this part
| Specification | 62074-1 |
|---|---|
| Contact Material | Brass |
| Diameter - Barrel | 0.125 in |
| Insulation | Non-Insulated |
| Insulation Diameter (Max) | 0.103 in |
| Insulation Diameter (Min) | 0.06 in |
| Length - Barrel | 0.45 in |
| Terminal Type | Male, Pin (Plug) |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
