BM03B-ZESS-TBT
ActiveJST Sales America Inc.

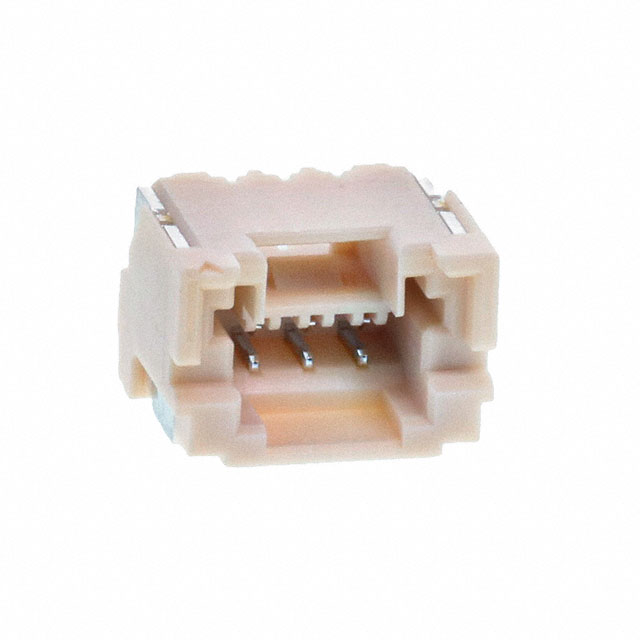

CONN HEADER SMD 3POS 1.5MM
Deep-Dive with AI
Search across all available documentation for this part.
BM03B-ZESS-TBT
ActiveJST Sales America Inc.
CONN HEADER SMD 3POS 1.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BM03B-ZESS-TBT |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Outer Shroud Contact |
| Current Rating (Amps) | 2 A |
| Fastening Type | Locking Ramp |
| Features | Pick and Place, Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 0.295 in |
| Insulation Height | 7.5 mm |
| Insulation Material | Polyamide (PA), Nylon |
| Mated Stacking Heights | 9.4 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.59 | |
| 10 | $ 0.50 | |||
| 100 | $ 0.43 | |||
| Digi-Reel® | 1 | $ 0.59 | ||
| 10 | $ 0.50 | |||
| 100 | $ 0.43 | |||
| Tape & Reel (TR) | 800 | $ 0.39 | ||
| 1600 | $ 0.37 | |||
| 2400 | $ 0.36 | |||
| 4000 | $ 0.35 | |||
| 5600 | $ 0.34 | |||
| 8000 | $ 0.33 | |||
| 20000 | $ 0.31 | |||
Description
General part information
BM03B-ZE Series
Connector Header Surface Mount 3 position 0.059" (1.50mm)
Documents
Technical documentation and resources
