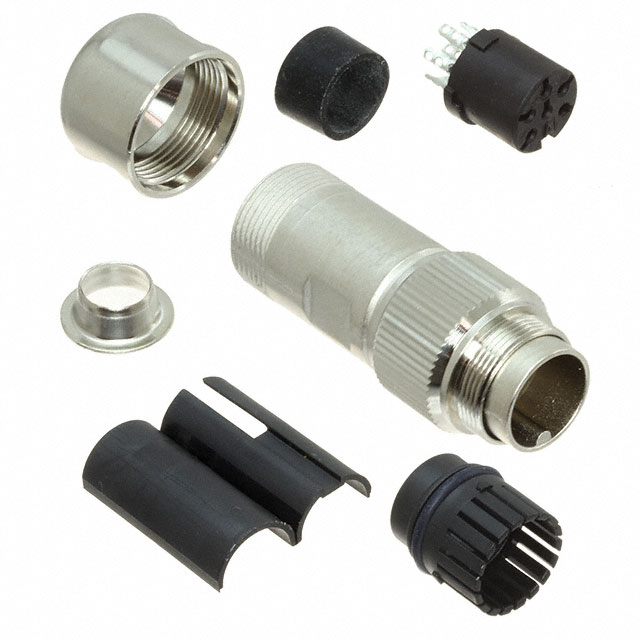

C09131D0061014U
ActiveAmphenol Tuchel Industrial
CONN PLUG FMALE 6P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C09131D0061014U
ActiveAmphenol Tuchel Industrial
CONN PLUG FMALE 6P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C09131D0061014U |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Ingress Protection | IP68, IP69K |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M16-6 |
C09131D Series
| Part | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Color | Shielding | Orientation | Voltage Rating | Connector Type | Shell Size - Insert | Contact Finish - Mating | Shell Finish | Current Rating (Amps) | Ingress Protection | Features | Shell Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Tuchel Industrial | Free Hanging (In-Line) | 100 °C | -40 °C | Metal | Silver | Shielded | Keyed | 60 VDC | Female Sockets Plug | M16-3 | Silver | Nickel | 10 A | IP65 IP67 IP69K | Strain Relief | Die Cast | |
Amphenol Tuchel Industrial | Free Hanging (In-Line) | 100 °C | -40 °C | Metal | Silver | Shielded | Keyed | 60 VDC | Female Sockets Plug | M16-5 | Silver | Nickel | 7 A | IP65 IP67 IP69K | Strain Relief | Die Cast | |
Amphenol Tuchel Industrial | Free Hanging (In-Line) | 100 °C | -40 °C | Metal | Silver | Keyed | Female Sockets Plug | M16-6 | Silver | Nickel | IP68 IP69K | Zinc Die Cast | 6 | ||||
Amphenol Tuchel Industrial | Free Hanging (In-Line) | 100 °C | -40 °C | Metal | Silver | Shielded | Keyed | 250 VDC | Female Sockets Plug | M16-12 | Gold | Nickel | 3 A | IP65 IP67 IP69K | Strain Relief | Die Cast | 12 |
Amphenol Tuchel Industrial | Free Hanging (In-Line) | 100 °C | -40 °C | Metal | Silver | Keyed | Female Sockets Plug | M16-8 | Silver | Nickel | IP68 IP69K | Zinc Die Cast | 8 | ||||
Amphenol Tuchel Industrial | Free Hanging (In-Line) | 100 °C | -40 °C | Metal | Silver | Shielded | Keyed | 60 VDC | Female Sockets Plug | M16-8 | Silver | Nickel | 7 A | IP65 IP67 IP69K | Strain Relief | Die Cast | 8 |
Amphenol Tuchel Industrial | Free Hanging (In-Line) | 100 °C | -40 °C | Metal | Silver | Shielded | Keyed | 60 VDC | Female Sockets Plug | M16-7 | Silver | Nickel | 7 A | IP65 IP67 IP69K | Strain Relief | Die Cast | 7 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 18.34 | |
Description
General part information
C09131D Series
6 Position Circular Connector Plug, Female Sockets Solder Cup
