AAA5MWZ

Active

Switchcraft Inc.

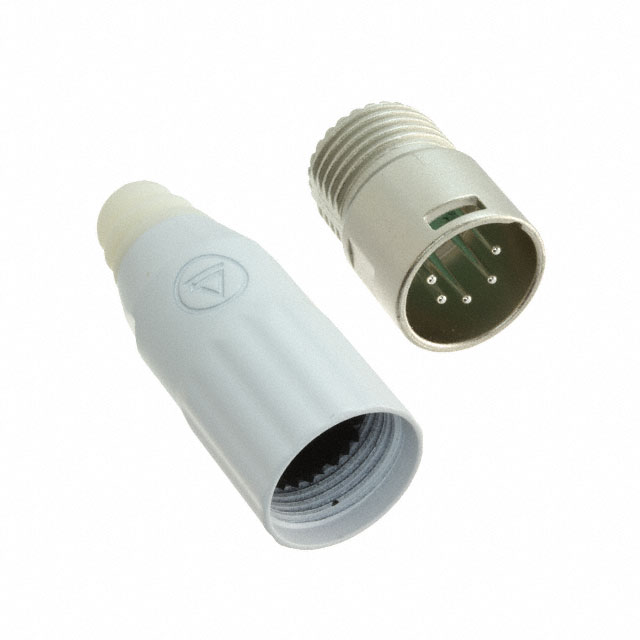

CONN RCPT MALE XLR 5P SOLDER CUP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE XLR 5P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	AAA5MWZ

Applications	Audio, Industrial, Instrumentation, Medical
Backshell Material, Plating	Nickel, Zinc Alloy
Cable Opening [diameter]	2.54 mm, 5.59 mm
Cable Opening [diameter]	0.1 in, 0.22 in
Color	White
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	XLR
Shielding	Shielded
Voltage Rating	125 VAC

CONN RCPT MALE XLR 5P SOLDER CUP

Part	Backshell Material, Plating	Orientation	Mounting Type	Shielding	Connector Type	Primary Material	Contact Finish - Mating	Color	Cable Opening [diameter]	Cable Opening [diameter]	Shell Finish	Voltage Rating	Applications	Shell Size - Insert	Shell Material	Current Rating (Amps)	Features	Fastening Type	Insert Material	Contact Material
Switchcraft Inc. AAA5MWZ	Nickel, Zinc Alloy	Keyed	Free Hanging (In-Line)	Shielded	Male Pins, Receptacle	Metal	Silver	White	2.54 mm, 5.59 mm	0.1 in, 0.22 in	Nickel	125 VAC	Audio, Industrial, Instrumentation, Medical	XLR	Zinc Alloy	7.5 A	Backshell, Cable Clamp, Ground, Strain Relief	Latch Lock	Thermoplastic	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 7.56

General part information

5 Position Circular Connector Receptacle, Male Pins Solder Cup
