CBPW-11

Active

Curtis Industries

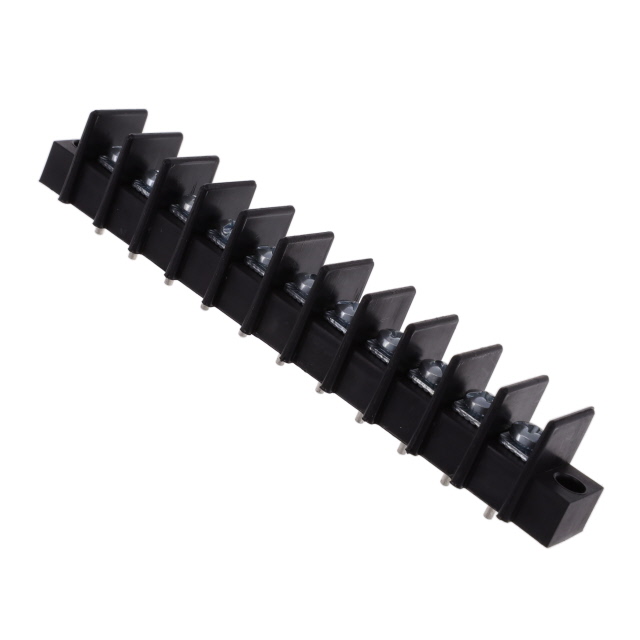

CONN BARRIER STRP 11CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CBPW-11

Active

Curtis Industries

CONN BARRIER STRP 11CIRC 0.375"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CBPW-11	CBPW Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	PC Pin	PC Pin
Color	Black	Black
Current Rating (Amps)	20 A	20 A
Features	Flange	Flange
Material - Insulation	Polyester Thermoplastic	Polyester Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole	Chassis, Panel, Through Hole
Number of Circuits	11	1 - 24
Number of Rows	1	1
Number of Wire Entries	11	5 - 21
Number of Wire Entries	-	1
Operating Temperature	140 °C	140 °C
Pitch [x]	9.53 mm	9.53 mm
Pitch [x]	0.375 in	0.375 in
Terminal Block Type	Barrier Block	Barrier Block
Top Termination	Screws with Captive Plate	Screws with Captive Plate
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

CBPW Series

CONN BARRIER STRP 12CIRC 0.375"

Part	Wire Gauge [Min]	Wire Gauge [Max]	Features	Material - Insulation	Number of Circuits	Top Termination	Material Flammability Rating	Voltage Rating	Number of Wire Entries	Barrier Type	Operating Temperature	Mounting Type	Terminal Block Type	Bottom Termination	Color	Pitch [x]	Pitch [x]	Current Rating (Amps)	Number of Rows	Number of Wire Entries [custom]
Curtis Industries CBPW-12	12 AWG	22 AWG	Flange	Polyester Thermoplastic	12	Screws with Captive Plate	UL94 V-0	300 VDC	12	2 Wall (Dual)	140 °C	Chassis, Panel, Through Hole	Barrier Block	PC Pin	Black	9.53 mm	0.375 in	20 A	1
Curtis Industries CBPW-1	12 AWG	22 AWG	Flange	Polyester Thermoplastic	1	Screws with Captive Plate	UL94 V-0	300 VDC		2 Wall (Dual)	140 °C	Chassis, Panel, Through Hole	Barrier Block	PC Pin	Black			20 A	1	1
Curtis Industries CBPW-14	12 AWG	22 AWG	Flange	Polyester Thermoplastic	14	Screws with Captive Plate	UL94 V-0	300 VDC	14	2 Wall (Dual)	140 °C	Chassis, Panel, Through Hole	Barrier Block	PC Pin	Black	9.53 mm	0.375 in	20 A	1
Curtis Industries CBPW-10	12 AWG	22 AWG	Flange	Polyester Thermoplastic	10	Screws with Captive Plate	UL94 V-0	300 VDC	10	2 Wall (Dual)	140 °C	Chassis, Panel, Through Hole	Barrier Block	PC Pin	Black	9.53 mm	0.375 in	20 A	1
Curtis Industries CBPW-5	12 AWG	22 AWG	Flange	Polyester Thermoplastic	5	Screws with Captive Plate	UL94 V-0	300 VDC	5	2 Wall (Dual)	140 °C	Chassis, Panel, Through Hole	Barrier Block	PC Pin	Black	9.53 mm	0.375 in	20 A	1
Curtis Industries CBPW-21	12 AWG	22 AWG	Flange	Polyester Thermoplastic	21	Screws with Captive Plate	UL94 V-0	300 VDC	21	2 Wall (Dual)	140 °C	Chassis, Panel, Through Hole	Barrier Block	PC Pin	Black	9.53 mm	0.375 in	20 A	1
Curtis Industries CBPW-6	12 AWG	22 AWG	Flange	Polyester Thermoplastic	6	Screws with Captive Plate	UL94 V-0	300 VDC	6	2 Wall (Dual)	140 °C	Chassis, Panel, Through Hole	Barrier Block	PC Pin	Black	9.53 mm	0.375 in	20 A	1
Curtis Industries CBPW-9	12 AWG	22 AWG	Flange	Polyester Thermoplastic		Screws with Captive Plate	UL94 V-0	300 VDC	9	2 Wall (Dual)	140 °C	Chassis, Panel, Through Hole	Barrier Block	PC Pin	Black	9.53 mm	0.375 in	20 A	1
Curtis Industries CBPW-7	12 AWG	22 AWG	Flange	Polyester Thermoplastic	7	Screws with Captive Plate	UL94 V-0	300 VDC	7	2 Wall (Dual)	140 °C	Chassis, Panel, Through Hole	Barrier Block	PC Pin	Black	9.53 mm	0.375 in	20 A	1
Curtis Industries CBPW-16	12 AWG	22 AWG	Flange	Polyester Thermoplastic	16	Screws with Captive Plate	UL94 V-0	300 VDC	16	2 Wall (Dual)	140 °C	Chassis, Panel, Through Hole	Barrier Block	PC Pin	Black	9.53 mm	0.375 in	20 A	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.39
		10	$ 10.03

Description

General part information

CBPW Series

11 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate
