CBPW-10

Active

Curtis Industries

BLACK BARRIER TERMINAL BLOCKS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CBPW-10

Active

Curtis Industries

BLACK BARRIER TERMINAL BLOCKS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.55
LCSC	Piece	1	$ 24.46
		200	$ 9.76
		500	$ 9.44
		1000	$ 9.27

Description

General part information

CBPW Series

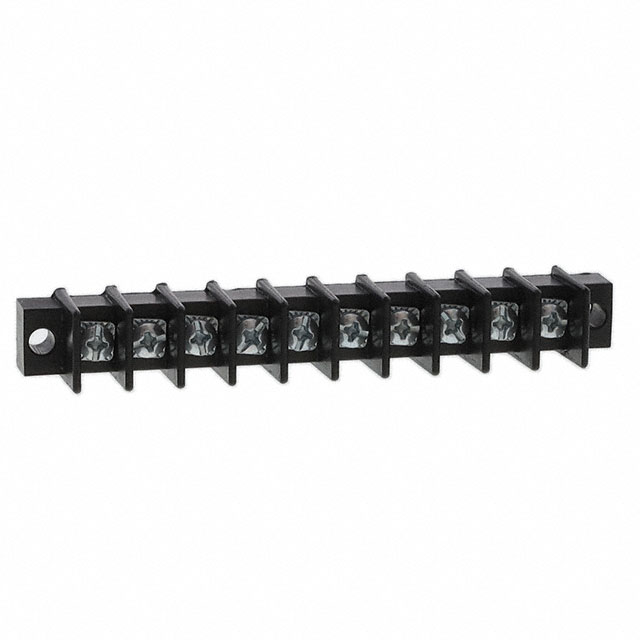

10 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate

Documents

Technical documentation and resources

Datasheet

Specification	CBPW-10	CBPW Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	PC Pin	PC Pin
Color	Black	Black
Current Rating (Amps)	20 A	20 A
Features	Flange	Flange
Material - Insulation	Polyester Thermoplastic	Polyester Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole	Chassis, Panel, Through Hole
Number of Circuits	10	1 - 24
Number of Rows	1	1
Number of Wire Entries	10	5 - 21
Number of Wire Entries	-	1
Operating Temperature	140 °C	140 °C
Pitch [x]	9.53 mm	9.53 mm
Pitch [x]	0.375 in	0.375 in
Terminal Block Type	Barrier Block	Barrier Block
Top Termination	Screws with Captive Plate	Screws with Captive Plate
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

Part

Wire Gauge [Min]

Wire Gauge [Max]

Features

Material - Insulation

Number of Circuits

Top Termination

Material Flammability Rating

Voltage Rating

Number of Wire Entries

Barrier Type

Operating Temperature

Mounting Type

Terminal Block Type

Bottom Termination

Color

Pitch [x]

Current Rating (Amps)

Number of Rows

Number of Wire Entries [custom]

Curtis Industries

CBPW-12

12 AWG

22 AWG

Flange

Polyester Thermoplastic

Screws with Captive Plate

UL94 V-0

300 VDC

2 Wall (Dual)

140 °C

Chassis, Panel, Through Hole

Barrier Block

PC Pin

Black

9.53 mm

0.375 in

20 A

Curtis Industries

CBPW-1

12 AWG

22 AWG

Flange

Polyester Thermoplastic

Screws with Captive Plate

UL94 V-0

300 VDC

2 Wall (Dual)

140 °C

Chassis, Panel, Through Hole

Barrier Block

PC Pin

Black

20 A

Curtis Industries

CBPW-14

12 AWG

22 AWG

Flange

Polyester Thermoplastic

Screws with Captive Plate

UL94 V-0

300 VDC

2 Wall (Dual)

140 °C

Chassis, Panel, Through Hole

Barrier Block

PC Pin

Black

9.53 mm

0.375 in

20 A

Curtis Industries

CBPW-10

12 AWG

22 AWG

Flange

Polyester Thermoplastic

Screws with Captive Plate

UL94 V-0

300 VDC

2 Wall (Dual)

140 °C

Chassis, Panel, Through Hole

Barrier Block

PC Pin

Black

9.53 mm

0.375 in

20 A

Curtis Industries

CBPW-5

12 AWG

22 AWG

Flange

Polyester Thermoplastic

Screws with Captive Plate

UL94 V-0

300 VDC

2 Wall (Dual)

140 °C

Chassis, Panel, Through Hole

Barrier Block

PC Pin

Black

9.53 mm

0.375 in

20 A

Curtis Industries

CBPW-21

12 AWG

22 AWG

Flange

Polyester Thermoplastic

Screws with Captive Plate

UL94 V-0

300 VDC

2 Wall (Dual)

140 °C

Chassis, Panel, Through Hole

Barrier Block

PC Pin

Black

9.53 mm

0.375 in

20 A

Curtis Industries

CBPW-6

12 AWG

22 AWG

Flange

Polyester Thermoplastic

Screws with Captive Plate

UL94 V-0

300 VDC

2 Wall (Dual)

140 °C

Chassis, Panel, Through Hole

Barrier Block

PC Pin

Black

9.53 mm

0.375 in

20 A

Curtis Industries

CBPW-9

12 AWG

22 AWG

Flange

Polyester Thermoplastic

Screws with Captive Plate

UL94 V-0

300 VDC

2 Wall (Dual)

140 °C

Chassis, Panel, Through Hole

Barrier Block

PC Pin

Black

9.53 mm

0.375 in

20 A

Curtis Industries

CBPW-7

12 AWG

22 AWG

Flange

Polyester Thermoplastic

Screws with Captive Plate

UL94 V-0

300 VDC

2 Wall (Dual)

140 °C

Chassis, Panel, Through Hole

Barrier Block

PC Pin

Black

9.53 mm

0.375 in

20 A

Curtis Industries

CBPW-16

12 AWG

22 AWG

Flange

Polyester Thermoplastic

Screws with Captive Plate

UL94 V-0

300 VDC

2 Wall (Dual)

140 °C

Chassis, Panel, Through Hole

Barrier Block

PC Pin

Black

9.53 mm

0.375 in

20 A

Part	Wire Gauge [Min]	Wire Gauge [Max]	Features	Material - Insulation	Number of Circuits	Top Termination	Material Flammability Rating	Voltage Rating	Number of Wire Entries	Barrier Type	Operating Temperature	Mounting Type	Terminal Block Type	Bottom Termination	Color	Pitch [x]	Pitch [x]	Current Rating (Amps)	Number of Rows	Number of Wire Entries [custom]
Curtis Industries CBPW-12	12 AWG	22 AWG	Flange	Polyester Thermoplastic	12	Screws with Captive Plate	UL94 V-0	300 VDC	12	2 Wall (Dual)	140 °C	Chassis, Panel, Through Hole	Barrier Block	PC Pin	Black	9.53 mm	0.375 in	20 A	1
Curtis Industries CBPW-1	12 AWG	22 AWG	Flange	Polyester Thermoplastic	1	Screws with Captive Plate	UL94 V-0	300 VDC		2 Wall (Dual)	140 °C	Chassis, Panel, Through Hole	Barrier Block	PC Pin	Black			20 A	1	1
Curtis Industries CBPW-14	12 AWG	22 AWG	Flange	Polyester Thermoplastic	14	Screws with Captive Plate	UL94 V-0	300 VDC	14	2 Wall (Dual)	140 °C	Chassis, Panel, Through Hole	Barrier Block	PC Pin	Black	9.53 mm	0.375 in	20 A	1
Curtis Industries CBPW-10	12 AWG	22 AWG	Flange	Polyester Thermoplastic	10	Screws with Captive Plate	UL94 V-0	300 VDC	10	2 Wall (Dual)	140 °C	Chassis, Panel, Through Hole	Barrier Block	PC Pin	Black	9.53 mm	0.375 in	20 A	1
Curtis Industries CBPW-5	12 AWG	22 AWG	Flange	Polyester Thermoplastic	5	Screws with Captive Plate	UL94 V-0	300 VDC	5	2 Wall (Dual)	140 °C	Chassis, Panel, Through Hole	Barrier Block	PC Pin	Black	9.53 mm	0.375 in	20 A	1
Curtis Industries CBPW-21	12 AWG	22 AWG	Flange	Polyester Thermoplastic	21	Screws with Captive Plate	UL94 V-0	300 VDC	21	2 Wall (Dual)	140 °C	Chassis, Panel, Through Hole	Barrier Block	PC Pin	Black	9.53 mm	0.375 in	20 A	1
Curtis Industries CBPW-6	12 AWG	22 AWG	Flange	Polyester Thermoplastic	6	Screws with Captive Plate	UL94 V-0	300 VDC	6	2 Wall (Dual)	140 °C	Chassis, Panel, Through Hole	Barrier Block	PC Pin	Black	9.53 mm	0.375 in	20 A	1
Curtis Industries CBPW-9	12 AWG	22 AWG	Flange	Polyester Thermoplastic		Screws with Captive Plate	UL94 V-0	300 VDC	9	2 Wall (Dual)	140 °C	Chassis, Panel, Through Hole	Barrier Block	PC Pin	Black	9.53 mm	0.375 in	20 A	1
Curtis Industries CBPW-7	12 AWG	22 AWG	Flange	Polyester Thermoplastic	7	Screws with Captive Plate	UL94 V-0	300 VDC	7	2 Wall (Dual)	140 °C	Chassis, Panel, Through Hole	Barrier Block	PC Pin	Black	9.53 mm	0.375 in	20 A	1
Curtis Industries CBPW-16	12 AWG	22 AWG	Flange	Polyester Thermoplastic	16	Screws with Captive Plate	UL94 V-0	300 VDC	16	2 Wall (Dual)	140 °C	Chassis, Panel, Through Hole	Barrier Block	PC Pin	Black	9.53 mm	0.375 in	20 A	1
