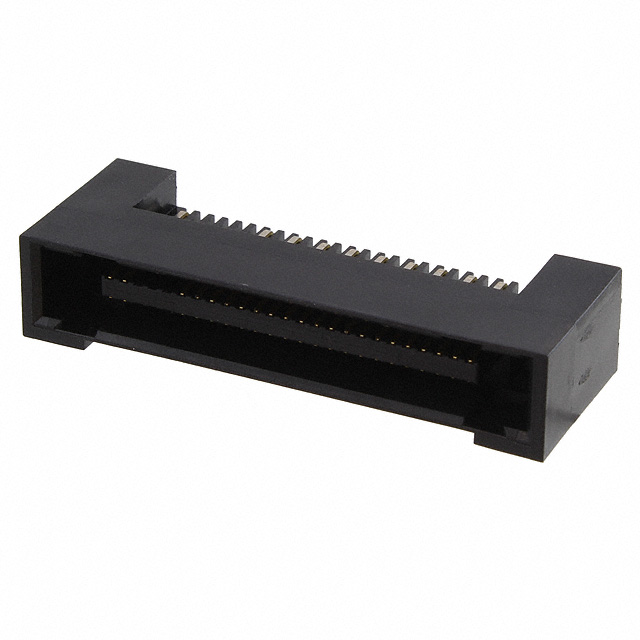

TX25-44P-LT-H1E
ObsoleteJAE Electronics
BOARD TO BOARD & MEZZANINE CONNECTORS 44P PLUG STRAIGHT
TX25-44P-LT-H1E
ObsoleteJAE Electronics
BOARD TO BOARD & MEZZANINE CONNECTORS 44P PLUG STRAIGHT
Description
General part information
TX25 Series
44 Position Connector Plug, Center Strip Contacts Through Hole, Right Angle Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | TX25-44P-LT-H1E |
|---|---|
| Connector Type | Center Strip Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 µin |
| Features | Board Lock |
| Height Above Board | 0.354 in |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 44 |
| Number of Rows | 2 |
| Pitch | 0.05 in |
