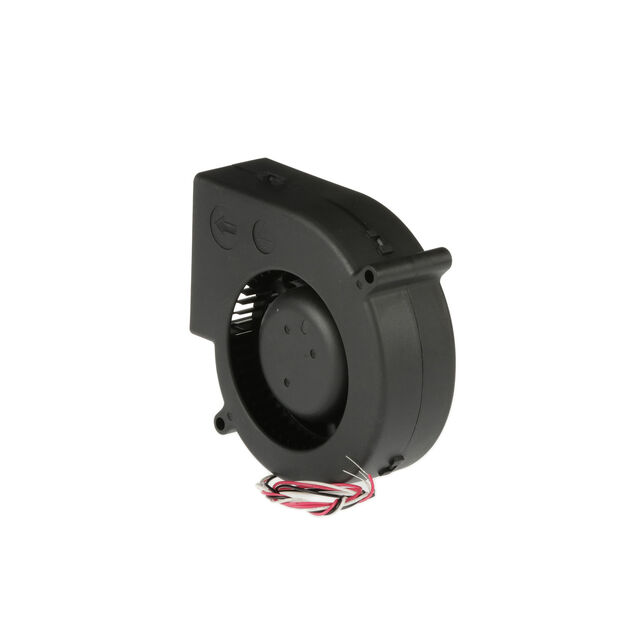

BFB1024HHX01

Obsolete

Delta Electronics

FAN BLOWER 97.2X33MM 24VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN BLOWER 97.2X33MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Static Pressure	Static Pressure	Fan Type	Width [y]	Material - Frame	Features	RPM	Lifetime @ Temp.	Approval Agency	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Current Rating (Amps)	Weight	Weight	Termination	Noise	Material - Blade	Voltage - Rated	Air Flow	Air Flow	Bearing Type	Voltage Range [Max]	Voltage Range [Min]	Size / Dimension [y]	Size / Dimension [x]
Delta Electronics BFB1024HHX01	323.6 Pa	1.299 in H2O	Blower	33 mm	Plastic	Locked Rotor Sensor	4000 RPM	50000 Hrs	CE CSA UL VDE	13.2 W	-10 °C	-10 °C	60 °C	60 °C	0.55 A	160.12 g	0.353 lb	3 Wire Leads	55 dB	Plastic	24 VDC	28.3 CFM	0.792 m³/min	Ball	27.6 VDC	7 V	94.4 mm	97.2 mm
Delta Electronics BFB1024H	249.1 Pa	1 in H2O	Blower	33 mm	Plastic		3600 RPM	50000 Hrs	CE CSA UL VDE	9.6 W	-10 °C	-10 °C	60 °C	60 °C	400 mA	160.12 g	0.353 lb	2 Wire Leads	52 dB	Plastic	24 VDC	25.4 CFM	0.711 m³/min	Ball	27.6 VDC	7 V	94.4 mm	97.2 mm
Delta Electronics BFB1024HH	323.6 Pa	1.299 in H2O	Blower	33 mm	Plastic		4000 RPM	70000 Hrs	CE CSA UL VDE	13.2 W	-10 °C	-10 °C	60 °C	60 °C	0.55 A	160.12 g	0.353 lb	2 Wire Leads	55 dB	Plastic	24 VDC	28.3 CFM	0.792 m³/min	Ball	27.6 VDC	7 V	94.4 mm	97.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 24VDC Rectangular/Rounded - 97.2mm L x 94.4mm H Ball 28.3 CFM (0.792m³/min) 3 Wire Leads
