Z0410NF 1AA2

Active

STMicroelectronics

TRIAC 800V 4A TO202-3

Search across all available documentation for this part.

Active

STMicroelectronics

TRIAC 800V 4A TO202-3

Technical Specifications

Parameters and characteristics for this part

Specification	Z0410NF 1AA2

Configuration	Single
Current - Gate Trigger (Igt) (Max) [Max]	25 mA
Current - Hold (Ih) (Max) [Max]	25 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	20 A, 21 A
Current - On State (It (RMS)) (Max) [Max]	4 A
Mounting Type	Through Hole
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C

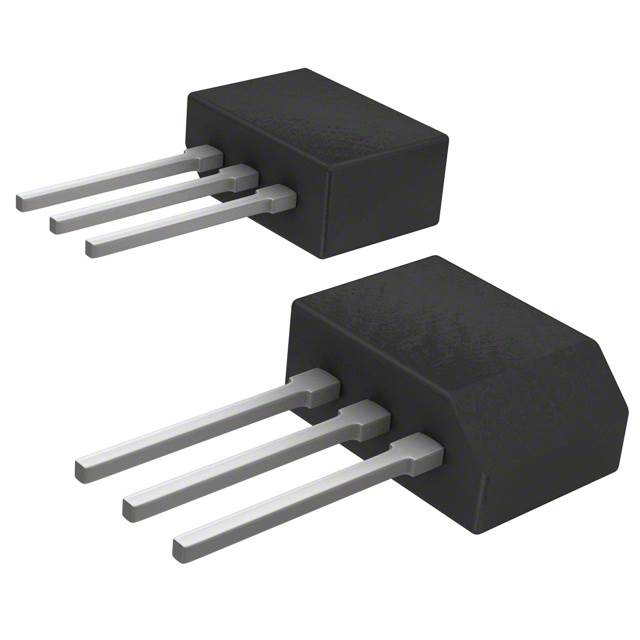

Package / Case	TO-202 No Tab
Supplier Device Package	TO-202-3
Triac Type	Standard
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.3 V
Voltage - Off State	800 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

TRIAC 800V 4A TO202-3

Part	Voltage - Gate Trigger (Vgt) (Max) [Max]	Supplier Device Package	Current - Gate Trigger (Igt) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	Package / Case	Configuration	Current - Non Rep. Surge 50, 60Hz (Itsm)	Triac Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Hold (Ih) (Max) [Max]	Voltage - Off State	Mounting Type
STMicroelectronics Z0410NF 1AA2	1.3 V	TO-202-3	25 mA	4 A	TO-202 No Tab	Single	20 A, 21 A	Standard	-40 °C	125 ¯C	25 mA	800 V	Through Hole

General part information

TRIAC Standard 800 V 4 A Through Hole TO-202-3
