926790-6

Active

TE Connectivity AMP Connectors

CONN QC RCPT 13.5-17AWG 0.250

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC RCPT 13.5-17AWG 0.250

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	926790-6	926790 Series

Contact Finish	Tin	Tin
Contact Material	Brass	Phosphor Bronze, Brass
Gender	Female	Female
Insulation	Non-Insulated	Non-Insulated
Insulation Diameter	4.29 mm, 3 mm	3 - 4.29 mm
Insulation Diameter [Max]	0.169 in	0.169 in
Insulation Diameter [Min]	0.118 in	0.118 in
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Tab Thickness	0.032 in	0.032 in
Tab Thickness	0.81 mm	0.81 mm
Tab Width	6.35 mm	6.35 mm
Tab Width	0.25 in	0.25 in
Terminal Type	Flag, Angled - 90°	Flag, Angled - 90°
Termination	Crimp	Crimp
Wire Gauge [Max]	17 AWG	17 AWG
Wire Gauge [Min]	14 AWG	14 AWG

CONN QC RCPT 13.5-17AWG 0.250

Part	Insulation	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter	Gender	Wire Gauge [Min]	Wire Gauge [Max]	Terminal Type	Tab Width	Tab Width	Contact Finish	Mounting Type	Contact Material	Tab Thickness	Tab Thickness	Termination
TE Connectivity AMP Connectors 926790-1	Non-Insulated	0.169 in	0.118 in	3 mm, 4.29 mm	Female	14 AWG	17 AWG	Angled - 90°, Flag	6.35 mm	0.25 in	Tin	Free Hanging (In-Line), Right Angle	Phosphor Bronze	0.032 in	0.81 mm	Crimp
TE Connectivity AMP Connectors 926790-6	Non-Insulated	0.169 in	0.118 in	3 mm, 4.29 mm	Female	14 AWG	17 AWG	Angled - 90°, Flag	6.35 mm	0.25 in	Tin	Free Hanging (In-Line), Right Angle	Brass	0.032 in	0.81 mm	Crimp
TE Connectivity AMP Connectors 926790-4	Non-Insulated	0.169 in	0.118 in	3 mm, 4.29 mm	Female	14 AWG	17 AWG	Angled - 90°, Flag	6.35 mm	0.25 in	Tin	Free Hanging (In-Line), Right Angle	Brass	0.032 in	0.81 mm	Crimp
TE Connectivity AMP Connectors 926790-3	Non-Insulated	0.169 in	0.118 in	3 mm, 4.29 mm	Female	14 AWG	17 AWG	Angled - 90°, Flag	6.35 mm	0.25 in	Tin	Free Hanging (In-Line), Right Angle	Phosphor Bronze	0.032 in	0.81 mm	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

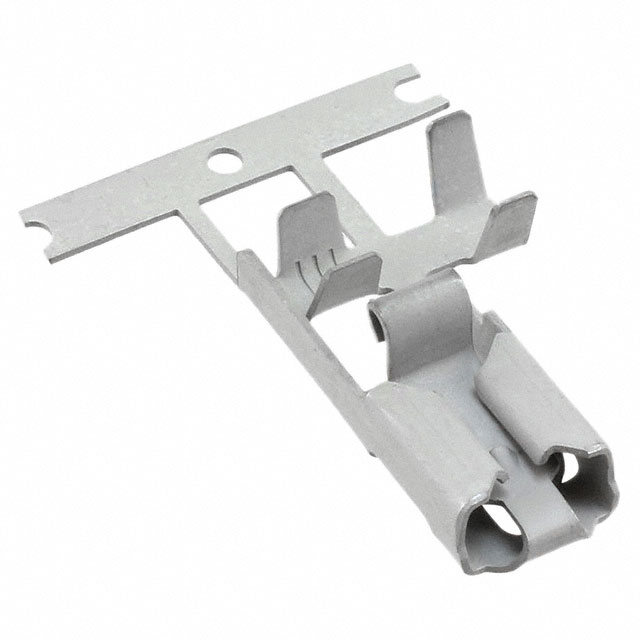

0.250" (6.35mm) Quick Connect Female 13.5-17 AWG Crimp Connector Non-Insulated

Technical documentation and resources
