IO-XLR5-F-BK
ActiveIO Audio Technologies

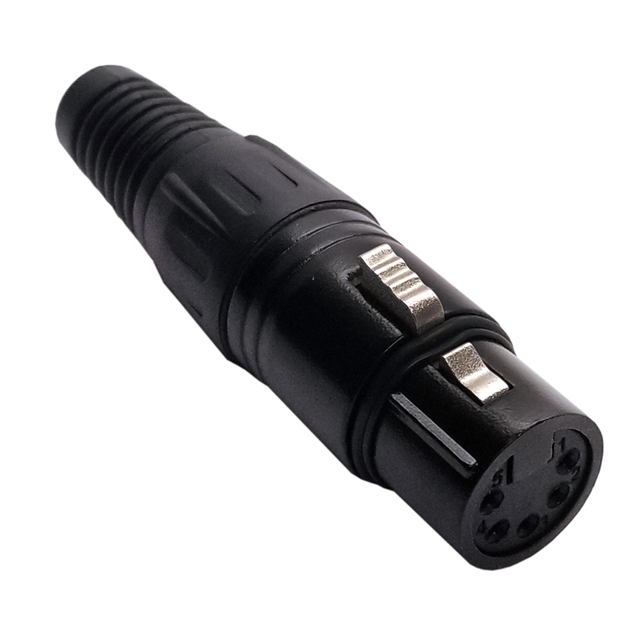

XLR CONNECTOR, 5 CONTACTS, JACK, CABLE MOUNT, SILVER PLATED CONTACTS, ZINC BODY
Deep-Dive with AI
Search across all available documentation for this part.
IO-XLR5-F-BK
ActiveIO Audio Technologies
XLR CONNECTOR, 5 CONTACTS, JACK, CABLE MOUNT, SILVER PLATED CONTACTS, ZINC BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | IO-XLR5-F-BK | IO-XLR5 Series |
|---|---|---|
| Applications | Audio | Audio, Video, Lighting Control, Medical, Audio, Lighting Control |
| Backshell Material, Plating | Zinc Die Cast | Zinc Die Cast |
| Color | Black | Silver, Black |
| Connector Type | Female Sockets, Plug | Receptacle, Male Pins, Receptacle, Female Sockets, Female Sockets, Plug |
| Contact Finish - Mating | Silver | Silver, Gold |
| Contact Finish Thickness - Mating | - | 1.97 Áin |
| Contact Finish Thickness - Mating | - | 0.05 Ám |
| Contact Material | Phosphor Bronze | Phosphor Bronze, Brass |
| Current Rating (Amps) | 7.5 A | 3 - 7.5 A |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Strain Relief, Backshell | Ground, Board Lock, Board Guide, Strain Relief, Backshell |
| Insert Material | - | Nylon, Polyamide (PA), Plastic |
| Material Flammability Rating | - | UL94 HB |
| Mounting Feature | - | Flange |
| Mounting Type | Free Hanging (In-Line) | Through Hole, Right Angle, Panel Mount, Free Hanging (In-Line) |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 70 °C |
| Orientation | - | Keyed |
| Primary Material | Metal | Metal, Plastic |
| Shell Finish | - | Nickel, Black |
| Shell Material | Zinc Die Cast | Zinc Die Cast |
| Shell Size - Insert | XLR | XLR |
| Shielding | Unshielded | Shielded, Unshielded |
| Termination | - | Solder |
| Voltage Rating | 1500 VAC | 50 - 1500 VAC |
IO-XLR5 Series
CONN RCPT MALE XLR 5P SOLDER CUP
| Part | Current Rating (Amps) | Shielding | Mounting Feature | Features | Voltage Rating | Shell Material | Orientation | Contact Finish - Mating | Applications | Connector Type | Primary Material | Color | Fastening Type | Insert Material | Shell Finish | Contact Material | Shell Size - Insert | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Backshell Material, Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IO Audio Technologies IO-XLR5-M-JLX | 7.5 A | Shielded | Flange | Ground | 125 VAC | Zinc Die Cast | Keyed | Silver | Audio, Lighting Control, Medical, Video | Male Pins, Receptacle | Metal | Silver | Latch Lock | Nylon, Polyamide (PA) | Nickel | Phosphor Bronze | XLR | ||||||||
IO Audio Technologies IO-XLR5-F-JLX | 7.5 A | Shielded | Flange | Ground | 125 VAC | Zinc Die Cast | Keyed | Silver | Audio, Lighting Control, Medical, Video | Receptacle, Female Sockets | Metal | Silver | Latch Lock | Nylon, Polyamide (PA) | Nickel | Phosphor Bronze | XLR | ||||||||
IO Audio Technologies IO-XLR5-M-BH | 3 A | Unshielded | Flange | Board Guide, Board Lock, Ground | 50 VAC | Keyed | Gold | Audio, Lighting Control | Male Pins, Receptacle | Plastic | Black, Silver | Latch Lock | Nylon, Polyamide (PA) | Brass | XLR | Panel Mount, Right Angle, Through Hole | -40 °C | 70 °C | Solder | 1.97 Áin | 0.05 Ám | UL94 HB | |||
IO Audio Technologies IO-XLR5-M-EV | Unshielded | Flange | Board Guide, Ground | Keyed | Gold | Audio, Lighting Control, Medical, Video | Male Pins, Receptacle | Plastic | Black | Latch Lock | Nylon, Polyamide (PA) | Brass | XLR | Panel Mount, Through Hole | Solder | ||||||||||
IO Audio Technologies IO-XLR5-F-BKAU | 7.5 A | Unshielded | Backshell, Strain Relief | 125 VAC | Zinc Die Cast | Gold | Audio, Lighting Control | Female Sockets, Plug | Metal | Black | Latch Lock | Plastic | Phosphor Bronze | XLR | Free Hanging (In-Line) | 1.97 Áin | 0.05 Ám | Zinc Die Cast | |||||||
IO Audio Technologies IO-XLR5-M-BK | 7.5 A | Unshielded | Backshell, Strain Relief | 1500 VAC | Zinc Die Cast | Silver | Audio | Male Pins, Receptacle | Metal | Black | Latch Lock | Phosphor Bronze | XLR | Free Hanging (In-Line) | Zinc Die Cast | ||||||||||
IO Audio Technologies IO-XLR5-F-BH | 3 A | Unshielded | Flange | Board Guide, Board Lock, Ground | 50 VAC | Keyed | Gold | Audio, Lighting Control | Receptacle, Female Sockets | Plastic | Black, Silver | Latch Lock | Nylon, Polyamide (PA) | Brass | XLR | Panel Mount, Right Angle, Through Hole | -40 °C | 70 °C | Solder | 1.97 Áin | 0.05 Ám | UL94 HB | |||
IO Audio Technologies IO-XLR5-M-JL | 7.5 A | Shielded | Flange | Ground | 125 VAC | Zinc Die Cast | Keyed | Silver | Audio, Lighting Control, Medical, Video | Male Pins, Receptacle | Metal | Silver | Latch Lock | Nylon, Polyamide (PA) | Nickel | Phosphor Bronze | XLR | ||||||||
IO Audio Technologies IO-XLR5-F-EV | Unshielded | Flange | Board Guide, Ground | Keyed | Gold | Audio, Lighting Control, Medical, Video | Receptacle, Female Sockets | Plastic | Black | Latch Lock | Nylon, Polyamide (PA) | Brass | XLR | Panel Mount, Through Hole | Solder | ||||||||||
IO Audio Technologies IO-XLR5-M-EH | Unshielded | Flange | Board Guide, Ground | Keyed | Gold | Audio, Lighting Control, Medical, Video | Male Pins, Receptacle | Plastic | Black | Latch Lock | Nylon, Polyamide (PA) | Brass | XLR | Panel Mount, Right Angle, Through Hole | Solder |
